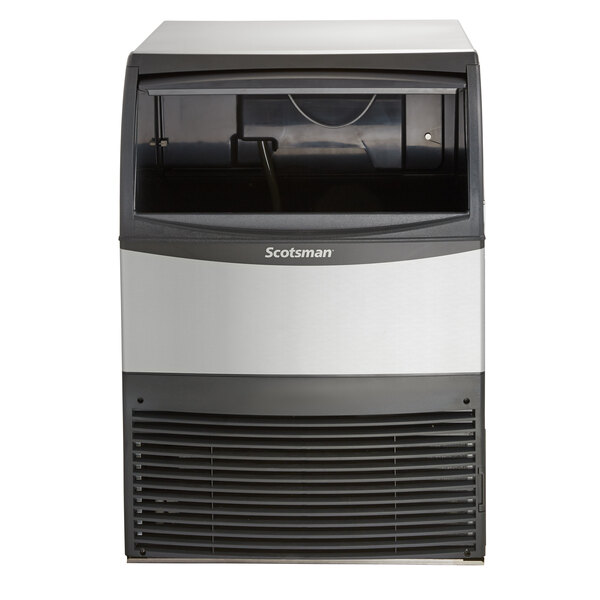

Scotsman UN324AX-1A 24" Air-Cooled Undercounter Nugget Ice Machine with 80 lb. Bin and ADA-Compliant Floor Mount Kit - 340 lb., 115V

Item number  720xun3241ada

$5,801.00/Each

Accessories & Options

What We Offer

shield icon

Protect Your Product

Coverage starting at $164.55

Earn up to $174.03 back (17,403 points)with a Webstaurant Rewards Visa® Credit Card

Quick Shipping

Usually ships in 1 business day

Product Overview

  • Produces up to 340 lb. of nugget ice per day and stores up to 80 lb.
  • 24" wide to fit in tight spaces
  • Easy to use with an intuitive control panel
  • Unit-specific QR code makes it easy to access documents and warranty history
  • Included floor mount kit lowers machine height to 33 1/2" to fit beneath ADA-height countertops

UPC Code:400017965123

Works With

  • Noble 1 pt. / 16 oz. Arctic Ice Machine Cleaner

    Noble 1 pt. / 16 oz. Arctic Ice Machine Cleaner

    $7.29/Each

  • Noble 1 Pint / 16 oz. QuikSan Nickel-Safe Concentrated Ice Machine Sanitizer - 12/Case

    Noble 1 Pint / 16 oz. QuikSan Nickel-Safe Concentrated Ice Machine Sanitizer - 12/Case

    $98.49/Case

  • C Pure Oceanloch+ L Water Filtration System with Oceanloch+ L Cartridge 1 Micron Rating and 1.67 GPM

    C Pure Oceanloch+ L Water Filtration System with Oceanloch+ L Cartridge 1 Micron Rating and 1.67 GPM

    $214.99/Each

  • Noble Arctic Concentrated Ice Machine Cleaner

    Noble Arctic Concentrated Ice Machine Cleaner

    $8.49/Each

  • Everpure CD385 Oxidice Ice Machine Ozone Disinfecting System

    Everpure CD385 Oxidice Ice Machine Ozone Disinfecting System

    $741.45/Each

  • Scotsman 19-0653-01 Clear 16 oz. Liquid Scale Remover Concentrate

    Scotsman 19-0653-01 Clear 16 oz. Liquid Scale Remover Concentrate

    $30.40/Each

  • Scotsman 19-0664-12 Pre-Mixed 16 oz. Liquid Scale Remover

    Scotsman 19-0664-12 Pre-Mixed 16 oz. Liquid Scale Remover

    $49.25/Each

Specs

Quantity
1/Each
Shipping Weight
253 lb.
Width
24 Inches
Depth
28 1/2 Inches
Height
33 1/2 - 39 Inches
Amps
15 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
115 Volts
24 Hour Ice Yield
340 Pounds
Ambient Temperature Range
50 - 100 Degrees F
Bin Storage Capacity
80 lb.
Condenser Type
Air Cooled
Features
ADA Compliant Made in America
Ice Type
Chewable Nugget
Included

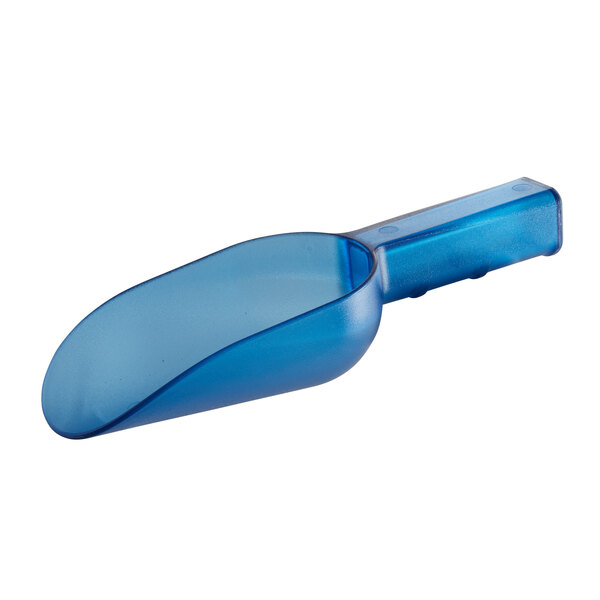

Scoop
Installation Type
Undercounter
Plug Type
NEMA 5-15P
Power Usage
4.92 kWh per 100 lbs.
Refrigerant Type
R-290
Type
Ice Machines with Bins
Water Inlet Size
3/8 Inches
Water Pressure Range
15 - 80 PSI
Water Temperature Range
40 - 100 Degrees F
Water Usage
12 Gallons Per 100 lbs.

Details

If you need a reliable supply of ice but have limited space, this Scotsman undercounter nugget ice machine is a great choice! This machine provides a 24-hour yield of 340 lb. of soft, chewable nugget ice. It can store up to 80 lb. of ice at a time in the built-in ice bin with a convenient sliding access door. Plus, it comes with an ice scoop to easily retrieve ice. At only 24" wide, this unit will fit in nearly any space. It operates using a self-contained, air-cooled condenser, and it is front-breathing for flexible installation. It includes a KUFM24 floor mount kit to secure the machine to the floor and reduce its height to 33 1/2", allowing for installation underneath ADA-height countertops.

This ice machine produces chewable nugget ice rather than solid cubes. This nugget ice is soft, melts more slowly than other types of ice, and cools beverages quickly. It is great for use in healthcare settings, retirement communities, or any beverage service operation.

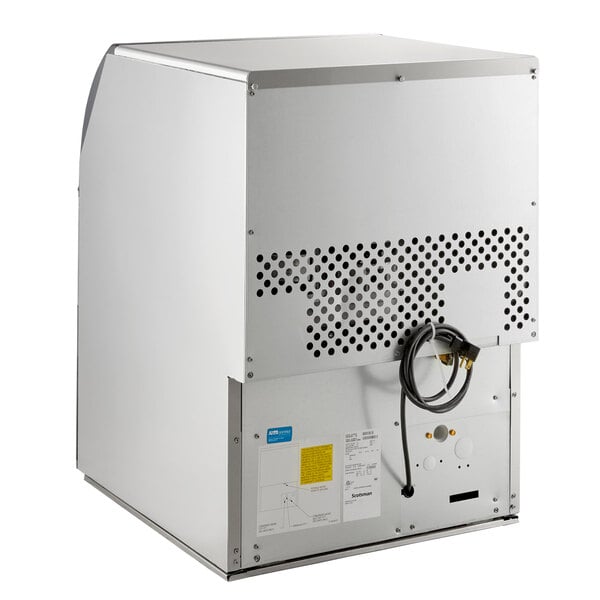

This compact unit is easy to operate with an intuitive control panel. It has a greaseless bearing and stainless steel evaporator for maximum durability and reduced maintenance. The external air filter is easily accessible from the front of the machine to simplify cleaning. This ice machine includes a unit-specific QR code that instantly connects users to warranty and service information. It runs on R-290 refrigerant and requires a 115V electrical connection for operation. A power cord is included.

Kit Includes:
- Scotsman ice machine (Item 720UN324AX)
- Floor mount kit (Item 720KUFM24)

Overall Dimensions:
Width: 24"
Depth: 28 1/2"
Height: 39"
Height (with Floor Mount Kit): 33 1/2"
Bin Capacity: 80 lb.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents:
  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • 3/8" Water Connection

    3/8" Water Connection

    This unit comes with a 3/8" water connection for water supply.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • ADA Compliant

    ADA Compliant

    This item meets criteria established by the Americans with Disabilities Act (ADA).

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

By using this AI-powered search, you agree to our Terms of UseOpens in new tab and Privacy PolicyOpens in new tab.

Frequently Asked Questions From Customers

I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?
R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.
