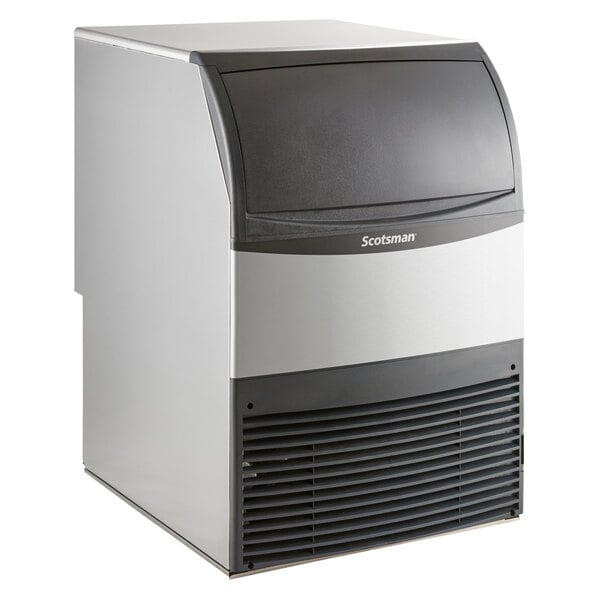

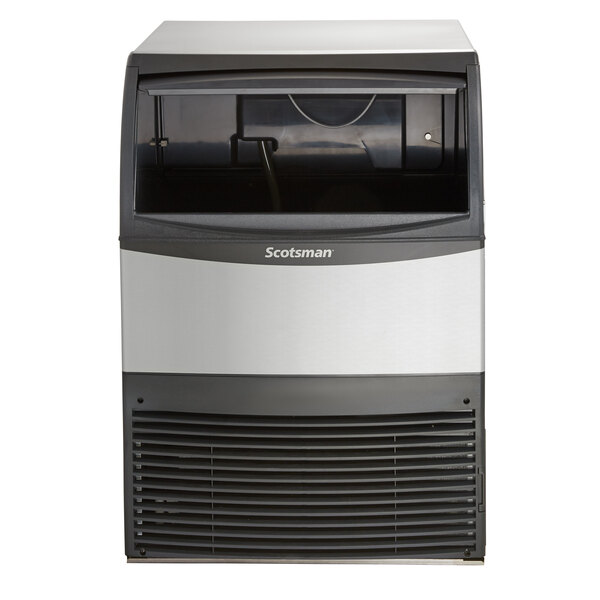

Scotsman UF424AX-1A 24" Air-Cooled Undercounter Flake Ice Machine with 80 lb. Bin and ADA-Compliant Floor Mount Kit - 440 lb., 115V
Item number 720xuf4241ada
Works With
$5,689.00/Each
Earn up to $170.67 back (17,067 points)with a Webstaurant Rewards Visa® Credit Card
Quick Shipping
Usually ships in 1 business day
Product Overview
- Produces up to 440 lb. of flake ice per day and stores up to 80 lb.
- 24" wide to fit in tight spaces
- Easy to use with an intuitive control panel
- Unit-specific QR code makes it easy to access documents and warranty history
- Included floor mount kit lowers machine height to 33 1/2" to fit beneath ADA-height countertops
UPC Code:400017965116
Works With
- Quantity
- 1/Each
- Shipping Weight
- 244 lb.
- Width
- 24 Inches
- Depth
- 28 1/2 Inches
- Height
- 33 1/2 - 39 Inches
- Amps
- 15 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- 24 Hour Ice Yield
- 440 Pounds
- Ambient Temperature Range
- 50 - 100 Degrees F
- Bin Storage Capacity
- 80 lb.
- Condenser Type
- Air Cooled
- Features
- ADA Compliant Made in America
- Ice Type
- Flake Ice
- Included

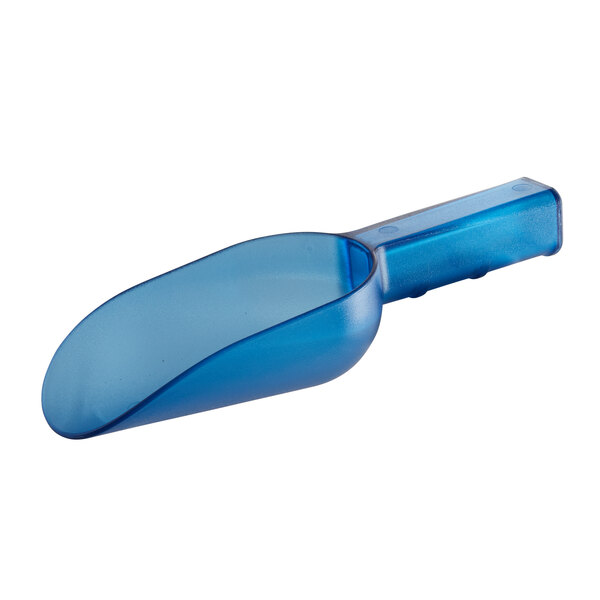

- Scoop
- Installation Type
- Undercounter
- Plug Type
- NEMA 5-15P
- Power Usage
- 4.2 kWh per 100 lbs.
- Refrigerant Type
- R-290
- Type
- Ice Machines with Bins
- Water Inlet Size
- 3/8 Inches
- Water Pressure Range
- 15 - 80 PSI
- Water Temperature Range
- 40 - 100 Degrees F
- Water Usage
- 12 Gallons Per 100 lbs.
Details

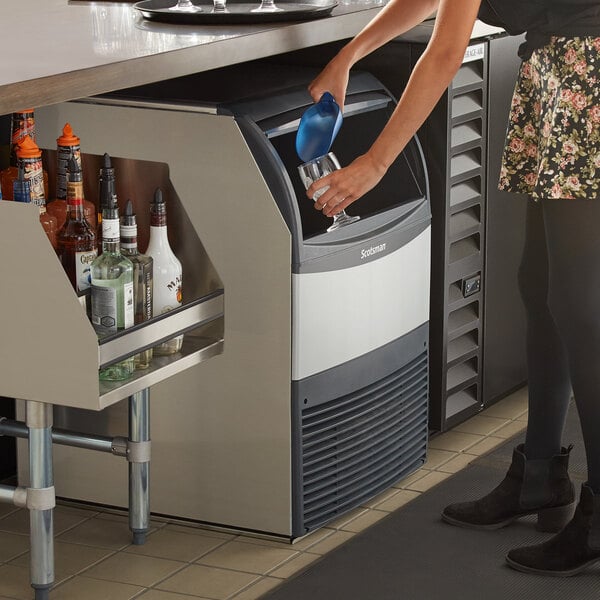

If you need a reliable supply of ice but have limited space, this Scotsman undercounter flake ice machine is a great choice! This machine provides a 24-hour yield of 440 lb. of soft, flake ice. It can store up to 80 lb. of ice at a time in the built-in ice bin with a convenient sliding access door. Plus, it comes with an ice scoop to easily retrieve ice. At only 24" wide, this unit will fit in nearly any space. It operates using a self-contained, air-cooled condenser, and it is front-breathing for flexible installation. It includes a KUFM24 floor mount kit to secure the machine to the floor and reduce its height to 33 1/2", allowing for installation underneath ADA-height countertops.
This unit produces flake ice rather than solid cubes. Due to its shape and size, flake ice easily conforms to the shape of any container to surround food and beverages! It also chills more quickly than other ice forms, making it an excellent choice for cooling foods at seafood counters, produce displays, and salad bars. Its soft and easy to chew texture is also great for healthcare settings.

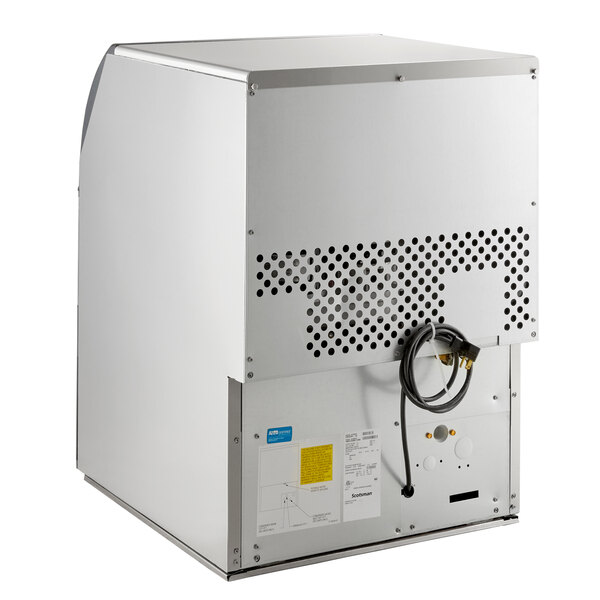

This compact unit is easy to operate with an intuitive control panel. It has a greaseless bearing and stainless steel evaporator for maximum durability and reduced maintenance. The external air filter is easily accessible from the front of the machine to simplify cleaning. This ice machine includes a unit-specific QR code that instantly connects users to warranty and service information. It runs on R-290 refrigerant and requires a 115V electrical connection for operation. A power cord is included.
Kit Includes:
- Scotsman ice machine (Item 720UF424AX)
- Floor mount kit (Item 720KUFM24)
Overall Dimensions:
Width: 24"
Depth: 28 1/2"
Height: 39"
Height (with Floor Mount Kit): 33 1/2"
Bin Capacity: 80 lb.
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

5-15P
This unit comes with a NEMA 5-15P plug.

3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.

Made in America
This item was made in the United States of America.

ADA Compliant
This item meets criteria established by the Americans with Disabilities Act (ADA).
