MainStreet Equipment CHP-1836I Full Size Insulated Heated Holding / Proofing Cabinet with Clear Door - 120V

Item number  541chp1836i

Regularly

$1,119.00/Each

$998.88/Each

What We Offer

shield icon

Protect Your Product

Coverage starting at $89.99

Earn up to $33.57 back (3,357 points)with a Webstaurant Rewards Visa® Credit Card

Quick Shipping

Usually ships in 1 business day

Product Overview

  • Full size insulated design holds up to 36 full size sheet pans; 1 1/2" of clearance between slides
  • Heat mode with 9 adjustable settings up to 185 degrees Fahrenheit
  • Proof mode adjusts humidity between 30% and 100% up to 115 degrees Fahrenheit
  • Integrated easy-to-read LED display on removable bottom control drawer
  • 120V, 1,575W

UPC Code:400015147798

Works With

Keep food hot and proof dough with this MainStreet Equipment CHP-1836I full size insulated heated holding / proofing cabinet with a clear door!

This MainStreet Equipment CHP-1836I full size insulated heated holding / proofing cabinet is great for keeping ready-to-serve foods hot and ensuring your restaurant, diner, or bakery is always prepared for high volume meal periods. With a proofing mode and adjustable humidity settings from 30% to 100%, you can also proof dough before it's ready to bake. Plus, the insulated design locks in your holding temperature, saving up to 35% on energy costs compared to a non-insulated unit.

  • NSF Certified

    NSF Certified

    This item is certified by NSF to applicable standards.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • UL Certified

    UL Certified

    This product is certified to applicable standards and requirements by UL Solutions.

Optimal Control

This unit also includes an easy-to-read thermometer for effortless temperature monitoring, and a pair of dials on the bottom control drawer for easy operation. Plus, the control dials are removable for quick cleaning. A simple toggle switch is also included, to let you select between the "heat" and "proof" modes.

Easy Transport

Thanks to four 5" poly casters, this cabinet can be filled and moved from your prep location to the serving area with incredible ease.

Efficient Capacity

With 36 lip-load pan slides that hold 18" x 26" sheet pans, this unit has ample space to hold your dishes at the perfect temperature.

Corner Bumpers

The integrated corner bumpers will protect your nearby walls and equipment while you're moving the unit from one location to the next.

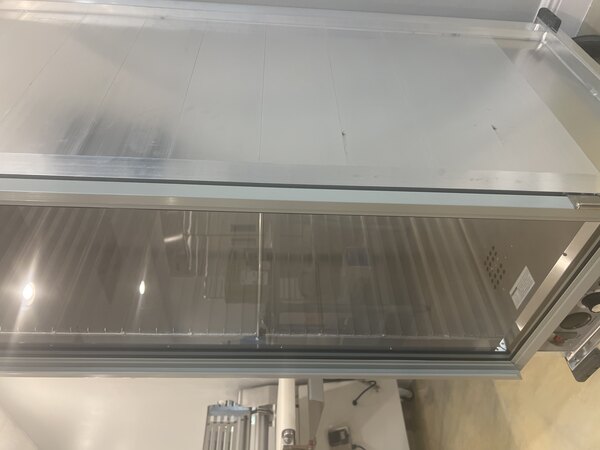

Clear Door for Maximum Visibility

A Lexan clear door provides outstanding impact and heat-resistance as well as allowing for easy monitoring of the contents inside. For valuable temperature protection, the door is paired with both magnets and a tight-fitting gasket to ensure the door is always shut correctly and the warm air inside does not escape.

Versatile Settings

Boasting nine adjustable holding settings and a heat mode that can reach 185 degrees Fahrenheit, this cabinet is perfect for storing ready-to-serve dishes. Or, operators can use the unit's integrated proofing mode for operation at a lower temperature (up to 115 degrees Fahrenheit) in order to proof bread before it's ready to bake.


Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

By using this AI-powered search, you agree to our Terms of UseOpens in new tab and Privacy PolicyOpens in new tab.

Frequently Asked Questions From Customers

How does ambient room temperature influence the performance of this cabinet?
Ambient room temperature can affect the temperature of your food product at holding / proofing. Due to differences in ambient room temperature, you may need to monitor the proofing process and / or adjust the proofing temperature and humidity settings of your heated holding / proofing cabinet to achieve the desired results. You may also need to adjust the temperature of the water used to produce steam.

In proofing mode, once steam is generated from the water contained in the bottom water pan, adjustments can be made to release heat in order to reach the desired temperature. If you are trying to proof at low temperatures, the desired proofing temperature must be warmer than the ambient temperature in your kitchen.

This heated holding / proofing cabinet operates at the following temperatures in heat and proof modes:

Heat Mode: 80° – 185° Fahrenheit
Proof Mode: 85° – 115° Fahrenheit (30-100% Humidity)
For effective heat retention and moisture resistance, this unit is insulated with Extruded Polystyrene (XPS). XPS is less prone to molding, providing a longer life for your unit.
The numbered settings on the cabinet correspond to approximate temperature and humidity ranges to help you dial in holding or proofing conditions. Below are the estimated values for each level. These ranges are approximate and may vary depending on operating conditions, but they provide a guide when adjusting your cabinet for different products or applications.

Temperature Settings (1–9):
1–2: ~70° Fahrenheit (21°Celsius), ambient temperature
3: ~80° Fahrenheit
4: ~95° Fahrenheit
5: ~110° Fahrenheit
6: ~145° Fahrenheit
7: ~165° Fahrenheit
8: ~180° Fahrenheit
9: ~190° Fahrenheit

Humidity Settings (1–9):
1: ~30%
2: ~40%
3: ~50%
4: ~60%
5: ~70%
6: ~85%
7: ~90%
8: ~95%
9: ~99%
The proofing function of this cabinet works best when it’s filled to near maximum capacity. A greater amount of dough will absorb excess humidity, keeping the cabinet temperature at the lower range.
Insulated and non-insulated holding cabinets both offer the same function by holding food at safe temperatures for hours until ready to serve, but for best results it's important to make a purchase based on your desired application. Non-Insulated Holding Cabinets are intended for applications where the doors will be closed for the majority of the day, such as proofing bread or keeping back-up portions hot. Insulated Holding Cabinets are better suited for keeping food hot when the doors will be opened and closed much more frequently, since they are better equipped at retaining the heat.

Compare to Other Products


Overall Dimensions:
Width:
22 11/16 Inches
Depth:
32 5/8 Inches
Height:
67 1/2 Inches
Interior Dimensions:
Interior Width:
18 3/16 Inches
Interior Depth:
27 1/8 Inches
Interior Height:
53 13/16 Inches
Lip Load Capacity:
100 lb.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents:

Need Parts & Accessories?

Shop replacement parts and accessories for this item today!

Find Parts for this Item

Customer Reviews

3.7

Rated 3.7 out of 5 stars

7 Customer Reviews

Customers Say

Customers say this unit is useful for keeping food warm and for proofing dough. Many find it convenient and easy to use. Some mention issues with heat retention and reliability. Experiences with delivery and warranty vary. Overall, opinions differ on long-term performance, but most agree it serves its main purpose well.

  • unit
  • cabinet
  • days
  • dough
  • food
  • handy
  • heat
  • insulated
  • keeps
  • love

This AI-generated summary was created from real customer reviews

Showing 7 of 7 reviews
Review by

Jonell B.

Posted on 07/27/2024

Verified Purchase

Rated 5 out of 5 stars
Style:
Non-Insulated

I LOVE this proofer! We use it to raise our sour dough and yeast dough products. It is so handy to speed up the proofing process and also is very handy in storing items or prepping room temp ingredients for storage over night. Closing them into the unit keeps all items in a secure area overnight.

We're glad you've enjoyed this proofing cabinet, Jonell! However, we do not recommend storing ingredients inside the proofing cabinet.

Review by

Karen R.

Posted on 04/24/2025

Verified Purchase

Rated 5 out of 5 stars
Style:
Insulated

We have had this heating cabinet for over two years and have really enjoyed it. We haven't had any issues and it has kept our food hot and ready to go.

Review by

Raymond P.

Posted on 03/12/2026

Verified Purchase

Rated 4 out of 5 stars
Style:
Insulated

We love the unit. Didn't like waiting a week for it. Our church uses it to keep food warm for special events. Works great. Unit got to us the day before the conference started. You advertise 1 to 2 days.

Review by

Dos A.

Posted on 01/12/2026

Verified Purchase

Rated 2 out of 5 stars
Style:
Insulated

The unit keeps tripping the GFCI outlet. it carries only a 6 month warranty, so we're now at 6 months and 23 days out of warranty. Not covered.

Thank you for your review! Our Customer Solutions team has been in contact with you - if you have any further questions or concerns on this order, we are happy to assist!

Review by

Wenie G.

Posted on 01/08/2026

Verified Purchase

Rated 1 out of 5 stars
Style:
Insulated

This equipment was delivered to my bakery on 12/08/2025 On 01/07/2026, this Mainstreet proofing cabinet has burnt smell and the unit cannot turn on.

Thank you for your review, Wenie! We would like to gather more information about your experience with this proofing cabinet. A Customer Solutions Representative will contact you soon!

Review by

Aaron S.

Posted on 12/30/2025

Verified Purchase

Rated 5 out of 5 stars
Style:
Insulated

Review by

Nina's D.

Posted on 10/08/2025

Verified Purchase

Rated 4 out of 5 stars
Style:
Non-Insulated

Does the job well. But it looses a lot of heat as it is not insulated. I added a foam foil to the walls, and it retains more heat now. It is really meant for stacking next to each other. Insulated ones at the ends.
