Product Overview
- Produces up to 213 lb. of crescent shaped ice cubes per day and stores up to 80 lb.
- Protected by H-GUARD Plus antimicrobial agent for safety and sanitation
- EverCheck alert system and CycleSaver design for energy efficiency
- KM Edge design rinses out most minerals and impurities, resulting in crystal clear cubes
- 115V; 1 Phase; 6" legs
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.

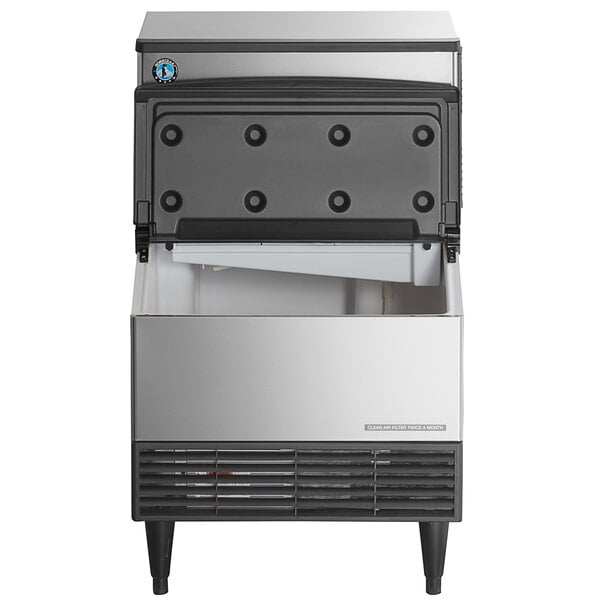

Easily produce up to 213 lb. of ice per day with this Hoshizaki KM-231BAJ 24" air cooled undercounter crescent cube ice machine with 80 lb. bin.
Designed to produce great tasting ice at an efficient rate, this unit combines reliability with top notch energy saving capabilities. Plus, with the ability to produce up to 213 lb. of crescent shaped ice cubes per day and store up to 80 lb., it is the perfect addition to your bar or restaurant.
ADA Compliant
This item meets criteria established by the Americans with Disabilities Act (ADA).
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
ARI / AHRI
This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.
UL Certified
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for safe use. Refer to the Enhanced UL Mark in this product's documentation for more details.
1/4" Water Connection
This unit comes with a 1/4" water connection for water supply.
5-15P
This unit comes with a NEMA 5-15P plug.

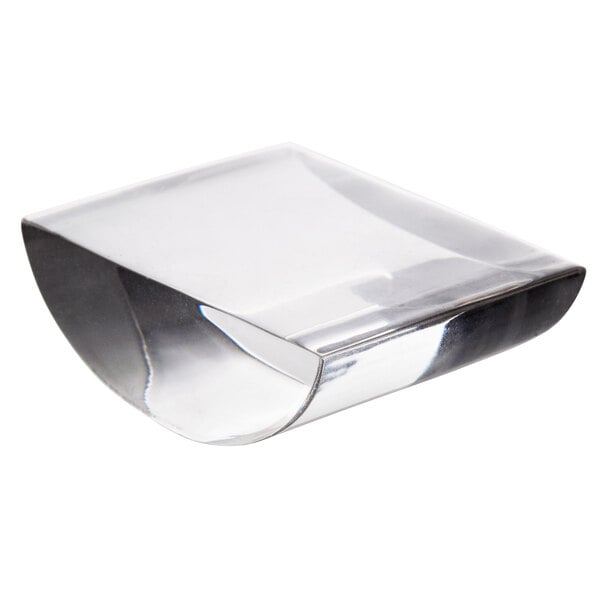

Curved Crescent Design
The curved design of the cubes allows water to flow evenly over the surface of the evaporator during ice creation, ensuring that impurities are washed away instead of being trapped and frozen in conventional grid-style evaporators. It also ensures that cubes come off individually instead of in unusable sheets and clusters.
H-GUARD Plus Antimicrobial
To aid in your safety efforts, H-GUARD Plus Antimicrobial agent is embedded into the ice scoop and other key components of the ice machine to inhibit the growth of bacteria, mold, and other microorganisms.
EverCheck Control Board
The EverCheck control board keeps operation simple and features an audible alarm and easy-to-use diagnostic features should a problem arise. Plus, the CycleSaver design increases energy efficiency, leading to less down time for cleaning. Removable air filters also help make cleaning and maintenance easy, and make maintaining your unit as stress-free as possible.
Stainless Steel Evaporator
The stainless steel evaporator is designed for increased efficiency with maximized surface area, a faster harvest cycle for increased production, and an increased bonded surface area that creates a stronger, more durable structure.
Ice Storage Bin
This ice machine comes with a built-in ice bin with a capacity of 80 lb. It keeps your ice cubes fresh and cold so you are able to serve your customers chilled beverages with crystal clear ice.
Front-In, Front-Out Airflow
To further ease maintenance, this unit features a front-in, front-out airflow and contains removable air filters, which keep the condenser coils clean to improve performance and longevity.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
Frequently Asked Questions From Customers
Watch More Videos
Hoshizaki KM Cubers Training: Part 3
Properly diagnose electrical and component failures with your Hoshizaki KM cuber system by using this 10 minute check-out procedure!
This video will demonstrate the proper way to perform the 10 minute check-out procedure for a system diagnosis of the KM cuber. Before we see how to diagnose electrical and component failures, let’s review the KM cuber’s sequence of operation. First, the unit always starts in the 1 minute fill cycle. Sixty seconds later, the initial harvest begins. Three to four minutes later, the freeze cycle begins. Longer harvest may occur in colder climates. After an average freeze time of approximately 30 minutes, the pump-out cycle occurs. Ten to twenty seconds later, the normal harvest begins. The KM cuber will continue to cycle until the bin control opens to stop the ice production. The first step in the 10 minute check-out procedure is to make sure there is adequate water and power supplied to the unit. When trouble shooting for system failures, remove the front panel, turn the ice maker off, and remove the control box cover. Now turn the unit back on. Remove the evaporator cover and make sure water is entering the reservoir. If there is no water coming in, check the bin control. The bin control contacts supply power to all the other controls in the unit. To check the bin control, flip the unit switch to the “wash” position. In the pump starts, it indicates that the bin control is closed. Next, check the cleaning valve micro switch. Flip the unit switch back to the ice making position. If there is still no water entering the evaporator, check the position of the cleaning valve handle. This handle must be in the horizontal position in order for the micro-switch, located behind the handle, to close. This micro-switch supplies control voltage to the control board. The cycle will not start without control voltage. A quick check of the control transformer secondary will verify that control voltage is present. If the 1 minute fill does not begin after you have checked the bin control and cleaning valve, check for 115 volts to the water valve. Check the terminals of the inlet water valve. If you have voltage, you can assume there is a problem with the water valve. Before replacing the water valve, check the inlet stream for debris. To do this, shut off the water and unscrew the thumbnut behind the water valve. Push the water line aside and inspect the screen. Clean or replace the screen as necessary. Check the water valve coil and diaphragm for problems and replace the water valve if necessary. After correcting the water valve problem, turn the machine on. The ice maker should cycle through the 1 minute fill and start the initial harvest cycle. If the initial harvest cycle does not start after 1 minute, check the float switch. Unplug the float switch and check for continuity with your own meter. If it is not closed and water is in the reservoir, the float switch is either dirty or defective. Clean it and check it to assure proper operation. If the float switch is good, the control board timer is defective and the board should be replaced. If the ice maker cycles into the initial harvest, the float switch is closed and the 1 minute timer works. A minute or so into the harvest cycle, the inlet to the evaporator should feel warm to the touch. As the hot gas circulates, the thermistor at the evaporator outlet reaches 48 degrees. The length of time it takes to reach 48 degrees depends on the ambient conditions and the water temperature. The length of harvest will automatically adjust to be longer in the winter and shorter in the summer. If the evaporator is not warming up, the first place to check is the hot gas valve. Lightly touch the discharge line to see if it is hot. If the discharge is not hot, then there is an obvious refrigeration problem and you’ll have to troubleshoot the system using basic refrigeration practices. If the discharge line is hot, but there is no heat coming from the outlet of the hot gas valve to the evaporator, you should check for coil voltage. To check for voltage, pull the tin pin connector out about 3/8” and check from the pin on the pink wire, which is the hot gas valve, to a neutral white wire. If you get proper voltage, the control board is working. If not, the problem is the control board. If you do get voltage, check the coil to be sure it’s energized. To do this, lay a metal paperclip on the coil. If you can feel a magnetic pull, the coil is energized. If the coil is in fact energized, it is possible that the hot gas valve is stuck. A stuck valve should be replaced using proper refrigeration practices. With normal operation of the hot gas valve, the evaporator will warm. At 48 degrees, the thermistor will start the defrost completion timer. The average harvest cycle and average ambient temperatures will range from 2-4 minutes. Longer harvest will occur with colder supply water or if the defrost completion timer is adjusted longer. If the harvest cycle does not end within 10 minutes, leave the machine running and unplug the thermistor. Check the resistance with your own meter and compare it against the temperature resistance chart in your tech specs book. For example, if your meter reads 6K ohms of resistance, the sensor temperature is 32 degrees. However, after 10 minutes in the harvest cycle, the temperature should be much warmer. This would tell you that there is a refrigeration problem. In another example, if your meter reads 2.5K ohms then the suction line temperature is 70 degrees. Since that temperature is well above the normal 48 degrees needed to start the defrost completion timer, the control board is not responding and there is a problem with the board. Once the harvest cycle ends, the freeze cycle begins. The hot gas valve and water valve de-energize and the pump motor and self-contained fan start. After the ice maker is in the freeze cycle, the evaporator inlet should feel cold within about 3 minutes. If it does, you have basic refrigeration occurring. If the evaporator is still warm after 3 minutes, there is a possible refrigeration problem. This problem might be caused by 1-hot gas valve not closing, 2- coil still energized because of a control board problem, 3- thermostatic expansion valve not opened properly, or 4- insufficient refrigerant. These items should be checked using normal refrigeration diagnostic practices. Next, let’s make sure the ice maker is purging properly by checking the pump-out system. After 5 minutes in the freeze cycle, unplug the float switch to initiate harvest. This will cause the unit to go into a 10 second pump-out that will flush the dirty water and sediment through the check valve and down the drain. You can also squeeze the pump supply hose tight enough to force the water down the drain. This would empty out the reservoir and allow the float switch to open by itself. It is important to understand the control components of the KM cuber. These components include the control board, the float switch, the thermistor, and bin control. First, let’s look at the bin control for any suspected problems or adjustments. A quick check of the bin control can be accomplished by switching the pump to the “wash” position. The unit will not start if the bin control is stuck open. When the bin control is stuck closed, the machine will not automatically shut off. If the bin control is not adjusted properly, it could cause the unit to shut down prematurely or allow ice to back up into the evaporator, causing a freeze-up condition. To check the adjustment of the bin control, access the thermostatic bulb, turn the switch to the “wash” position. Next, place a small amount of ice on the thermostatic bulb. Count the seconds and listen for the pump to shut off. If the pump shuts down within 6-10 seconds, the bin control is adjusted properly. Adjustment can be made with a screwdriver in the bin control slot. The float switch has two primary functions; it provides low water safety protections and initiates harvest. If the float sticks in the down position, which is open, the unit will switch to the one minute fill cycle and run water continuously. If the float sticks in the up position, which is closed, the unit will remain in freeze for 60 minutes. The cubes will be larger than normal and the pump will cavitate before harvest begins. If either of these symptoms exists, the float switch needs to be cleaned and checked. First, take the float switch apart and clean it with ice machine cleaner. Once you’ve cleaned the float switch, check it with an ohm meter to be sure it operates properly. The thermistor monitors the outlet temperature of the evaporator. At 48 degrees, it starts the defrost completion timer. At 127 degrees, it automatically shuts down the machine on the manual reset high-temperature safety. There are only two ways a thermistor can fail: open or shorted. An open thermistor will cause a consistent 20 minute harvest cycle. A shorted thermistor will shut the unit down on the high-temperature safety. When you switch the power off and back on, the safety will not reset. The thermistor should be checked using an ohm meter as previously discussed. Now, the control board. The control board processes information to supply the voltage that allows the components of the ice maker to cycle properly. Many things can affect the control board, but if you have proper supply voltage, proper control voltage, a good float switch, a good thermistor, and good pin connections, and the machine is not cycling properly, you can assume that you may have to replace the control board. Remember, when servicing any Hoshizaki ice maker, always refer to your tech specs guide for detailed information or call the Hoshizaki service hotline on your screen. Understanding these symptoms and the operation of these simple controls will help you diagnose sequence problems on a KM unit using the 10 minute check-out procedure.
Compare to Other Products
Price
24 Hour Ice Yield
Bin Storage Capacity
Ice Type
Plug Type
Water Usage
- Width:
- 24 Inches
- Depth:
- 28 Inches
- Height:
- 39 Inches
- 24 Hour Ice Yield:
- 213 Pounds
