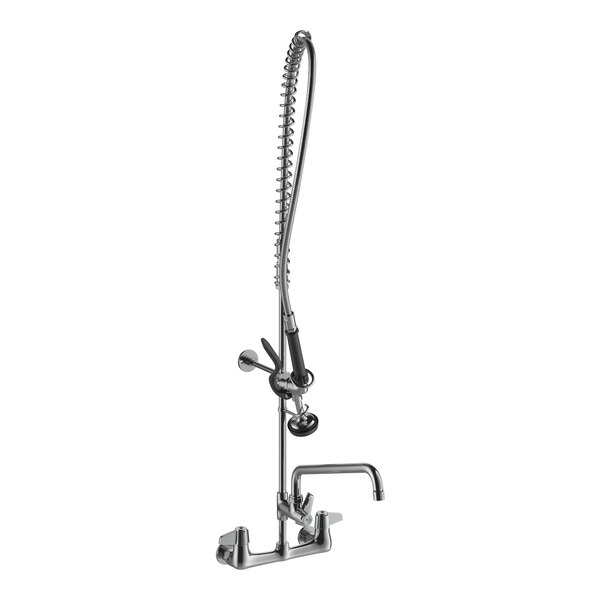

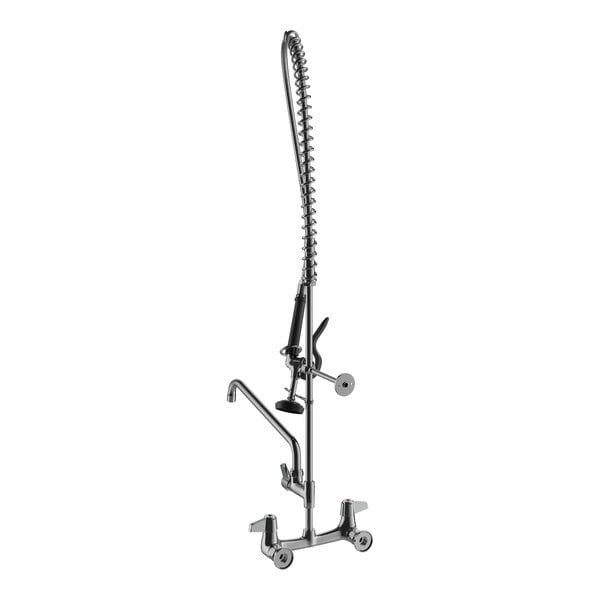

Name: Equip by T&S 5PR-8W12 Wall Mounted 35 3/4" High Pre-Rinse Faucet with 8" Adjustable Centers, 44" Hose, 12 1/8" Add-On Faucet, and 6" Wall Bracket
Brand: T&S Brass and Bronze Works
SKU: 5105PR8W12
Availability: InStock
Rating: 4.4 (19 reviews)

0:00 / 0:00

Only

$294.99/Each

Ships free with

Due to a manufacturer's price increase, this price will increase by 6.00% on 05/19/25

Earn up to $8.85 back (885 points)with a Webstaurant Rewards Visa® Credit Card

Add to Wish List

Quick Shipping

Usually ships in 1 business day

Product Overview

8" centers; adjustable from 7 3/4" to 8 1/4"; 1/2" NPT female inlets with 2" flange
44" flex hose; 1.15 GPM 5SV Equip spray valve
Lever handles with color coded screws
Equip ceramic cartridges; can withstand water temperatures up to 140 degrees Fahrenheit
Includes 6" wall bracket and 12 1/8" add-on faucet; 35 11/16" overall height

UPC Code:671262565677

View all T&S Brass and Bronze Works Pre-Rinse Faucets

plus

Equip by T&S 5SV-C Low Flow Spray Valve Replacement for Equip Pre-Rinse Units

$45.99/Each

plus

T&S B-TEE-RGD 3/8" NPT Rigid Tee Assembly for Pre-Rinse Faucets

$69.57/Each

plus

T&S B-0230-K 1/2" NPT Elbow Installation Kit

$37.73/Each

plus

Easyflex White PTFE Thread Seal Tape 1/2" x 520"

$1.99/Each

plus

T&S B-0230-KIT Inlet Kit with 24" Hoses and Elbows (1/2" NPT Male Supply Nipples x 3/8" Compression)

$43.34/Each

When you need a reliable pre-rinse faucet, look no further than the 5PR-8W12 from Equip by T&S.

The spray valve on this pre-rinse unit is capable of a 1.15 GPM flow rate. This helps you to conserve water and save money on your utility bill and also makes it well-suited for most warewashing setups. With its chrome-plated brass construction, this faucet provides a polished look with the durability you expect from an industry-leading faucet manufacturer! This faucet mounts to the wall using a pair of 1/2" NPT female inlets with 2" flanges. Those inlets can adjust from 7 3/4" to 8 1/4", allowing you to fit them directly onto your facility's water lines with ease.

1 1/2" Water Connection
This unit comes with a 1 1/2" water connection for water supply.
NSF/ANSI/CAN 61 (Certified by CSA)
This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.
NSF/ANSI/CAN 372 (Certified by CSA)
This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.

"This was a great investment! A total dream to use and very sturdy construction. I had not used one of these before so was at a loss for what options to consider but having both the sprayer and filler combined was the right way to go."

Flexible Hose

The flexible 44" stainless steel hose on this model provides great range of motion and lets you direct the water exactly where you need it. The spring helps it retain its shape and keeps the spray valve positioned above the sink.

Easy-to-Use Handle

An ergonomic and heat-resistant handle makes it easy to use even during a long and busy shift, while the hold-down ring lets you lock it in a continuous spray position for as long as you need.

Add-On Faucet

This unit also includes a 12" add-on swing faucet for extra versatility in your warewashing area.

Sturdy Wall Bracket

This model comes with a 6" wall bracket to help secure your unit to the wall.

Ceramic Cartridges

This faucet comes with lever handles. The cartridges feature ceramic discs that open and close to control water flow rather than the seat washer setup found in standard compression cartridges. This increases durability while reducing the number of moving parts, which in turn means you'll replace these components less frequently. Additionally, this model comes with check valves to prevent cross flow.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

Frequently Asked Questions From Customers

Can I get a spray valve with a higher flow rate (GPM)?

The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

How do I use a wall bracket to stabilize a pre-rinse faucet?

Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket.

If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective.

If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.

How is the pre-rinse hose length measured?

Unless otherwise specified, the quoted hose length includes any grips or connectors at the end of the hose, so the actual working length of the hose may be slightly less than described. Please refer to the product's specsheet for more detailed dimensions.

I have a chemical injection system on my compartment sink. Can I use my pre-rinse faucet to supply water to it?

Yes! Item B-TEE-RGD is a rigid tee assembly that installs easily into an existing T&S pre-rinse faucet (or you can use it on a brand new faucet) and provides you with a means to deliver water to a chemical injection system, or other, similar sink accessories that may require a water supply.

0:00 / 0:00

T&S: Installing and Converting a Pre-Rinse Unit

This video goes over the simple process of installing or converting a T&S pre-rinse unit. With 2 easy procedures, these faucets are sure to ease your experience.

Compare to Other Products

Item #: 5105pr8w12Equip by T&S 5PR-8W12 Wall Mounted 35 3/4" High Pre-Rinse Faucet with 8" Adjustable Centers, 44" Hose, 12 1/8" Add-On Faucet, and 6" Wall Bracket
Free Shipping
Price:$294.99/Each

44 Inches

12 1/8 Inches

Ceramic

1.15 GPM

40 - 140 Degrees F

Item #: 5105pr8d00Equip by T&S 5PR-8D00 Deck Mounted 34" High Pre-Rinse Faucet with 8" Adjustable Centers, 44" Hose, and 6" Wall Bracket
Free Shipping
Price:$238.49/Each

44 Inches

None

Ceramic

1.15 GPM

40 - 140 Degrees F

Item #: 5105pr8w12cEquip by T&S 5PR-8W12-C Wall Mounted 35 11/16" High Pre-Rinse Faucet with 8" Adjustable Centers, 1.2 GPM Spray Valve, 44" Hose, 12 1/8" Add-On Faucet, and 6" Wall Bracket
Free Shipping
Price:$284.99/Each

44 Inches

12 1/8 Inches

Ceramic

1.2 GPM

40 - 140 Degrees F

Item #: 5105pr8w14Equip by T&S 5PR-8W14 Wall Mounted 35 3/4" High Pre-Rinse Faucet with 8" Adjustable Centers, 44" Hose, 14 1/8" Add-On Faucet, and 6" Wall Bracket
Free Shipping
Price:$322.49/Each

44 Inches

14 1/8 Inches

Ceramic

1.15 GPM

40 - 140 Degrees F

Item #: 5105pr8w18Equip by T&S 5PR-8W18 Wall Mounted 42 1/2" High Pre-Rinse Faucet with 8" Adjustable Centers, 44" Hose, 18 1/8" Add-On Faucet, and 6" Wall Bracket
Free Shipping
Price:$322.49/Each

44 Inches

18 1/8 Inches

Ceramic

1.15 GPM

40 - 140 Degrees F

Attention CA Residents:

Need Parts & Accessories?

Show replacement parts and accessories for T&S Brass and Bronze Works 5PR-8W12 today!

Resources and Downloads for
T&S Brass and Bronze Works 5PR-8W12

Specsheet

Instructions

Warranty

Add-On Faucet Instructions

Sales Sheet

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Resources

How to Choose the Right Faucet

Quantity: 1/Each
Shipping Weight: 13.23 lb.
Hose Length: 44 Inches
Faucet Width: 11 3/4 Inches
Faucet Height: 35 11/16 Inches
Add-On Faucet: 12 1/8 Inches
Add-on Flow Rate: 4.52 GPM
Add-On Type: Swing
Cartridge Type: Ceramic
Faucet Centers: 8 Inches
Finish: Chrome
Handle Type: Lever
Material: Brass
Mounting Style: Wall Mounted
Mounting Type: Adjustable
Pre Rinse Unit Type: Hose and Spring
Pressure Rating: 125 PSI
Spray Valve Flow Rate: 1.15 GPM
Temperature Rating: 40 - 140 Degrees F
Type: Pre-Rinse Units
Water Inlet Size: 1/2 Inches

Customer Reviews

4.4

19 Customer Reviews

Customers Say

Customers appreciate the powerful spray and sturdy construction of this faucet and sprayer, noting its ease of installation and good performance in commercial settings. Some users mention the need for occasional maintenance and compatibility issues with certain parts. Overall, it is valued for its functionality and durability.

faucet
sprayer
great
spray
easy
nozzle
powerful
sink
weve
years

This AI-generated summary was created from real customer reviews

Verified Purchase

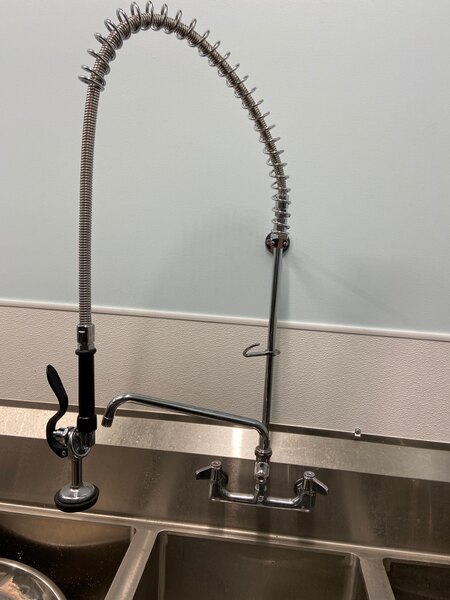

Very nice and powerful faucet and sprayer, my teen son assembled and installed it. We had to do some adjustments (about 4 times) until we got it all running leak free. Make sure you buy the hose kit for the back, we didn't when I first ordered the sink and faucet, so I had to wait until I ordered it. It really was a breeze to install considering it was just my teen son and I installing it. The only thing in hind site I could say I would do different is... maybe pick one that the faucet wouldn't stick quite so far out. But over all I am very happy.

3 out of 3 found this review helpful

Verified Purchase

Used T&S products before at other restaurants and have loved their products and so choosing them to use in our coffee shop was a no brainer. Showed up in perfect condition and well packaged.

2 out of 2 found this review helpful

Verified Purchase

This has been a solid faucet for the most part. We've had it for around 5 years now and we've had to do a decent bit of maintenance, which is to be expected, but I have a few notes that are worthwhile on the maintenance side of things. 1.) We've had to replace the cartridges twice so far. At a decent price they're both more expensive than other similar cartridges by a factor of 3, but also, we've essentially now purchase a whole new faucet simply by purchasing 2 rounds of cartridges for it. We also had to replace the spray head, which wasn't too cost prohibitive. It feels a bit frustrating to essentially purchase multiple units over the course of its lifespan. 5 years is a decent amount of time in a commercial setting, so I'm not upset at having to do maintenance, but having it be affordable would be great.
