Product Overview

  • Makes up to 420 lb. of half cube ice per day
  • Durable 304 stainless steel exteriors with polyethylene interiors
  • Digital controller allows user to quickly identify issues

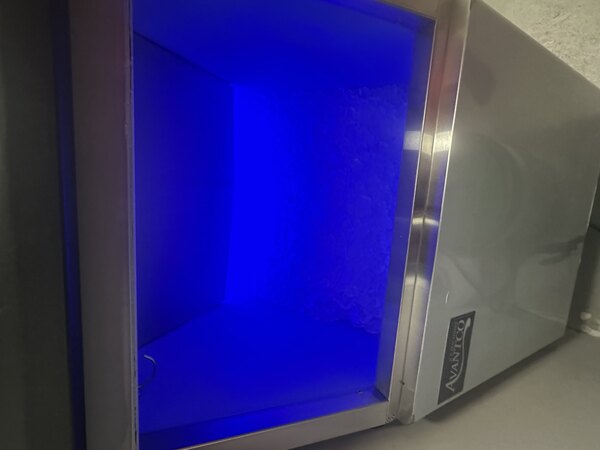

  • Bright LED lights illuminate the ice bin
  • Kit includes ice machine, ice bin, and sanitary ice scoop
UPC Code:400015279772
View all Avantco Ice Machines Air Cooled Ice Machines

Works With

View All Items

Make sure you've always got plenty of fresh ice on hand with the Avantco Ice KMC-H-422-A 22" air cooled modular half cube ice machine with bin!

Capable of producing up to 420 lb. of half cube ice per day, you'll always have plenty of ice to serve on demand. Not only that, with an included ice bin that holds an impressive 275 lb. of ice, this ice machine and bin duo are perfect for preventing periods of downtime while ice is being made. This kit also comes with an ice scoop for a complete set. This unit requires a 115V electrical connection for operation.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • 3/4" Water Connection

    3/4" Water Connection

    This unit comes with a 3/4" water connection for water supply.

  • ETL Sanitation

    ETL Sanitation

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.

OceanLoch+ Mounting Holes

This ice machine also comes with pre-drilled holes on the back of the unit to mount your OceanLoch+ water filter to the machine to ensure you are serving the cleanest and freshest ice possible.

Adjustable legs

With (4) 6" adjustable legs, you can level your machine on uneven surfaces and have plenty of room to clean under it.

Intuitive Diagnostics

For ease of maintenance, a built in diagnostic system will identify problems that your ice machine may be having and will display the issue on the digital controller so it can be repaired accordingly. This intuitive system helps cut down on service calls and unnecessary service fees for minor issues.

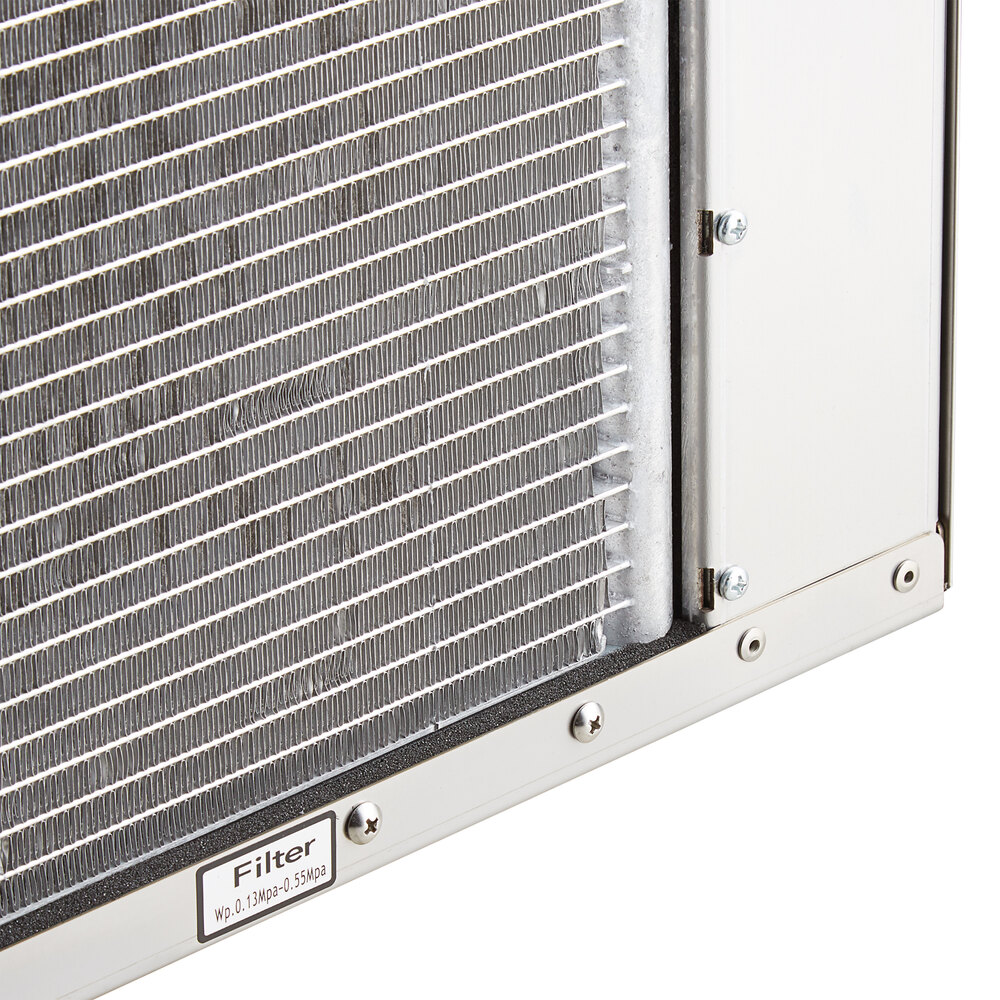

Nickel-Plated Evaporator and Removable Air Filter

A nickel-plated evaporator holds up well to moisture and is non-corrosive. The air filter is easily removable so that it can be cleaned or swapped out when it is time to be replaced.

304 Stainless Steel Design and Polyethylene Interior

Constructed of durable type 304 stainless steel with a polyethylene interior, this unit is easy-to-clean and built to last in the busiest commercial environments.

Ice Monitoring

This easy-to-use controller can also be used to monitor the current stage of ice production that your machine is in. It allows you to adjust the bridge thickness up or down to maximize your harvest into individual cubes of ice, rather than full sheets. It also initiates the cleaning cycle and displays what stage of the cycle you're in.

Side-Breathing with Rear Exhaust

Designed for side-breathing and rear exhaust, you can avoid hot air being blown outward into your kitchen or service area. Plus, a nickel plated evaporator and removable air filter make for quick and simple cleaning and maintenance.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

Ask about this product

Frequently Asked Questions From Customers

Does Avantco warrant this item for use in a food truck?
Avantco warrants new equipment sold to food truck customers to be operational for a period of 30 days from the date of delivery if installed and maintained correctly.

0:00 / 0:00

Watch More Videos

  • Avantco: How to Clean Stainless Steel Ice Machines
  • How to Clean an Avantco Modular Ice Machine
  • Avantco Ice Machines

Avantco: How to Clean Stainless Steel Ice Machines

Follow these tips for how to clean the stainless steel on your Avantco ice machine.

More Video Resources

Here’s some tips for how to clean the stainless steel on your Avantco ice machine. Only use soft cloths, microfiber, sponges, or plastic scouring pads to avoid scratching the surface. Clean with the polish lines by wiping parallel to the grain.

Use the right cleaning chemicals, such as alkaline, alkaline chlorinated, or non-chloride chemicals. Noble Chemical offers Excel, a water-based aerosol cleaner and polish that won’t attract dirt, making it ideal for commercial kitchen equipment.

Clean and disinfect the stainless steel on your ice machine using a sanitizer, like Noble’s QuikSan, which is a ready-to-use sanitizer that won't damage stainless steel.

You’ll want to minimize the impact of hard water. Do not let hard water stand on your stainless steel surfaces for extended periods. By following these tips you’ll make sure your stainless steel is clean and shiny.

Overall Dimensions:
Width:
22 Inches
Depth:
32 11/16 Inches
Height:
67 11/16 Inches

Please check the Compatibility resource for information on items that work with this product.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents:

Need Parts & Accessories?

Shop replacement parts and accessories for this item today!

Resources and Downloads

Avantco Ice Machines 194KMCH422BA SpecsheetSpecsheetModular Ice Machine User’s ManualManualAvantco Ice - 1 year Limited Parts & Labor WarrantyWarrantyAvantco Ice Machine Compatibility ChartCompatibilityAvantco Ice Machines Buying GuideBuying Guide

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications.

Resources

  • Types of Ice Machines

    • Specs

    Quantity
    1/Each
    Shipping Weight
    220 lb.
    Width
    22 Inches
    Depth
    32 11/16 Inches
    Height
    67 11/16 Inches
    Bin Width
    22 Inches
    Bin Depth
    32 11/16 Inches
    Bin Height
    45 5/16 Inches
    Amps
    9.4 Amps
    Hertz
    60 Hz
    Phase
    1 Phase
    Voltage
    115 Volts
    24 Hour Ice Yield
    420 Pounds
    Ambient Temperature Range
    40 - 90 Degrees F
    Average Running Decibels
    63.3 Decibels
    Bin Storage Capacity
    275 lb.
    BTU Per Hour
    3,207 BTU
    Color
    Silver
    Condenser Type
    Air Cooled
    Ice Type
    Half Size Cubes
    Installation Type
    Modular
    Material
    Stainless Steel
    Plug Type
    NEMA 5-15P
    Power Usage
    5.2 kWh per 100 lbs.
    Refrigerant Type
    R-290
    Type
    Ice Machines with Bins
    Water Inlet Size
    3/4 Inches
    Water Pressure Range
    18 3/4 - 80 PSI
    Water Temperature Range
    40 - 90 Degrees F
    Water Usage
    15 Gallons Per 100 lbs.
