Regularly

$2,698.00/Each

$2,498.00/Each

Ships free with
Accessories & Options

What We Offer

shield icon

Protect Your Product

Coverage starting at $269.99 info icon

Extended Warranty Protection

Keep your business running worry-free by extending coverage on this product's existing warranty, powered by Ready Kitchen Warranty. For warranty information about this product, please refer to the original manufacturer warranty on this page.

Choose your Protection Plan:
Ready Kitchen Warranty logo

Extended Warranty Protection extends the original manufacturer warranty; any use outside the original warranty voids the protection plan.

Earn up to $80.94 back (8,094 points)with a Webstaurant Rewards Visa® Credit Card

Add to Wish List

Installation Services

Check if installation is currently available for your area.

Quick Shipping

Usually ships in 1 business day

Product Overview

  • Makes up to 350 lb. of half cube ice per day
  • Durable 304 stainless steel exteriors with polyethylene interiors
  • Digital controller allows user to quickly identify issues
  • Bright LED lights illuminate the ice bin
  • Kit includes ice machine, ice bin, and sanitary ice scoop
UPC Code:400015279765
View all Avantco Ice Machines Air Cooled Ice Machines

Works With

View All Items

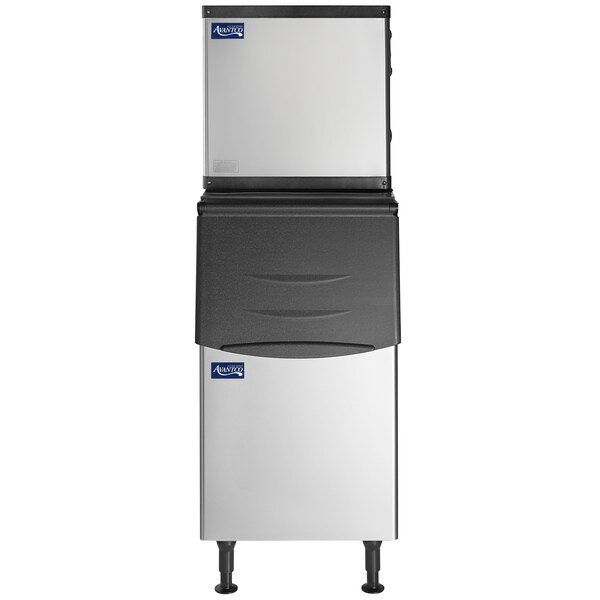

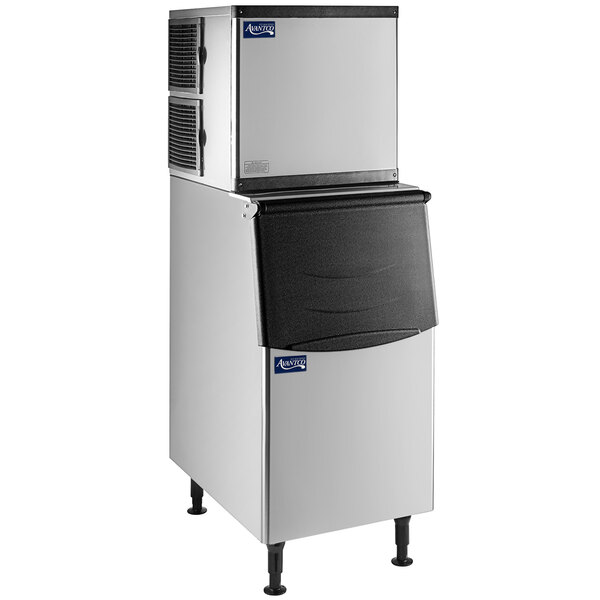

Make sure you've always got plenty of fresh ice on hand with the Avantco KMC-H-322-A 22" air cooled modular half cube ice machine with bin!

Capable of producing up to 350 lb. of half cube ice per day, you'll always have plenty of ice to serve on demand. At only 22" in width, this narrow unit is great for tight bars, kitchens, and coffee shops. An included ice bin holds up to an impressive 275 lb. of ice, making it ideal for busy establishments that cannot afford long periods of downtime while ice is being made.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • 3/4" Water Connection

    3/4" Water Connection

    This unit comes with a 3/4" water connection for water supply.

  • ETL Sanitation

    ETL Sanitation

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.

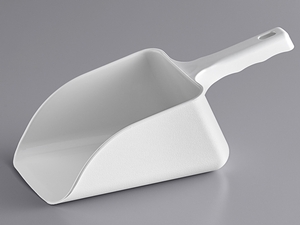

Enhanced Bin

This bin's sturdy polyethylene interior stands up to heavy use, and features bright LEDs to illuminate the ice. A convenient ice scoop is included with this unit.

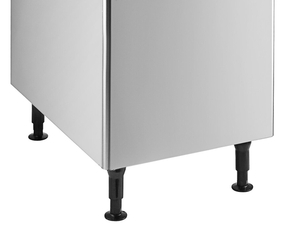

Adjustable Legs

With (4) 6" adjustable legs, you can level your machine on uneven surfaces and have plenty of room to clean under it.

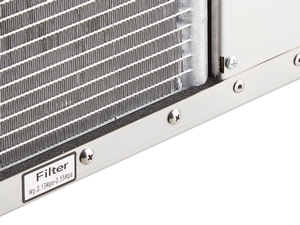

OceanLoch+ Mounting Holes

Pre-drilled holes are on the back of the unit to mount your OceanLoch+ water filter to ensure you are serving the cleanest ice possible.

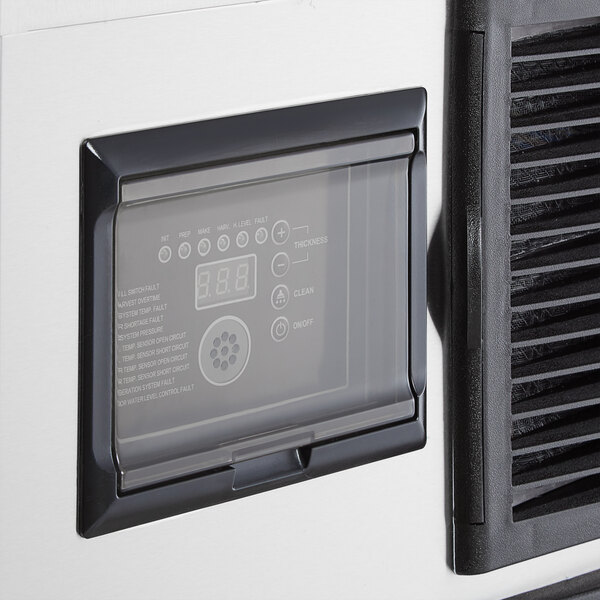

Intuitive Diagnostics and Controls

For ease of maintenance, a built in diagnostic system will identify problems that your ice machine may be having and will display the issue on the digital controller so it can be repaired accordingly. This easy-to-use controller can also be used to monitor the current stage of ice production that your machine is in. It allows you to adjust the bridge thickness up or down to maximize your harvest into individual cubes of ice, rather than full sheets. It also initiates the cleaning cycle and displays what stage of the cycle you're in.

Stainless Steel Construction

Constructed of durable type 304 stainless steel with a polyethylene interior, this unit is built to last in the busiest commercial environments. It is also non-corrosive, making it ideal for settings that are high in moisture and humidity.

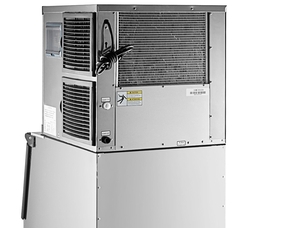

Side-Breathing with Rear Exhaust

Designed for side-breathing and rear exhaust, you can avoid hot air being blown outward into your kitchen or service area. Plus, a nickel plated evaporator and removable air filter make for quick and simple cleaning and maintenance.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

Ask about this product

Frequently Asked Questions From Customers

Does Avantco warrant this item for use in a food truck?
Avantco warrants new equipment sold to food truck customers to be operational for a period of 30 days from the date of delivery if installed and maintained correctly.

0:00 / 0:00

Watch More Videos

  • Avantco: How to Clean Stainless Steel Ice Machines
  • How to Clean an Avantco Modular Ice Machine
  • Avantco Ice Machines

Avantco: How to Clean Stainless Steel Ice Machines

Follow these tips for how to clean the stainless steel on your Avantco ice machine.

More Video Resources

Here’s some tips for how to clean the stainless steel on your Avantco ice machine. Only use soft cloths, microfiber, sponges, or plastic scouring pads to avoid scratching the surface. Clean with the polish lines by wiping parallel to the grain.

Use the right cleaning chemicals, such as alkaline, alkaline chlorinated, or non-chloride chemicals. Noble Chemical offers Excel, a water-based aerosol cleaner and polish that won’t attract dirt, making it ideal for commercial kitchen equipment.

Clean and disinfect the stainless steel on your ice machine using a sanitizer, like Noble’s QuikSan, which is a ready-to-use sanitizer that won't damage stainless steel.

You’ll want to minimize the impact of hard water. Do not let hard water stand on your stainless steel surfaces for extended periods. By following these tips you’ll make sure your stainless steel is clean and shiny.

Overall Dimensions:
Width:
22 Inches
Depth:
32 11/16 Inches
Height:
67 11/16 Inches

Please check the Compatibility resource for information on items that work with this product.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents:

Need Parts & Accessories?

Shop replacement parts and accessories for this item today!

Resources and Downloads

Avantco Ice Machines 194KMCH322BA SpecsheetSpecsheetModular Ice Machine User’s ManualManualAvantco Ice - 1 year Limited Parts & Labor WarrantyWarrantyAvantco Ice Machine Compatibility ChartCompatibilityAvantco Ice Machines Buying GuideBuying Guide

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications.

Resources

  • Types of Ice Machines

    • Specs

    Quantity
    1/Each
    Shipping Weight
    220 lb.
    Width
    22 Inches
    Depth
    32 11/16 Inches
    Height
    67 11/16 Inches
    Bin Width
    22 Inches
    Bin Depth
    32 11/16 Inches
    Bin Height
    45 5/16 Inches
    Amps
    12 Amps
    Hertz
    60 Hz
    Phase
    1 Phase
    Voltage
    115 Volts
    24 Hour Ice Yield
    350 Pounds
    Ambient Temperature Range
    40 - 90 Degrees F
    Average Running Decibels
    69 Decibels
    Bin Storage Capacity
    275 lb.
    BTU Per Hour
    2,696 BTU
    Color
    Silver
    Condenser Type
    Air Cooled
    Ice Type
    Half Size Cubes
    Installation Type
    Modular
    Material
    Stainless Steel
    Plug Type
    NEMA 5-15P
    Power Usage
    5.1 kWh per 100 lbs.
    Refrigerant Type
    R-290
    Type
    Ice Machines with Bins
    Water Inlet Size
    3/4 Inches
    Water Pressure Range
    18 3/4 - 80 PSI
    Water Temperature Range
    40 - 90 Degrees F
    Water Usage
    14.1 Gallons Per 100 lbs.

    Equivalent Items

    Avantco Refrigeration 194KMC350B2H
    Avantco Refrigeration KMC350B2H

    Customer Reviews

    2.5

    Rated 2.5 out of 5 stars

    6 Customer Reviews

    2 reviews rated this 5 out of 5 stars.

    0 reviews rated this 4 out of 5 stars.

    0 reviews rated this 3 out of 5 stars.

    1 reviews rated this 2 out of 5 stars.

    3 reviews rated this 1 out of 5 stars.

    Customers Say

    Customer opinions on this ice machine vary; some appreciate its affordability and initial performance, while others have experienced mechanical failures and durability issues. Common concerns include breakdowns and the quality of components, suggesting mixed reliability over time.

    • ice
    • machine
    • water
    • money
    • avantco
    • brand
    • buy
    • great
    • line
    • unit

    This AI-generated summary was created from real customer reviews

    Rated 1 out of 5 stars
    Rated 1 out of 5 stars
    Review by

    Patrick L.

    Posted on 06/22/2023

    Verified Purchase

    Type:
    Full Cube

    The compressor broke after 2 months of use, and we have been without an ice machine for over 2 weeks while waiting for the service technician under warranty. Don't buy this machine and throw your money away.. recommend going with another brand that will actually last.

    4 out of 4 found this review helpful

    We appreciate your review, Patrick. We wish this product would have worked out for you. Our Customer Solutions team will remain in contact with you about this.

    WebstaurantStore Customer Solutions

    Rated 1 out of 5 stars
    Rated 1 out of 5 stars
    Review by

    Nicholas A.

    Posted on 04/20/2023

    Type:
    Full Cube

    Made one batch of ice and stop working. Don’t try to save money like I did. Buy a name brand, not Avantco.

    3 out of 3 found this review helpful

    Rated 5 out of 5 stars
    Rated 5 out of 5 stars
    Review by

    Jose D. from Jojos Diner

    Posted on 04/04/2023

    Verified Purchase

    Type:
    Full Cube

    Avantco makes great refrigeration equipment. I switched from rental to owning my very own ice machine at a reasonable price. Theybwork great and i have yet to experience any problems with it.

    1 out of 3 found this review helpful

    Rated 1 out of 5 stars
    Rated 1 out of 5 stars
    Review by

    Kyle D.

    Posted on 04/16/2025

    Verified Purchase

    Type:
    Half Cube

    Worked for 6 months. Side panel says E13 pump is not working. My last unit lasted for over 9 years with little to no problems, just regular cleaning. Don’t waste your time and money on this unit. Don’t go cheap like me. Advantco reviews speak for themselves

    Thank you for your review, Kyle! We would like to gather more information about your experience with this ice machine. A Customer Solutions Representative will contact you soon!

    WebstaurantStore Customer Solutions

    Rated 5 out of 5 stars
    Rated 5 out of 5 stars
    Review by

    Churchill M.

    Posted on 10/23/2024

    Verified Purchase

    Type:
    Full Cube

    Rated 2 out of 5 stars
    Rated 2 out of 5 stars
    Review by

    Travis S.

    Posted on 09/25/2024

    Verified Purchase

    Type:
    Half Cube

    We have had this ice machine for several years. Some parts have failed but luckily they are easy to diagnose and repair. The main problem we had recently is there is a included water line. This connection is plastic and one of the joints failed on 9/24/24. This caused the water line to rupture and flooded my entire restaurant. When I came in that morning I was standing in a 1/2 inch of water. Now I'm worried about our $ Epoxy floors which weren't designed to be submerged for hours in water. You can't imagine my anger.

    Thank you for your review, Travis! We would like to gather more information about your experience with this ice machine. A Customer Solutions Representative will contact you soon!

    WebstaurantStore Customer Solutions
