Product Overview

  • Makes up to 497 lb. of full cube ice per day; Ice storage bin capacity 536 lb.
  • Durable roto plastic finish exterior with a polyethylene interior
  • Digital controller allows user to quickly identify issues and the current stage of production
  • Includes bright LED lights and a removable air filter
  • R290 refrigerant; 115V
UPC Code:400015401470
View all Avantco Ice Machines Air Cooled Ice Machines

Works With

View All Items

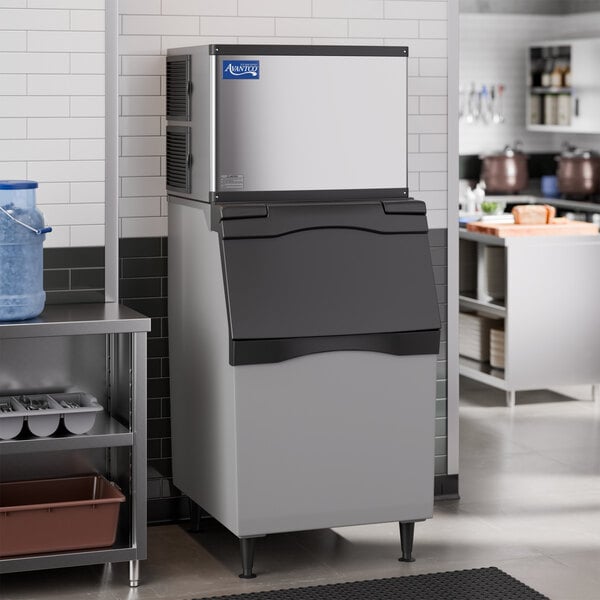

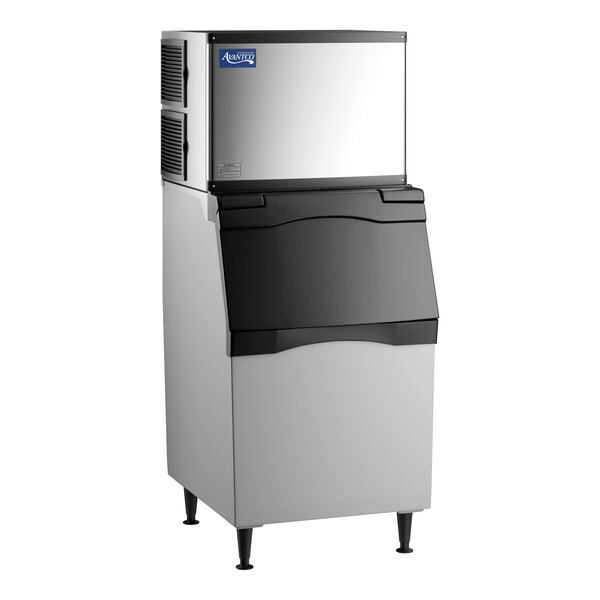

Make sure you've always got plenty of fresh ice on hand with the Avantco Ice KMC-F-530-LA 30" air cooled modular full cube ice machine with bin!

Capable of producing up to 497 lb. of full cube ice per day, you'll always have plenty of ice to serve on demand. At 30" in width, this full size unit is great for bars, kitchens, and coffee shops. An included ice bin holds up to an impressive 536 lb. of ice, making it ideal for busy establishments that can not afford long periods of downtime while ice is being made.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • ETL Sanitation

    ETL Sanitation

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.

  • ETL, US & Canada

    ETL, US & Canada

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.

  • 3/4" Water Connection

    3/4" Water Connection

    This unit comes with a 3/4" water connection for water supply.

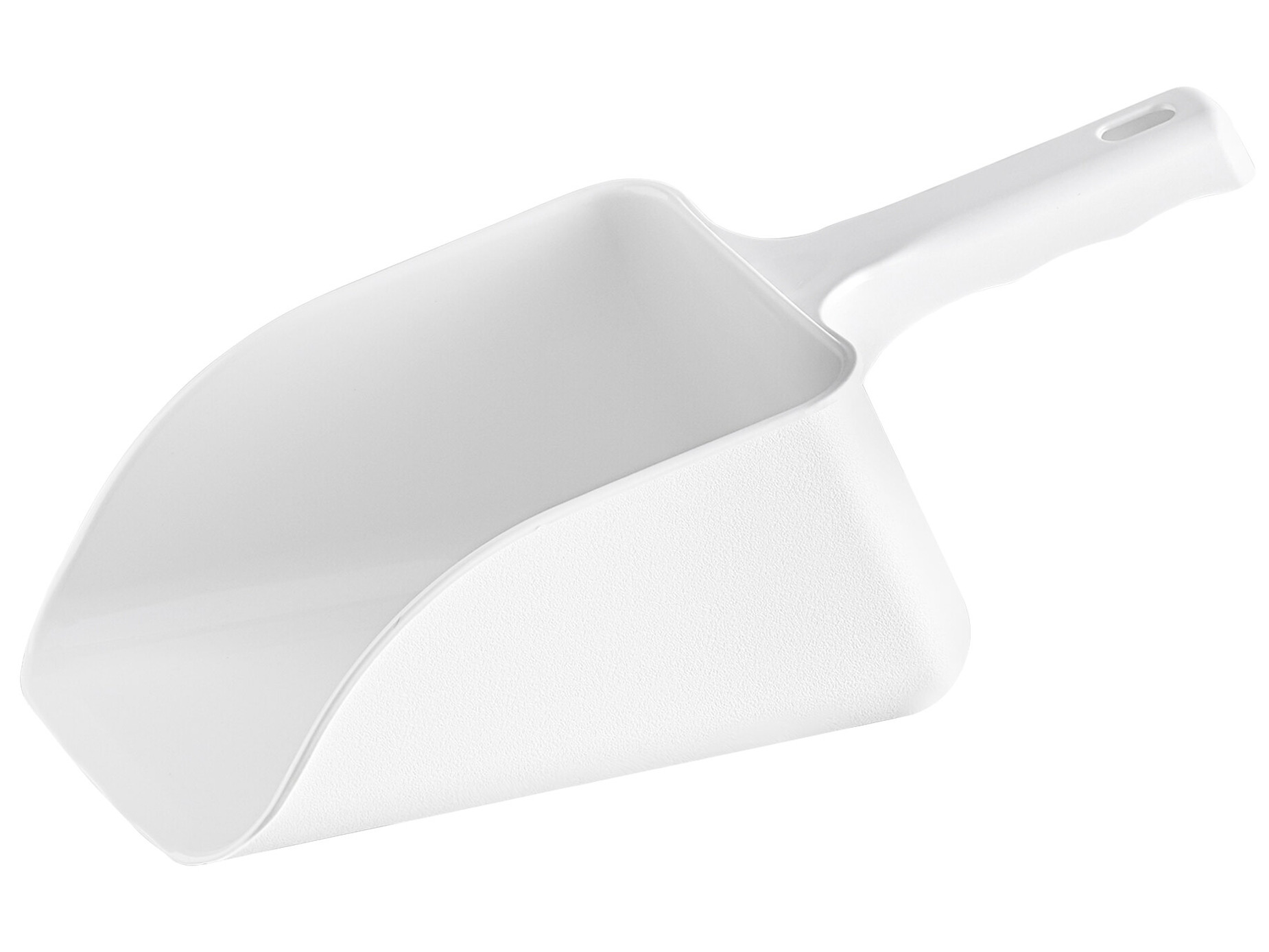

Convenient Ice Scoop

Included with this unit is an ice scoop, scoop holder ledge, and hook to hang it so it's always within convenient reach when needed.

OceanLoch+ Mounting Holes

Pre-drilled holes are on the back of the unit to mount your OceanLoch+ water filter, ensuring the cleanest ice possible.

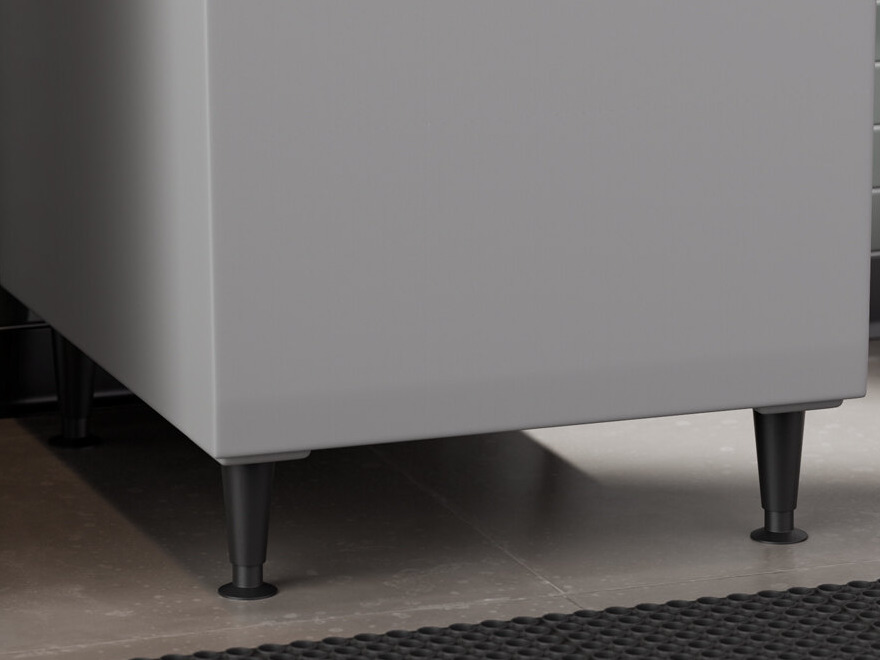

Adjustable Legs

With (4) 6" adjustable legs, you can level your machine on uneven surfaces and have plenty of room to clean under it.

Intuitive Diagnostics and Controls

A built in diagnostic system identifies problems that your ice machine may be having and displays the issue on the digital controller so it can be repaired accordingly. This easy-to-use controller can also be used to monitor the current stage of ice production. It allows you to adjust the bridge thickness to maximize your harvest into individual cubes of ice, rather than full sheets. It also initiates the cleaning cycle and displays what stage of the cycle you're in.

Durable Construction

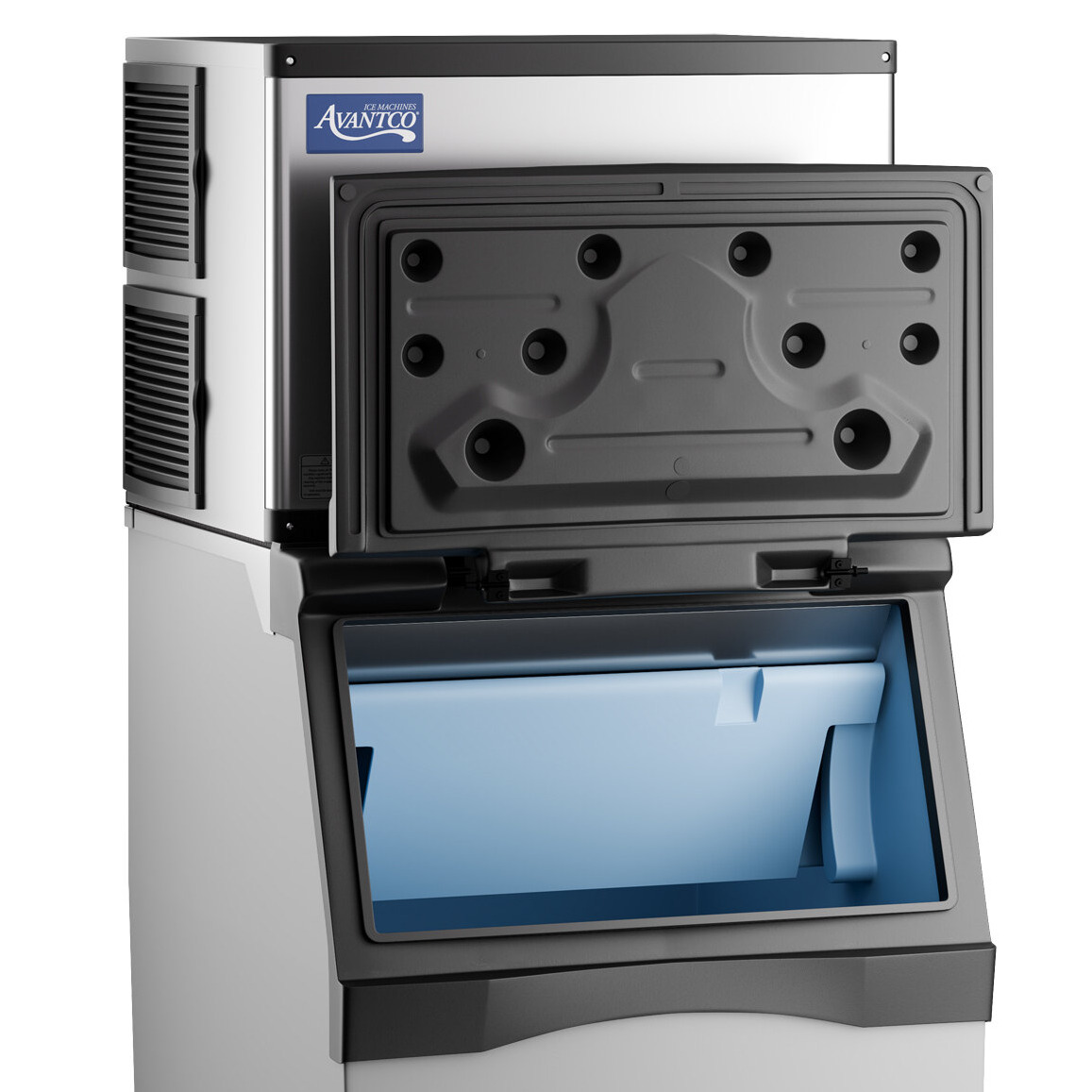

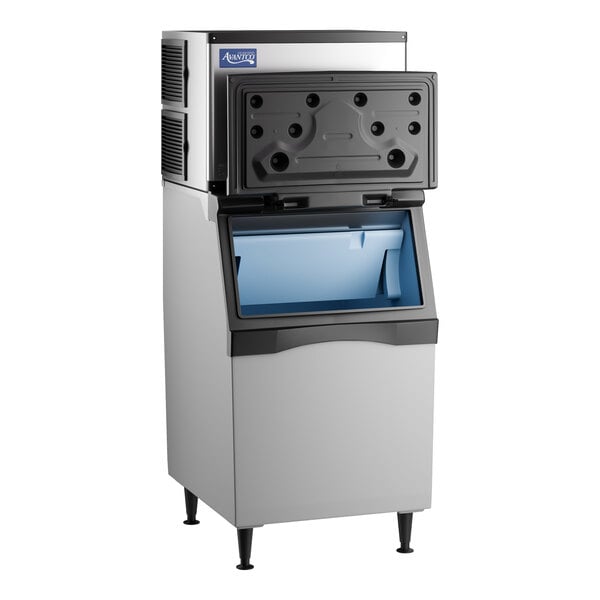

Constructed of durable type 304 stainless steel, this unit is built to last in the busiest commercial environments. It is also non-corrosive, making it ideal for settings that are high in moisture and humidity. The bin itself has a sturdy polyethylene interior to withstand heavy use, and it also has bright LEDs to illuminate the ice.

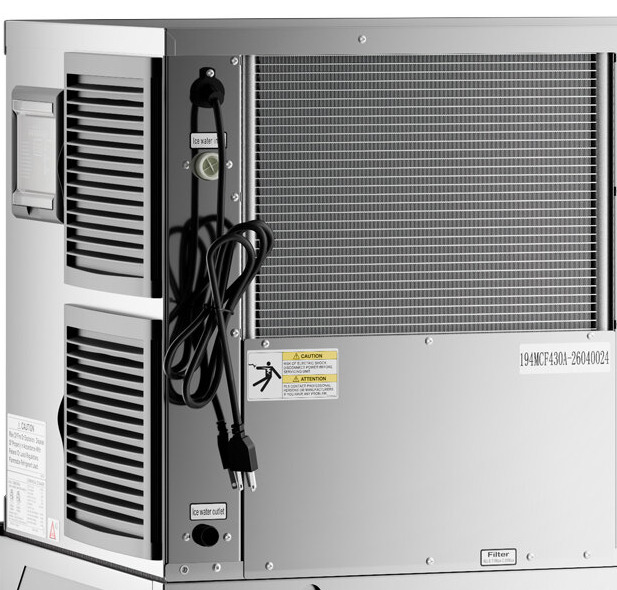

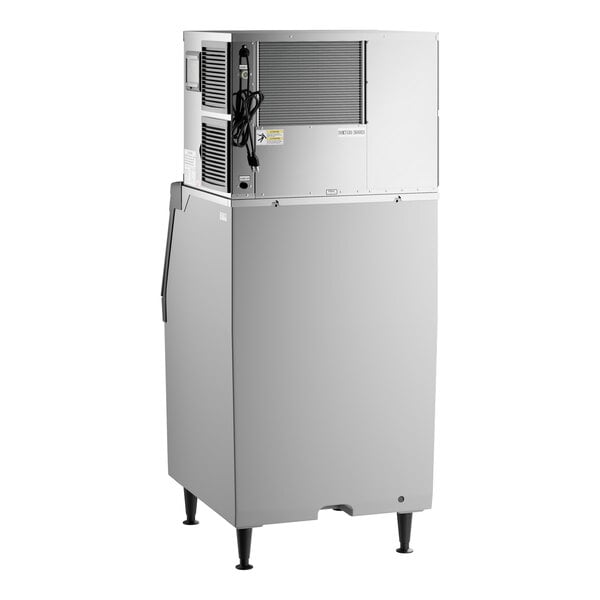

Side-Breathing with Rear Exhaust

Designed for side-breathing and rear exhaust, you can avoid hot air being blown outward into your kitchen or service area. Plus, a nickel plated evaporator and removable air filter make for quick and simple cleaning and maintenance.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

Ask about this product

Frequently Asked Questions From Customers

Does Avantco warrant this item for use in a food truck?
Avantco warrants new equipment sold to food truck customers to be operational for a period of 30 days from the date of delivery if installed and maintained correctly.

0:00 / 0:00

Watch More Videos

  • Avantco: How to Clean Stainless Steel Ice Machines
  • How to Clean an Avantco Modular Ice Machine
  • Avantco Ice Machines

Avantco: How to Clean Stainless Steel Ice Machines

Follow these tips for how to clean the stainless steel on your Avantco ice machine.

More Video Resources

Here’s some tips for how to clean the stainless steel on your Avantco ice machine. Only use soft cloths, microfiber, sponges, or plastic scouring pads to avoid scratching the surface. Clean with the polish lines by wiping parallel to the grain.

Use the right cleaning chemicals, such as alkaline, alkaline chlorinated, or non-chloride chemicals. Noble Chemical offers Excel, a water-based aerosol cleaner and polish that won’t attract dirt, making it ideal for commercial kitchen equipment.

Clean and disinfect the stainless steel on your ice machine using a sanitizer, like Noble’s QuikSan, which is a ready-to-use sanitizer that won't damage stainless steel.

You’ll want to minimize the impact of hard water. Do not let hard water stand on your stainless steel surfaces for extended periods. By following these tips you’ll make sure your stainless steel is clean and shiny.

Compare to Other Products

Overall Dimensions:
Width:
30 1/2 Inches
Depth:
34 Inches
Height:
73 3/8 Inches
Ice Machine Dimensions:
Ice Dispenser Width:
30 1/2 Inches
Ice Machine Depth:
24 3/8 Inches
Ice Machine Height:
22 3/8 Inches
Ice Bin Dimensions:
Bin Depth:
34 Inches
Bin Height:
51 Inches
Bin Width:
30 1/2 Inches

Please check the Compatibility resource for information on items that work with this product.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents:

Need Parts & Accessories?

Shop replacement parts and accessories for this item today!

Resources and Downloads

Avantco Ice Machines 194KMCF530LA SpecsheetSpecsheetModular Ice Machine User’s ManualManualAvantco Ice - 1 year Limited Parts & Labor WarrantyWarrantyAvantco Ice Machine Compatibility ChartCompatibilityAvantco Ice Machines Buying GuideBuying Guide

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications.

Resources

  • Types of Ice Machines

    • Specs

    Quantity
    1/Each
    Shipping Weight
    295 lb.
    Width
    30 1/2 Inches
    Depth
    34 Inches
    Height
    73 3/8 Inches
    Bin Width
    30 1/2 Inches
    Ice Dispenser Width
    30 1/2 Inches
    Ice Machine Width
    30 Inches
    Bin Depth
    34 Inches
    Ice Machine Depth
    24 3/8 Inches
    Bin Height
    51 Inches
    Ice Machine Height
    22 3/8 Inches
    Amps
    13.5 Amps
    Phase
    1 Phase
    Voltage
    115 Volts
    24 Hour Ice Yield
    497 Pounds
    Ambient Temperature Range
    40 - 90 Degrees F
    Average Running Decibels
    73 Decibels
    Bin Storage Capacity
    536 lb.
    BTU Per Hour
    3,798 BTU
    Color
    Silver
    Condenser Type
    Air Cooled
    Drain Outlet Size
    3/4 Inch
    Exterior Material
    Roto Plastic Finish
    Features
    LED Lighting
    Ice Type
    Full Size Cubes
    Installation Type
    Modular
    Interior Material
    Polyethylene
    Plug Type
    NEMA 5-15P
    Power Usage
    4.7 kWh per 100 lbs.
    Refrigerant Type
    R-290
    Type
    Ice Machines with Bins
    Water Inlet Size
    3/4 Inches
    Water Pressure Range
    18 3/4 - 80 PSI
    Water Temperature Range
    40 - 90 Degrees F
    Water Usage
    13.6 Gallons Per 100 lbs.
