Name: Avantco ADC-12-N 71" Customizable Ice Cream Dipping Cabinet
Brand: Avantco Refrigeration
SKU: 360ADC12N
Price: 1679 USD
Availability: InStock

Regularly

$1,679.00/Each

Plus Member Price

$1,549.00/Each

Ships free with Plus

Customize & Add to Cart

Earn up to $50.37 back (5,037 points)with a Webstaurant Rewards Visa® Credit Card

Quick Shipping

Usually ships in 1 business day

Product Overview

Displays up to 12 ice cream tubs with space below to store up to 10 backup tubs
White curved-front design with painted steel construction
Features bright LED lighting
Included tub baskets are easy to remove and store
R-290 refrigerant, 115V, 2/3 hp

UPC Code:400017131764

View all Avantco Refrigeration Ice Cream Dipping Cabinets

Quantity: 1/Each
Shipping Weight: 321.5 lb.
Width: 71 Inches
Depth: 28 Inches
Height: 34 1/2 Inches
Power Cord Length: 70 Inches
Interior Width: 65 1/4 Inches
Interior Depth: 21 1/2 Inches
Interior Height: 25 1/2 Inches
Amps: 4 Amps
Hertz: 60 Hz
Phase: 1 Phase
Voltage: 115 Volts
Cabinet Type: Merchandising
Capacity: 20.7 cu. ft.
Color: White
Compressor Location: Bottom Mounted
Container Display Capacity: 12 Cans
Container Storage Capacity: 10 Cans
Door Style: Sliding
Door Type: Glass
Features: Casters Customizable LED Lighting
Front Style: No Sneeze Guard
Horsepower: 3/5 hp
Refrigerant Type: R-290
Temperature Range: -15 - 10 Degrees F
Total BTU: 1,775 BTU
Total Container Capacity: 22 Cans
Type: Dipping Cabinets

Details

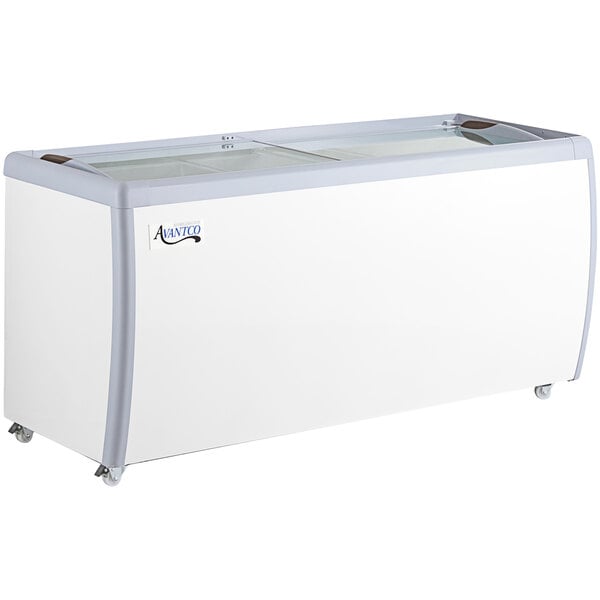

Display, merchandise, and serve a delicious variety of ice cream flavors with this Avantco ADC-12-N ice cream dipping cabinet! Holding up to (12) 10" x 10" 3-gallon ice cream tubs (sold separately) at a time, the unit is perfect for ice cream shops, candy stores, dessert bars, and cafeterias. The frozen storage space beneath the display even provides a convenient place for holding up to 10 backup flavors, making it a space-efficient unit for businesses with limited space. This cabinet features a white curved-front design with a painted steel construction.

A sliding cover protects the ice cream while helping to retain cold air around the product for a safe holding environment. Because it slides open and closed, it's fast and easy to use as well, making it ideal for busy periods. The cover also comes equipped with a lid lock to ensure that your ice cream remains protected and temperature controlled. Featuring a manual control to maintain temperatures from -15 to 10 degrees Fahrenheit, this cabinet ensures that ice cream is held in a proper environment to preserve its quality and consistency. To help achieve this, the robust, bottom-mounted compressor uses R-290 refrigerant. This specialized refrigerant has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3.

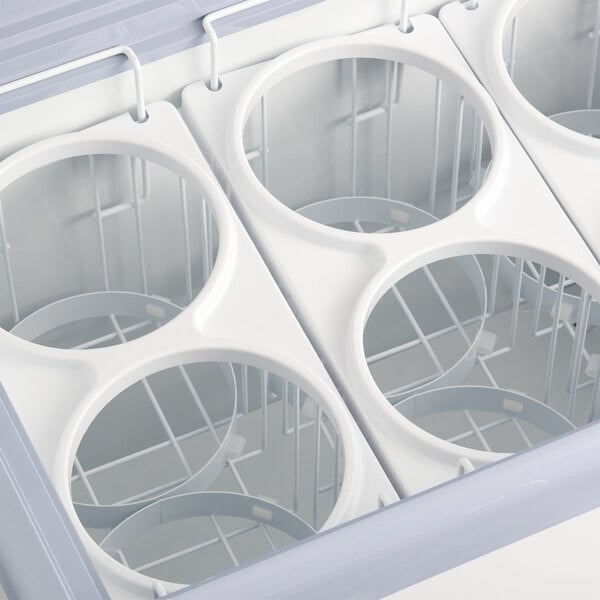

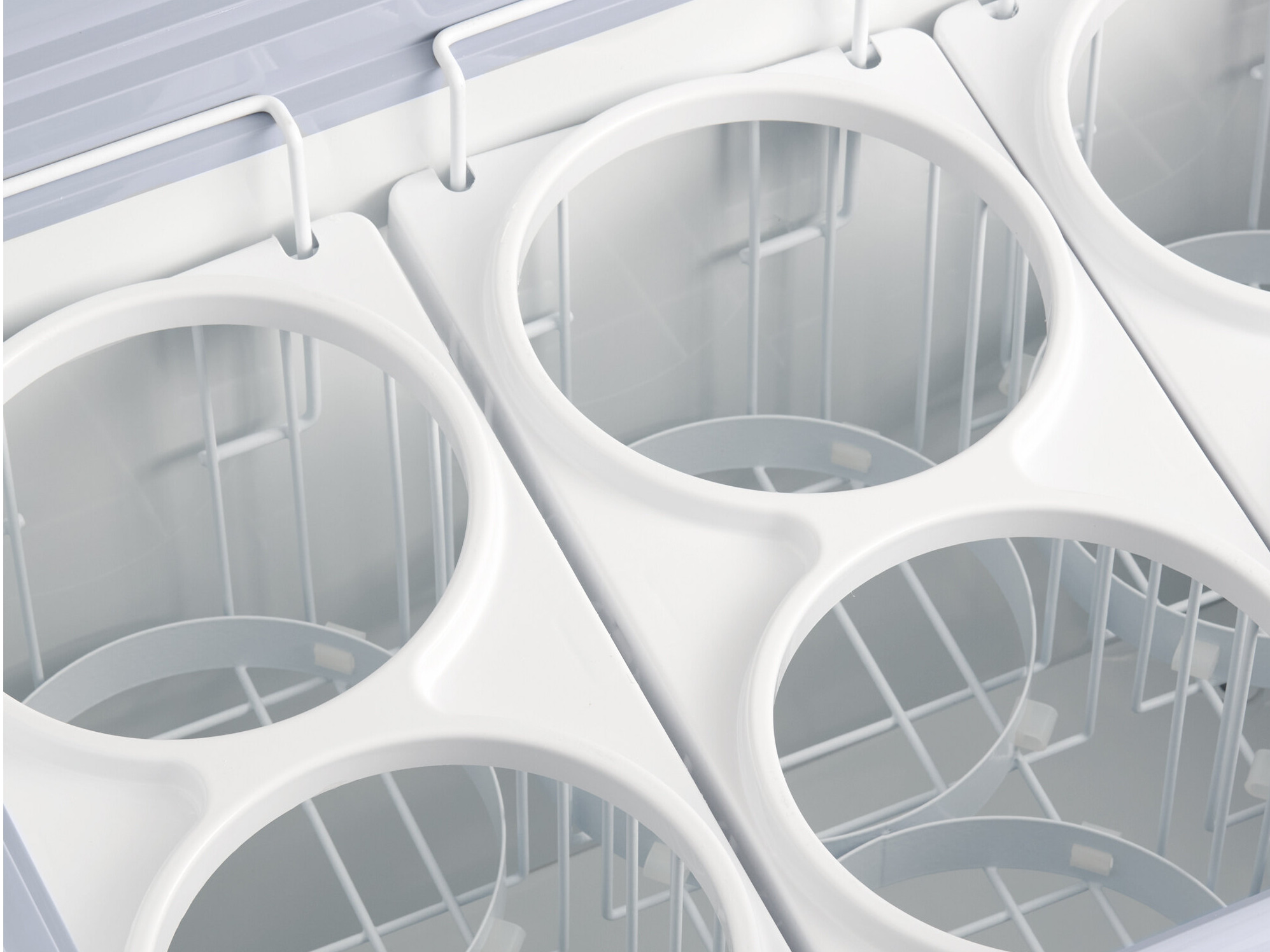

A convenient frozen storage space underneath the display accommodates up to 10 ice cream tubs, providing easy access and helping to save valuable storage space. This cabinet is made fully mobile with 4 included casters, making it easy to move out of the way when cleaning. The tub baskets are easy to remove and store.

Overall Dimensions:
Width: 71"
Depth: 28"
Height: 34 1/2"
Capacity: 20.7 cu. ft.

Interior Dimensions:
Width: 65 1/4"
Depth: 21 1/2"
Height: 25 1/2"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents:

5-15P
This unit comes with a NEMA 5-15P plug.
ETL, US
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States.
ETL Sanitation
This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.
Customizable
This item can be customized to promote your brand, company, or event.

Questions & Answers

Looking For Specific Info?

Get quick answers to product questions with our AI-powered search.

Frequently Asked Questions From Customers

Can I install a dipper well on this product?

Yes. This dipping cabinet includes pre-drilled holes, spaced 4 inches apart, on the rear of the unit for mounting a dipper well.

Does Avantco warrant this item for use in a food truck?

Avantco warrants new equipment sold to food truck customers to be operational for a period of 30 days from the date of delivery if installed and maintained correctly.

How do I adjust the temperature on this unit?

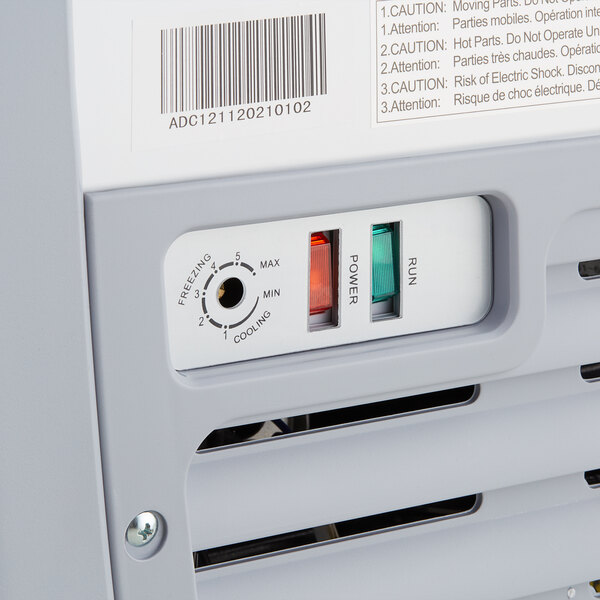

The temperature control is designed to be adjusted with a screwdriver or similar tool. The recessed design is intentionally done to make the controls less prone to damage and tampering.

How do I raise the height of my ice cream tubs?

Tub raisers are included with the unit to raise the bottom plate; even if your tubs have different heights, they will sit flush with the top of the unit.

I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?

R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.

What size ice tubs do these units hold?

These units hold approximately 10” x 10” 3-gallon ice cream tubs (sold separately).

What’s the difference between ice cream and gelato dipping cabinets?

Generally speaking, ice cream dipping cabinets have a lower holding temperature than gelato dipping cabinets. Because of this, it is not suggested that you store gelato in ice cream units. Also, typically gelato dipping cabinets use 5L pans to hold product, whereas ice cream dipping cabinets are designed to hold 3-gallon tubs.

Why is my ice cream tub spinning when I scoop?

As the ice cream gets low, the tub no longer has the weight to remain in place. The cover of the tub has 4 slots for the included clips (packaged separately) that can be used to provide extra holding power to the tub as to prevent unwanted spinning.

Need Parts & Accessories?

Shop replacement parts and accessories for this item today!

Resources and Downloads

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

Note: Avantco Refrigeration equipment with a labor warranty purchased prior to October 15th 2020 is warranted for 1 year parts & labor / 5 year compressor.

Resources

Ice Cream Storage Guide
