$789.00/Each

This product is no longer available. We've left this page up for reference only.

Quick Shipping

Usually ships in 1 business day

Product Overview

  • Featured pulse button and powerful 1 hp direct-drive motor
  • Continuous feed attachment allows for constant slicing and grating, for less manual food preparation

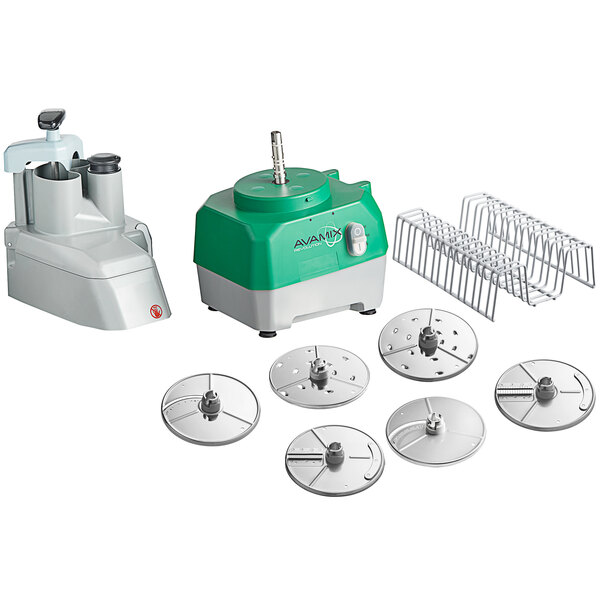

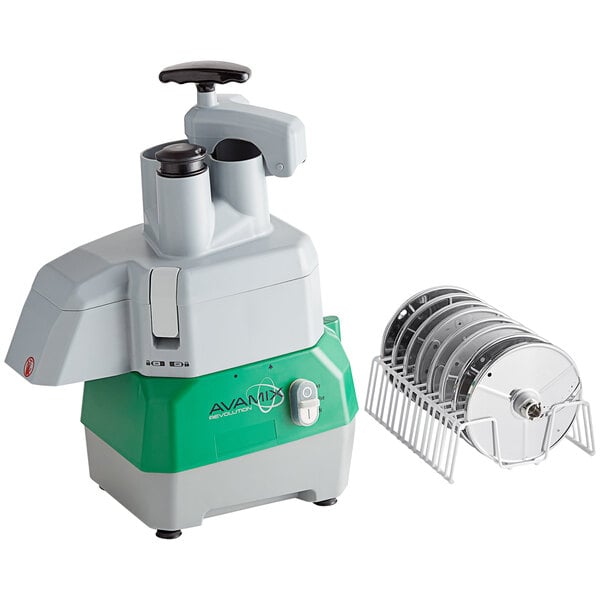

  • Includes 8 discs and 1 disc storage rack
  • For maximum safety, the blade will not spin until the continuous feed attachment is locked
  • Great for a wide variety of vegetable slicing and grating applications
  • Note: only the feed attachment and motor base hold the ETL certification
UPC Code:400015668446

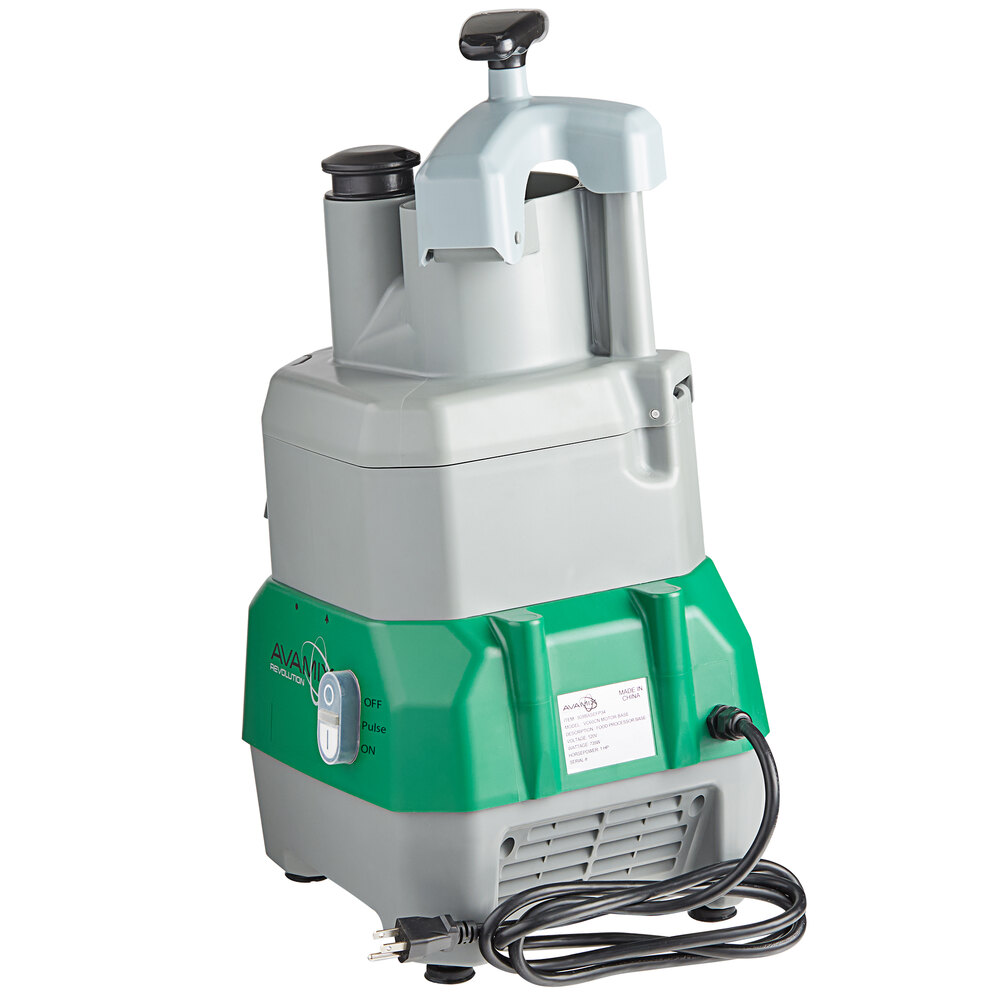

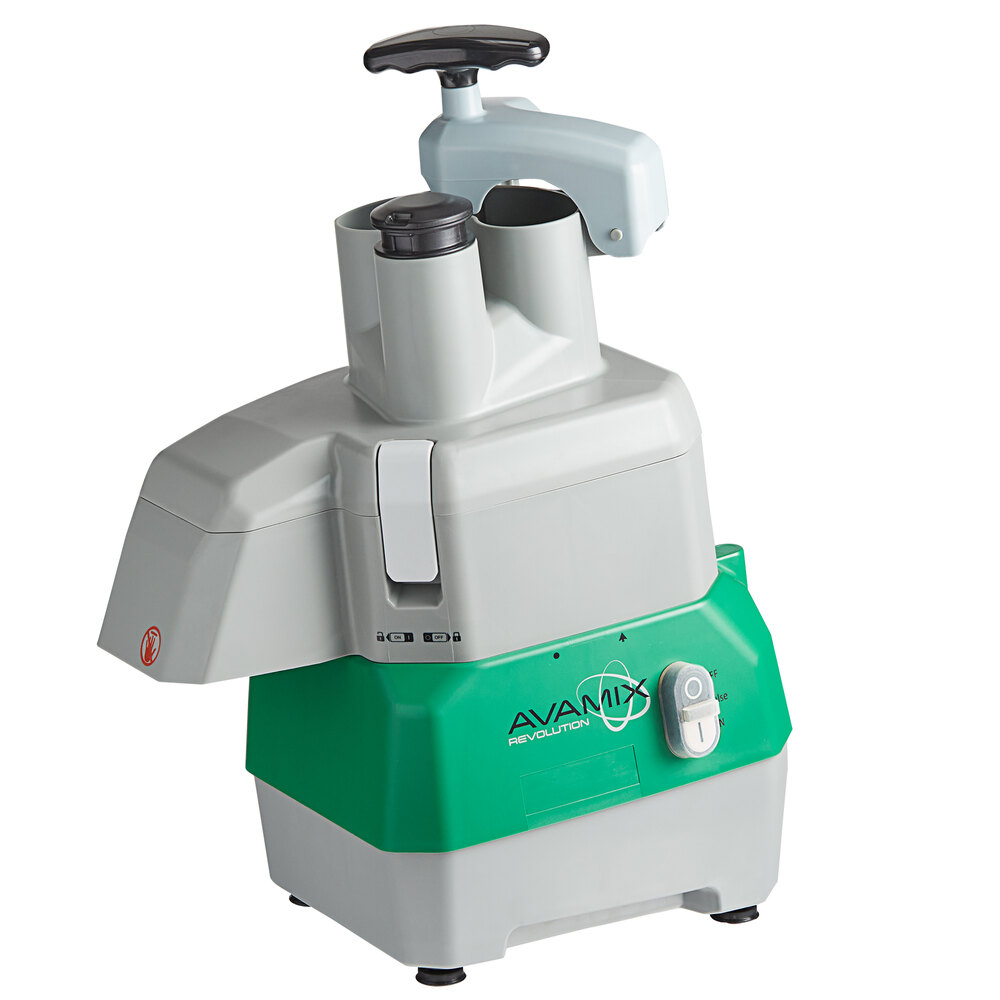

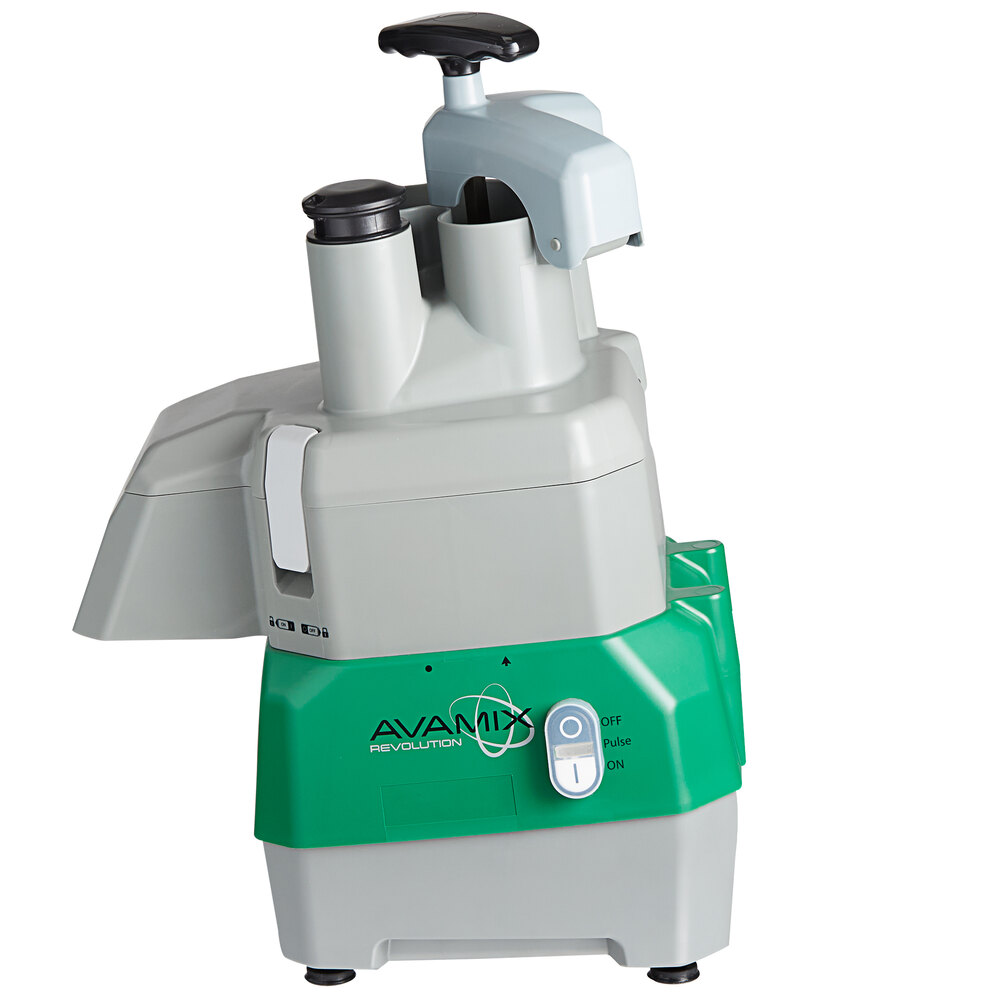

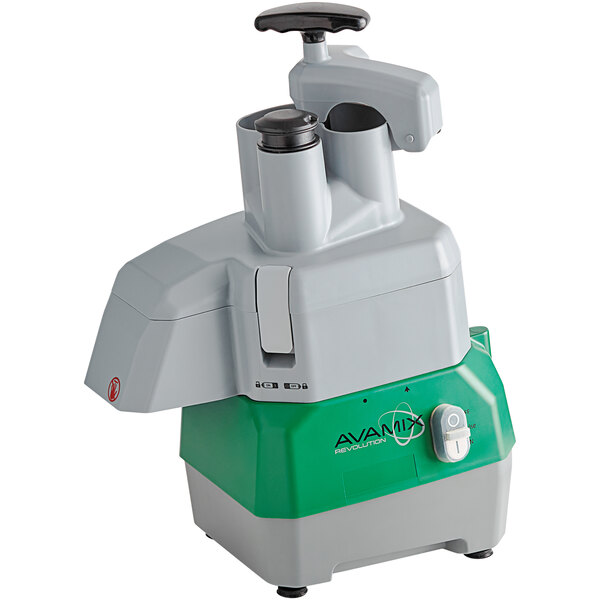

Cut down on prep time while cutting and mixing a variety of ingredients with the AvaMix Revolution CFP34D 1 hp continuous feed commercial food processor.

Reliable and easy to use, this food processor is built to withstand the demands of a commercial environment. Not only does it boast a powerful motor and stainless steel blades, it is equipped with several safety features to prevent injuries. Plus, the unit comes standard with a continuous feed attachment, speeding up preparation. A 120V electrical connection is required for operation.

  • ETL Sanitation

    ETL Sanitation

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.

  • ETL, US & Canada

    ETL, US & Canada

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

Commercial-Grade Construction

Its build includes a durable base with nonskid feet for secure use, while its direct drive motor with stainless steel motor shaft and stainless steel blades will hold up to the demands of commercial operations.

Efficient Pulse Button

With 1 hp, this robust unit packs the requisite power to handle large quantities of fruits and vegetables. Additionally, the pulse button makes processing food even faster and easier, since you can pulse until your desired consistency is achieved.

Continuous Feed Attachment

The unit comes with a continuous feed attachment to further increase prep speed and a plastic ejector disc for improved flexibility. The continuous feed attachment, which has a 6" x 3" kidney opening and 2" cylindrical opening, is ideal for processing vegetables like cucumbers, carrots, celery, and other similar product.

Magnetic Failsafe

The kidney chute, which has an included pusher, is equipped with a magnetic failsafe that automatically shuts down the motor when the pusher is removed. This helps protect the user and other kitchen staff from injury when the blades are exposed.

Easy Operation

The AvaMix CFP34D is easy to control, as it has a simple on/off switch located conveniently on the side. Plus, as an added safety precaution, the blades will not spin unless the continuous feed is completely locked in place.

Compact Design

It's also compact in size, which makes it suitable for establishments that have limited counterspace. And because it disassembles, you can easily store it away when not use.

Video is loading

0:00 / 0:00

AvaMix Food Processor Assembly

Watch this video to learn how to assemble your AvaMix food processor.

AvaMix food processors save time by quickly prepping fruits and vegetables.

To assemble the batch bowl machine, unplug the unit and place the batch bowl on the base, lining up the arrow on the bowl to the dot on the base.

Twist the bowl counterclockwise until it locks in place, and the arrows on each component line up with each other. Please note to always use caution when handling blades and discs.

Next, line up the flat part of the motor shaft with the middle of the S-blade.

Then, place the blade on the motor shaft. The blade should be parallel and about three thirty-seconds of an inch from the bottom of the bowl.

Note that if the blade is not properly installed, remove the blade, and double-check the alignment. If this doesn't work, twist the blade until it slides down into place.

If the blade does not slide into place, remove the top seal ring on the motor shaft, and restart the assembly process from the beginning.

Next, hook the lid bar on top of the bowl. Then, press down on the lid, and close it using the latch. The lid includes a safety magnet that will stop the blade once it is opened. Finally, remove the lid before taking the bowl off the base.

To assemble the continuous feed attachment, place the attachment angled on the base, and twist into place by turning it counterclockwise. It will lock into place with the exit chute straight over the front of the unit. Then, unhook the latch to open the attachment.

You now have access to switch out the cutting discs. Note that the motor shaft has a pin that is used to lock in the plates. The bottom of the pin is used to hold the plastic ejector in place.

To remove the plate, twist it counterclockwise until it clears the pins and then gently lift up.

To add a plate, line up the openings with the pins on the motor shaft. Next, lower the plate into place and twist it clockwise to lock it in place. Then, close the lid and use the latch to shut it.

Reliable and easy to use, these machines are built to withstand the demands of your busy kitchen.

Overall Dimensions:
Width:
11 Inches
Depth:
12 Inches
Attention CA Residents:

Need Parts & Accessories?

Shop replacement parts and accessories for this item today!

Resources and Downloads

AvaMix 928CFP348D SpecsheetSpecsheet928BFP-CFP-CFBB_ManualManualAvamix Warranty 1 YearWarrantySelection Guide for Food ProcessorsGuide
