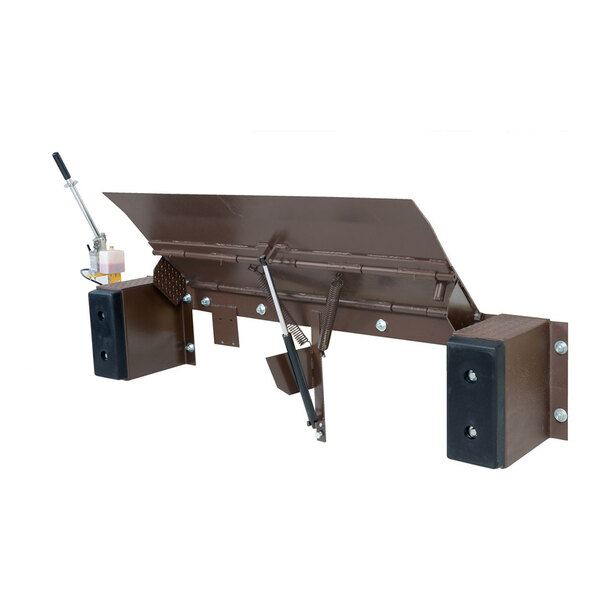

Vestil Edge-O-Dock 29 13/16" x 72" Hand Pump Steel Dock Leveler PP-3072 - 30,000 lb. Capacity
Item number 736pp3072MFR number PP-3072
$2,239.00/Each
Discounted shipping with
Earn up to $67.17 back (6,717 points)with a Webstaurant Rewards Visa® Credit Card
Usually Ships in 3-5 Business Days from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Permanently attaches to docks at least 48" high
- Solid steel construction with non-slip tread
- Simple hand pump operation with automatic retraction after trailer departure
- Includes (2) 2" x 8" x 18" side bumpers
- 30,000 lb. capacity
Works With
- Quantity
- 1/Each
- Shipping Weight
- 725 lb.
- Length
- 72 Inches
- Width
- 99 Inches
- Depth
- 17 1/2 Inches
- Height
- 27 1/2 Inches
- Platform Length
- 72 Inches
- Platform Width
- 29 13/16 Inches
- Bumper Height
- 18 Inches
- Color
- Brown
- Features
- ANSI Certified Bumpers Made in America
- Material
- Steel
- Power Type
- Manual
- Product Line
- Vestil Edge-O-Dock
- Type
- Levelers
- Weight Capacity
- 30,000 lb.
Vestil Manufacturing Co PP-3072 Details
Ensure safe, efficient passage from trailers into your loading dock with this Vestil Edge-O-Dock dock leveler. This unit is designed for permanent installation on docks at least 48" high, and it requires an existing steel dock edge, approach ramp, or approach plate for installation. It features a solid steel construction with non-slip tread for a secure grip, and it has an impressive capacity of 30,000 lb. It comes with (2) 2" x 8" x 18" bumpers and installation instructions for quick and easy setup. It offers a service range of +/- 5" above or below dock level.
This unit includes wall-mount backets along with a hand pump, cylinder, 15' hydraulic line, and oil. It uses a hydraulic hand pump system to raise the leveler and extend the lip. By rotating the release valve, the deck can be lowered to rest upon the trailer. The lip automatically retracts behind the bumper face as the trailer departs. A concrete recess is not required when installing this dock leveler.
Overall Dimensions:
Width: 99"
Depth: 17 1/2"
Height: 27 1/2"
Capacity: 30,000 lb.
Ramp Dimensions:
Length: 72"
Width: 29 13/16"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
Made in America
This item was made in the United States of America.
