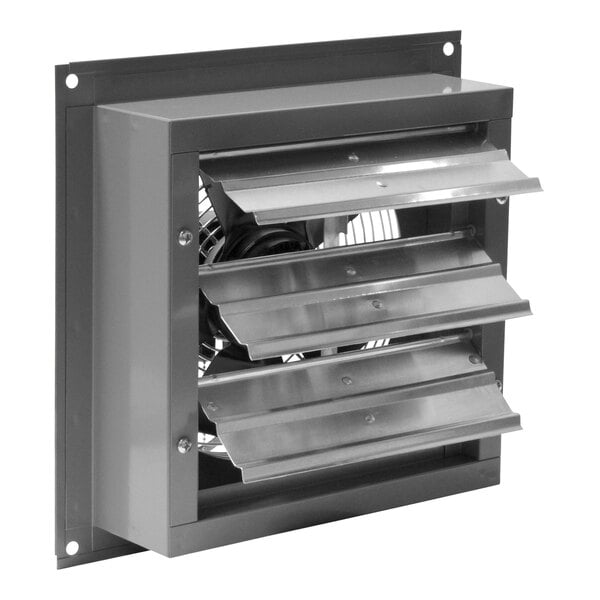

Canarm 10'' 2-Speed Standard Wall Exhaust Fan SD10 - 500 CFM, 1 Phase, 60W
Item number 664sd10MFR number SD10
$156.49/Each
Ships free with
Usually Ships in 3-5 Business Days from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Improves air quality in commercial and industrial settings
- Durable welded steel construction with powder-coated finish
- 10" aluminum or steel blade with zinc-plated heavy wire guards
- Thermal overload protection for safe use
- Efficient 60W motor produces up to 500 CFM; 115V, 1 phase
Works With
- Quantity
- 1/Each
- Shipping Weight
- 14 lb.
- Width
- 15 1/4 Inches
- Depth
- 7 7/8 Inches
- Height
- 15 1/4 Inches
- Power Cord Length
- 9 Feet
- Blade Diameter
- 10 Inches
- Amps
- 0.5 Amp
- Phase
- 1 Phase
- Voltage
- 115 Volts
- Wattage
- 60 Watts
- Assembly Options
- Fully Assembled
- Color
- Gray
- Features
- Shutters Thermal Overload Protection
- Finish
- Powder-Coated
- Installation Type
- Wall Mounted
- Material
- Aluminum Steel
- Max CFM
- 500 CFM
- Motor Type
- Enclosed
- Plug Type
- NEMA 5-15P
- RPM
- 1,480 RPM
- Speeds
- 2 Speed
- Style
- Fixed
- Type
- Exhaust Fans Wall-Mount Fans
- Usage
- Indoor
Canarm SD10 Details
Ideal for industrial and commercial settings, this Canarm standard wall exhaust fan provides ventilation to improve air quality in your facility. This rugged fan includes aluminum or steel louver shutters, allowing it to be installed from inside the wall without the need for external framing or shutters. Plus, the shutters have a tie bar to maximize airflow and a magnet that secures the louvers in place when not in operation, providing quiet operation and a superior seal. For optimal performance, it features a 2-speed, direct-drive, 60W external rotor motor that reaches up to 500 CFM on the highest setting and has a maximum RPM of 1,480. Its high-efficiency, swept-back Euro design offers maintenance-free operation, and the pull chain speed control provides ease of use.
This fan is housed in a sturdy welded steel box with a powder-coated finish for long-lasting use. It includes a durable 10" aluminum or steel blade protected by zinc-plated heavy wire guards on the intake side of the fan. The motor is completely enclosed with sealed ball bearings, and it features thermal overload protection to prevent overheating. This unit has a 9' power cord and requires a 115V, 1 phase electrical connection. For added convenience, it ships fully assembled and is simple to install using only four screws (sold separately).
Overall Dimensions:
Width: 15 1/4"
Depth: 7 7/8"
Height: 15 1/4"
Blade Diameter: 10"
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
5-15P
This unit comes with a NEMA 5-15P plug.
Fully Assembled
This item arrives fully assembled, and requires no additional assembly prior to use.
