Canarm 10'' 1-Speed Explosion Proof Standard Wall Exhaust Fan SD10-XPF - 620 CFM, 1 Phase, 1/3 hp
$689.00/Each
Ships free with
Earn up to $20.67 back (2,067 points)with a Webstaurant Rewards Visa® Credit Card
Usually Ships in 3-5 Business Days from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Improves air quality in commercial and industrial settings
- Durable welded steel construction with powder-coated finish
- 10" heavy-gauge aluminum blade with chrome-plated heavy wire guards
- Thermal overload protection for safe use
- Explosion-proof 1/3 hp ball bearing motor produces up to 620 CFM; 115/230V, 1 phase
- Quantity
- 1/Each
- Shipping Weight
- 38 lb.
- Width
- 15 1/4 Inches
- Depth
- 17 1/2 Inches
- Height
- 15 1/4 Inches
- Blade Diameter
- 10 Inches
- Amps
- 6.6/3.3 Amps
- Phase
- 1 Phase
- Voltage
- 115/230 Volts
- Assembly Options
- Fully Assembled
- Color
- Gray
- Features
- Explosion Proof Shutters Thermal Overload Protection
- Horsepower
- 1/3 hp
- Installation Type
- Wall Mounted
- Material
- Aluminum Steel
- Max CFM
- 620 CFM
- Motor Type
- Open Ventilated
- Plug Type
- Hardwire
- RPM
- 1,725 RPM
- Speeds
- 1 Speed
- Style
- Fixed
- Type
- Wall-Mount Fans
- Usage
- Indoor
Canarm SD10-XPF Details

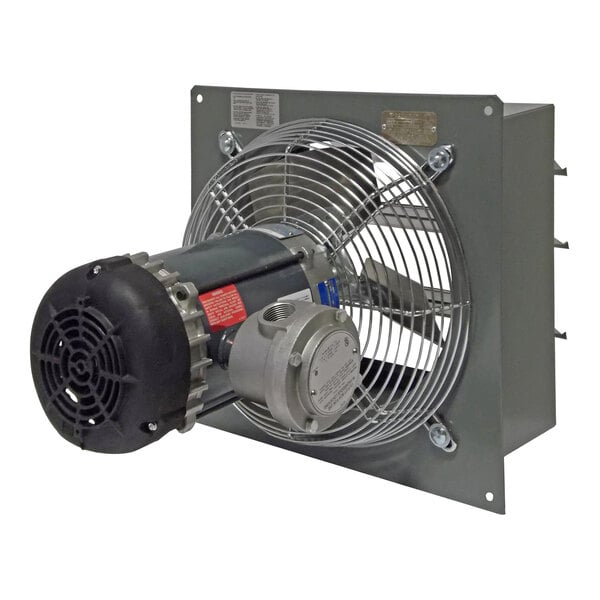

Ideal for industrial and commercial settings, this Canarm explosion-proof standard wall exhaust fan provides ventilation to improve air quality in your facility. This rugged fan includes aluminum louver shutters with nylon bushings, allowing it to be installed from inside the wall without the need for external framing or shutters. For optimal performance, it features a 1-speed, direct-drive, 1/3 hp motor that can reach up to 620 CFM at 1,725 RPM. The motor features an explosion-proof design that won't spark or accumulate static, perfect for ventilating hazardous areas that may contain gas, vapor, or dust in explosive quantities.
This fan is housed in a sturdy welded steel box with a powder-coated finish for long-lasting use. It includes a durable 10" heavy-gauge aluminum blade protected by chrome-plated heavy wire guards on the intake side of the fan. The ball bearing motor is completely enclosed, and it features thermal overload protection to prevent overheating. This unit requires a 115/230V, 1 phase electrical connection. It ships fully assembled for your convenience.
Overall Dimensions:
Width: 15 1/4"
Depth: 17 1/2"
Height: 15 1/4"
Blade Diameter: 10"
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
Fully Assembled
This item arrives fully assembled, and requires no additional assembly prior to use.
