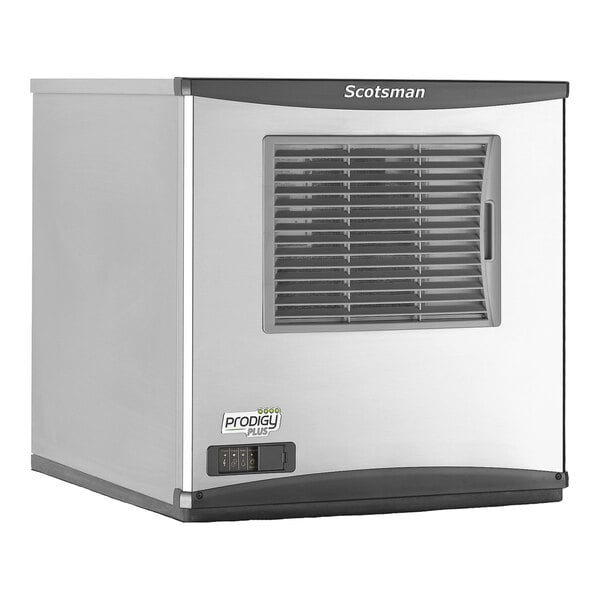

Scotsman NS0422AX-1A Prodigy® Plus Series 22" Air-Cooled Nugget Ice Machine - 430 lb., 115V
Item number 720nsx422a1MFR number NS0422AX-1A
$4,760.00/Each
Ships free withEarn up to $142.80 back (14,280 points)with a Webstaurant Rewards Visa® Credit Card
Installation Services
Check if installation is currently available for your area.Quick Shipping
Usually ships in 1 business day
Product Overview
- Produces up to 430 lb. of chewable nugget ice per day
- Agion antimicrobial protection inhibits the growth of harmful pathogens
- AutoAlert indicator lights signal when to descale and sanitize
- Uses up to 40% less water and 15% less energy than cube ice machines
- Compact and front-breathing for flexible installation
UPC Code:400017855561
Works With
- Quantity
- 1/Each
- Shipping Weight
- 153 lb.
- Width
- 22 Inches
- Depth
- 24 Inches
- Height
- 23 Inches
- Amps
- 11.1 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- 24 Hour Ice Yield
- 430 Pounds
- Ambient Temperature Range
- 50 - 100 Degrees F
- Condenser Type
- Air Cooled
- Features
- Made in America NSF Certified
- Ice Type
- Chewable Nugget
- Installation Type
- Modular
- Plug Type
- Hardwire
- Power Usage
- 4.04 kWh per 100 lbs.
- Product Line
- Scotsman Prodigy® Plus
- Refrigerant Type
- R-290
- Type
- Ice Machines
- Water Inlet Size
- 3/4 Inches
- Water Pressure Range
- 20 - 80 PSI
- Water Temperature Range
- 40 - 100 Degrees F
- Water Usage
- 12 Gallons Per 100 lbs.
Scotsman NS0422AX-1A Details
Create a reliable ice system in your establishment with this Scotsman Prodigy® Plus series ice machine! This machine produces 430 lb. of soft, chewable nugget ice per day, making it perfect for settings such as restaurants, hotels, and hospitals. This ice displaces more liquid than cubed ice to lower syrup costs per cup in mixed drinks and fountain beverages. This machine uses up to 40% less water and 15% less energy than cube ice machines to lower operating costs.
This ice machine has a space-saving compact footprint, and it is front-breathing for flexible installation. It features a durable stainless steel evaporator and auger, and it has sealed, maintenance-free bearings for a long-lasting performance. This unit has Agion antimicrobial protection molded into its key components to inhibit the growth of harmful pathogens. Its AutoAlert lights clearly indicate when it is time to descale and sanitize.
This energy-efficient model consumes 4.04 kWh of energy and uses only 12 gallons of water per 100 lb. of ice produced. It features a removable front panel for easy servicing. Its air filter is located on the outside of the front panel, making it easy to remove, clean, and reuse. This ice machine includes a unit-specific QR code that instantly connects users to warranty and service information. It uses R-290 refrigerant and requires a 115V electrical connection for operation.
Overall Dimensions:
Width: 22"
Depth: 24"
Height: 23"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

3/4" Water Connection
This unit comes with a 3/4" water connection for water supply.

Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.

NSF Certified
This item is certified by NSF to applicable standards.

Made in America
This item was made in the United States of America.

UL Certified
This product is certified to applicable standards and requirements by UL Solutions.
