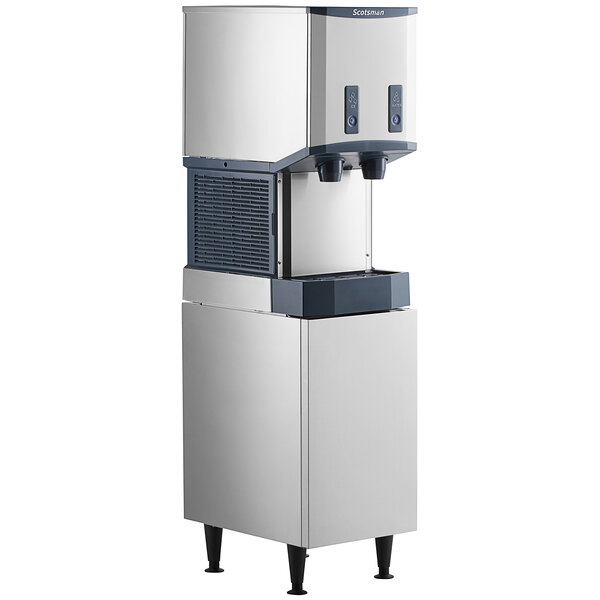

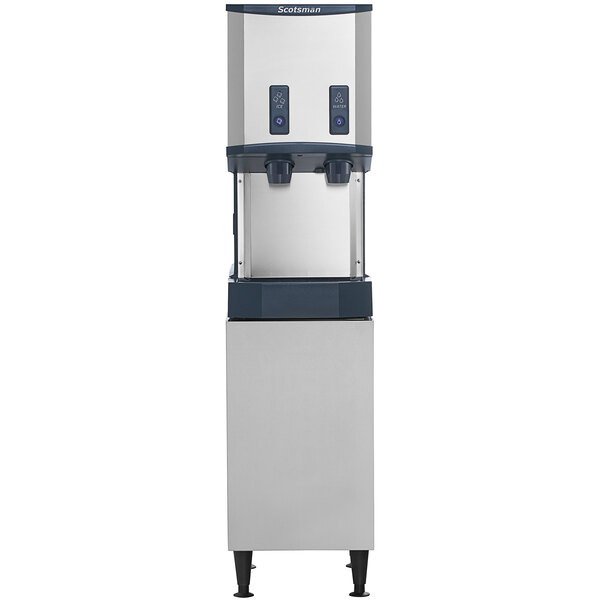

Scotsman HID312ABX-1A Meridian® 16 1/4" Air-Cooled Nugget Ice Machine with 12 lb. Bin, Push Button Ice and Water Dispensing, and Equipment Stand - 320 lb., 115V
Item number 720kx31ab16b
$6,470.00/Each
Ships free withEarn up to $194.10 back (19,410 points)with a Webstaurant Rewards Visa® Credit Card
Product Overview
- Dispenses both ice and water in a compact footprint
- Produces up to 320 lb. of nugget ice per day and stores up to 12 lb.
- Includes an enclosed stainless steel equipment stand
- Easy to operate with push-button dispensing
- Intuitive diagnostic LED lights help reduce service times
Works With
$102.49/Case
$7.69/Each
$8.99/Each
$169.99/Each
$33.99/Each
$52.99/Each
- Quantity
- 1/Each
- Shipping Weight
- 225 lb.
- Width
- 16 1/4 Inches
- Depth
- 24 3/8 Inches
- Height
- 35 Inches
- Power Cord Length
- 7 1/2 Feet
- Stand Width
- 16 1/2 Inches
- Stand Depth
- 23 3/4 Inches
- Stand Height
- 32 Inches
- Amps
- 15 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- 24 Hour Ice Yield
- 320 Pounds
- Bin Storage Capacity
- 12 lb.
- Color
- Silver
- Condenser Type
- Air Cooled
- Dispenser Style
- Push Button
- Features
- Made in America
- Ice Type
- Nugget
- Installation Type
- Freestanding
- Plug Type
- NEMA 5-15P
- Power Usage
- 4.11 kWh per 100 lbs.
- Product Line
- Scotsman Meridian®
- Refrigerant Type
- R-290
- Type
- Ice / Water Combination Machines
- Water Inlet Size
- 3/8 Inches
- Water Usage
- 12 Gallons Per 100 lbs.
Details
Ensure style and functionality within your beverage service lineup with this Scotsman Meridian® countertop ice machine and water dispenser. This unit dispenses both ice and water in one convenient location, allowing you to provide refreshing, cool beverages to your customers. With SmoothStream water dispensing technology, it offers reduced splashing to keep the machine and surrounding areas clean. It features a 24-hour yield of 320 lb. of 3/4" x 5/16" x 3/8" nugget ice and has a built-in ice bin with a 12 lb. storage capacity. One of the most popular forms around, nugget ice is light, airy, chewable, and slow-melting, and it retains some of the drink's flavor. This energy-efficient, air-cooled unit operates quietly using R-290 refrigerant, and its sealed refrigeration system minimizes airborne contamination.
This unit has push buttons for quick and easy dispensing. Plus, it has Agion and other antimicrobial compounds molded into its key components to inhibit the growth of harmful pathogens, ensuring your ice is suitable for consumption. It has a durable stainless steel evaporator and exterior panels, and it features a large sink opening and spacious dispensing area with an 11" clearance. It includes intuitive diagnostic LED lights to reduce service times and a USB drive for quick software updates. It includes a unit-specific QR code that instantly connects users to warranty and service information. Its sealed bearings, fully removable bin, air filter, sink, grill, and spouts, and front-accessible air filter provide easy upkeep.

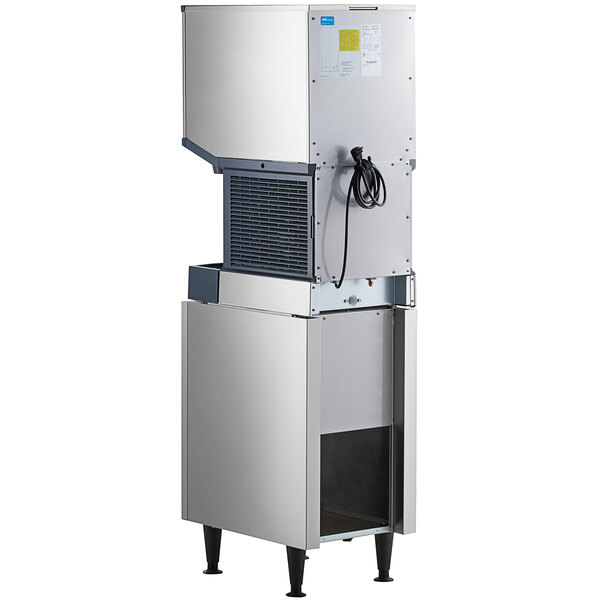

This unit comes with a sturdy Scotsman enclosed equipment stand to save valuable counter space and keep your machine out of the way. This stand is made of durable stainless steel for easy cleaning and maintenance, and it has a back panel that allows you to run the necessary utilities to your dispenser. Its 6" adjustable legs provide leveling on uneven floors and allow for easy cleaning underneath, while its door conceals the interior. This ice machine requires a 115V electrical connection for operation, and it comes with a 7 1/2' power cord.
Kit Includes:
- Scotsman ice machine (Item 720HID312ABX1A)
- Scotsman enclosed equipment stand (Item 720HST16BA)
Ice Machine Dimensions:
Width: 16 1/4"
Depth: 24 3/8"
Height: 35"
Bin Capacity: 12 lb.
Stand Dimensions:
Width: 16 1/2"
Depth: 23 3/4"
Height: 32"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Made in America
This item was made in the United States of America.

5-15P
This unit comes with a NEMA 5-15P plug.

3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.
