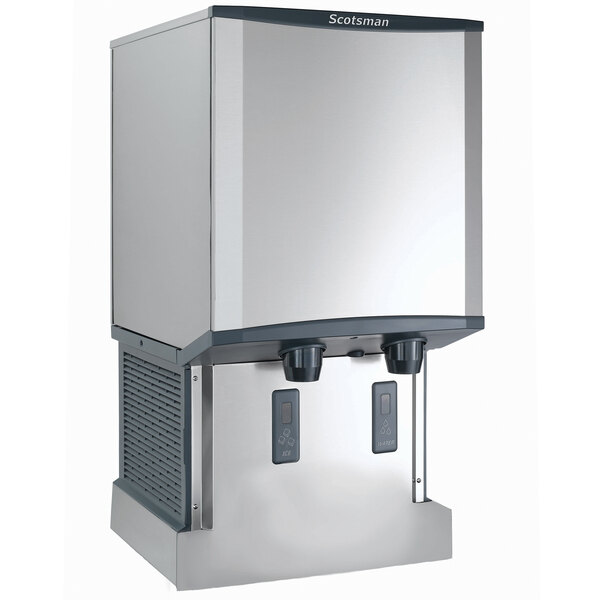

Scotsman HID540AWX-1A Meridian® Wall-Mount Air-Cooled Nugget Ice Machine and Water Dispenser with Hands-Free Dispensing - 40 lb. Bin Capacity

Item number  720hid540awx1aMFR number  HID540AWX-1A
Free Shipping

$9,207.00/Each

Accessories & Options

Earn up to $276.21 back (27,621 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 2-3 Business Days from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Dispenses both ice and water in a compact footprint
  • Produces up to 500 lb. of nugget ice per day and stores up to 40 lb.
  • Infrared sensors provide touch-free, sanitary dispensing
  • Intuitive diagnostic LED lights help reduce service times
  • Wall-mount design installs over an existing sink
UPC Code:00840315405295

Scotsman HID540AWX-1A Specs

Quantity
1/Each
Shipping Weight
220 lb.
Width
23 1/4 Inches
Depth
24 3/8 Inches
Height
41 Inches
Power Cord Length
7 1/2 Feet
Amps
15 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
115 Volts
24 Hour Ice Yield
500 Pounds
Bin Storage Capacity
40 lb.
Color
Silver
Condenser Type
Air Cooled
Dispenser Style
Sensor
Features
ADA Compliant Hands Free Made in America NSF Listed
Ice Type
Nugget
Installation Type
Wall Mounted
Plug Type
NEMA 5-15P
Power Usage
4.18 kWh per 100 lbs.
Product Line
Scotsman Meridian®
Refrigerant Type
R-290
Type
Ice / Water Combination Machines
Water Inlet Size
3/8 Inches
Water Usage
12 Gallons Per 100 lbs.

Scotsman HID540AWX-1A Details

Ensure style and functionality within your beverage service lineup with this Scotsman Meridian® wall-mount ice machine and water dispenser. This unit dispenses both ice and water in one convenient location, allowing you to provide refreshing, cool beverages to your customers. It features a 24-hour yield of 500 lb. of 3/4" x 5/16" x 3/8" nugget ice and has a built-in ice bin with a 40 lb. storage capacity. One of the most popular forms around, nugget ice is light, airy, chewable, and slow-melting. It also retains some of the drink's flavor.

This combination unit has infrared sensors for touch-free, sanitary dispensing. Plus, it has Agion and other antimicrobial compounds molded into its key components to inhibit the growth of microbes, bacteria, mold, and algae, ensuring your ice is suitable for consumption. This compact, space-saving model is designed to wall mount over an existing sink, ensuring it won't take up valuable counter or floor space. Its contoured sides and external air filter provide better breathability in tight spaces.

This energy-efficient, air-cooled unit operates quietly using R-290 refrigerant. Its sealed refrigeration system minimizes airborne contamination. It has a durable stainless steel evaporator and exterior panels, and it features a large sink opening and spacious dispensing area. With SmoothStream water dispensing technology, it offers reduced splashing to keep the machine and surrounding areas clean.

This unit features sealed bearings and a fully removable bin, air filter, sink, grill, and spouts for simplified maintenance and cleaning. Plus, its air filter is accessible from the front for easy removal. It includes intuitive diagnostic LED lights to reduce service times and a USB drive for quick software updates. When you need documents related to your ice machine or want to check on the warranty status, the unit-specific QR code lets you find all the information you need by simply scanning the code with your mobile device. This unit requires a 115V electrical connection for operation, and it comes with a 7 1/2' power cord.

Overall Dimensions:
Width: 23 1/4"
Depth: 24 3/8"
Height: 41"
Bin Capacity: 40 lb.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • 3/8" Water Connection

    3/8" Water Connection

    This unit comes with a 3/8" water connection for water supply.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • Hands-Free/Touchless

    Hands-Free/Touchless

    This item is designed for hands-free use, which reduces the risk of cross-contamination and prevents germs from spreading.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • Made in America

    Made in America

    This item was made in the United States of America.

  • ADA Compliant

    ADA Compliant

    This item meets criteria established by the Americans with Disabilities Act (ADA).

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

Ask about this product
By using this AI-powered search, you agree to our Terms of Use and Privacy Policy.

Frequently Asked Questions From Customers

I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?
R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.
