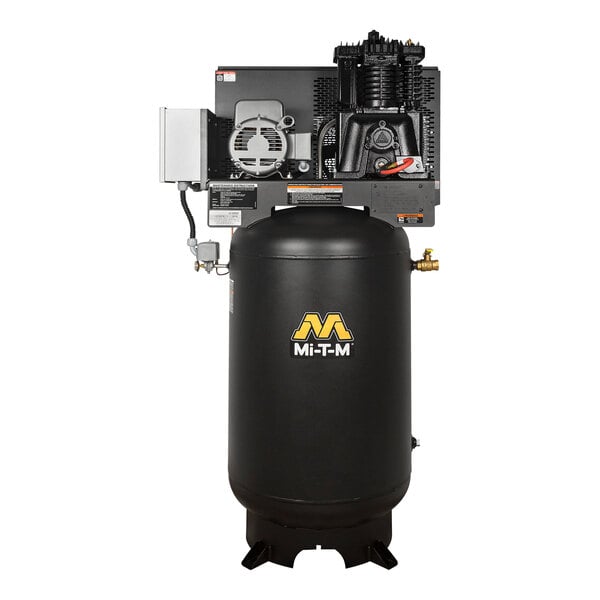

Mi-T-M 80 Gallon Carbon Steel Two-Stage Stationary Electric Simplex Vertical Air Compressor ACS-20305-80V - 3 Phase, 5 hp
Usually Ships in 5-7 Business Days from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Durable powder-coated alloy carbon steel vertical receiver tank
- Cast iron compressor pump with splash lubrication and stainless steel braided discharge hose
- Two-stage, 5 hp, 860 RPM industrial electric motor with magnetic start
- Thermal overload protection
- 18 CFM at 175 PSI and a maximum of 200 PSI
Other Products from this Line
$3,399.00/Each
$7,509.00/Each
$4,079.00/Each
$5,799.00/Each
$5,499.00/Each
$6,259.00/Each
$649.00/Each
$409.99/Each
$1,499.00/Each
$1,239.00/Each
$1,459.00/Each
$2,019.00/Each
$2,289.00/Each
$2,319.00/Each
- Quantity
- 1/Each
- Shipping Weight
- 584 lb.
- Length
- 33 Inches
- Width
- 25 Inches
- Height
- 73 Inches
- Amps
- 16.1 Amps
- Phase
- 3 Phase
- Voltage
- 200 Volts
- Air Pressure
- 175 - 200 PSI
- Airflow Rating
- 18 CFM
- Features
- Made in America Magnetic Starter Thermal Overload Protection With Hose With Pump
- Finish
- Powder-Coated
- Horsepower
- 5 hp
- Installation Type
- Stationary
- Material
- Steel
- Plug Type
- Hardwire
- Power Type
- Electric
- RPM
- 860 RPM
- Stages
- 2 Stage
- Tank Capacity
- 80 Gallons
- Tank Style
- Vertical
- Type
- Air Compressors
Mi-T-M Corporation ACS-20305-80V Details
Maximize efficiency in your workshop or service bay with this Mi-T-M stationary air compressor! This air compressor is equipped with a durable powder-coated alloy carbon steel vertical receiver tank that ensures longevity and reliability. The cast iron compressor pump features splash lubrication and a stainless steel braided discharge hose for enhanced performance and durability. Powered by a two-stage, 5 hp, 860 RPM industrial electric motor with a magnetic start for thermal overload protection, it's specifically designed to handle heavy-duty tasks with ease.
With a robust 18 CFM at 175 PSI and a maximum of 200 PSI, this air compressor is built to deliver consistent, reliable performance. The oil level sight indicator, safety valves, tank pressure gauge, hour meter, large flywheel, intake filter / silencer, and tank shut-off valve provide added safety and convenience during operation. Its large canister intake filter ensures clean air intake. The durable frame is equipped with a 3/16" base plate to minimize vibration and a two-piece powder-coated belt guard. This unit requires a 200V, 3 phase power connection for operation.
Overall Dimensions:
Length: 33"
Width: 25"
Height: 73"
Capacity: 80 gallons
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
Made in America
This item was made in the United States of America.
ASME U Stamp
This item meets standards imposed by ASME as part of the BPVC certification program that ensures the item conforms to the rules governing the design, fabrication, assembly, and inspection of boiler and pressure vessel components.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
