Mi-T-M 5 Gallon Carbon Steel Single-Stage Portable Electric Horizontal Twin Tank Air Compressor AM1-HE02-05M - 2 hp
Usually Ships in 5-7 Business Days from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Durable powder-coated 14 gauge carbon steel twin tank assembly
- Cast iron cylinder compressor pump with splash lubricated aluminum crankcase
- Single-stage 2 hp electric motor with thermal overload protection
- 4.2 CFM at 90 PSI and a maximum of 200 PSI
- 8' power cord
- Quantity
- 1/Each
- Shipping Weight
- 67 lb.
- Length
- 20 1/2 Inches
- Width
- 15 1/2 Inches
- Height
- 17 1/2 Inches
- Power Cord Length
- 8 Feet
- Amps
- 15 Amps
- Voltage
- 120 Volts
- Air Pressure
- 90 - 200 PSI
- Airflow Rating
- 4.2 CFM
- Features
- Drain Valve Electric Start Made in America Portable Thermal Overload Protection With Hose With Pump
- Finish
- Powder-Coated
- Handle
- With Handle
- Horsepower
- 2 hp
- Installation Type
- Portable
- Material
- Steel
- Plug Type
- NEMA 5-15P
- Power Type
- Electric
- Stages
- 1 Stage
- Tank Capacity
- 5 Gallons
- Tank Style
- Horizontal
- Type
- Air Compressors
Mi-T-M Corporation AM1-HE02-05M Details

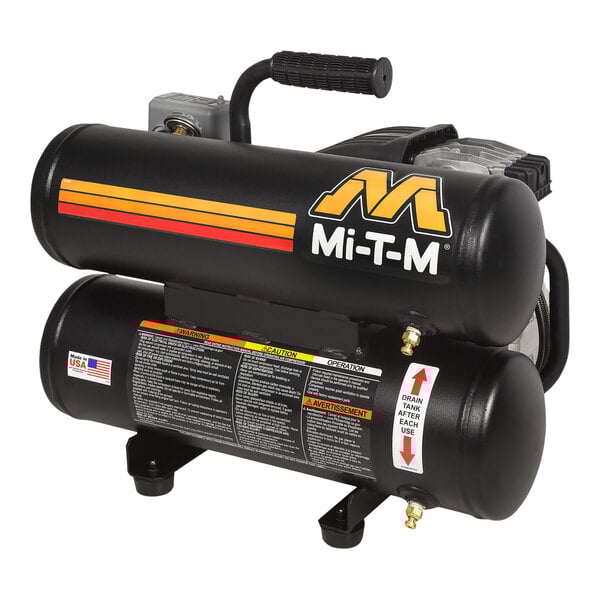

Boost productivity and efficiency with this Mi-T-M electric air compressor. This compact unit is ideal for small, interior jobs where portability is essential and space is limited. The durable powder-coated 14 gauge carbon steel twin tank assembly ensures longevity and reliability while the cast iron cylinder compressor pump with splash lubricated aluminum crankcase delivers consistent performance. The inlet air filter ensures clean air intake, and the compressor pump boasts a stainless steel braided discharge hose for added durability. Equipped with a single-stage 2 hp electric motor featuring thermal overload protection, it's built to handle tough tasks with ease.
With a 4.2 CFM at 90 PSI output and a maximum of 200 PSI, this unit provides ample air power for various applications. It comes with a protective pump / motor housing, a regulator, and two gauges for tank and outlet pressure monitoring. Additionally, it features drain and pressure relief valves and industrial interchange quick-connect fittings. The start / stop control is conveniently set at 95 to 125 PSI for optimal performance. Its compact design and built-in handle make it easy to transport this portable air compressor from one job site to another, ensuring versatility and efficiency in your daily tasks.
The 8' power cord offers flexibility and convenience, allowing you to move freely around your workspace. This unit requires a 120V power connection for operation. Get the job done quickly and effectively with the Mi-T-M electric air compressor!
Overall Dimensions:
Length: 20 1/2"
Width: 15 1/2"
Height: 17 1/2"
Capacity: 5 gallons
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
Made in America
This item was made in the United States of America.
5-15P
This unit comes with a NEMA 5-15P plug.
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
