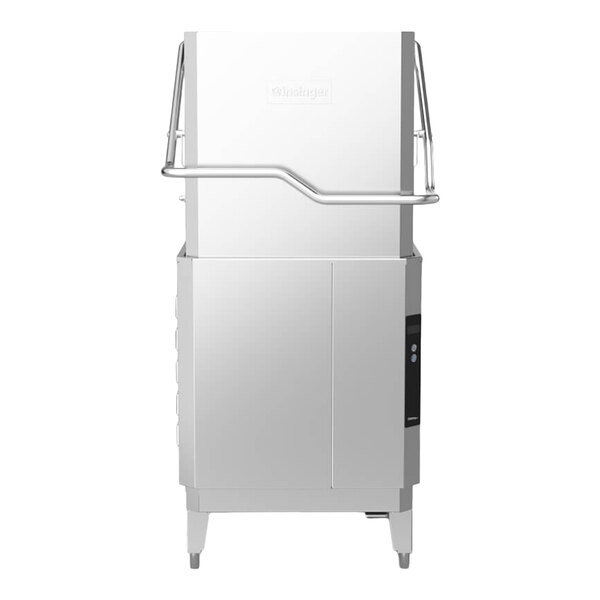

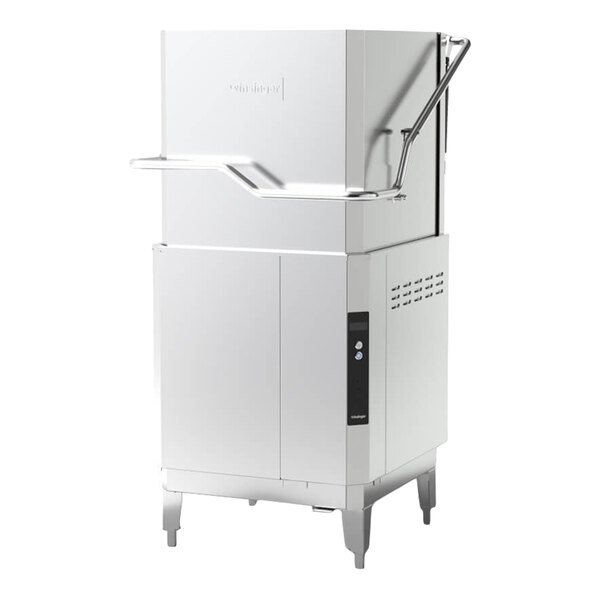

Insinger CX20 Door-Type High Temperature Dishwasher with HeatCore Booster Heater - 208V, 1 Phase

Insinger CX20 208/60/1 Details

Thoroughly clean and sanitize racks of dishware and cookware quickly and easily with this Insinger CX20 door-type high temperature dishwasher! This powerful, energy-efficient dishwasher combines a durable 304 stainless steel frame, legs, and adjustable feet with high-temperature sanitization for a reliable, easy-to-use dishwashing solution designed for high-traffic commercial kitchen environments. This dishwasher features 3 wash cycles, with a standard cycle, an extended cycle, and a heavy cycle, each with the right balance of power to ensure spotless results with every wash. Designed for versatility, this door-type dishwasher is made for convenient access with a 17 1/8" door opening for maximum clearance. It's designed for convenient use with a front-mounted wash tank, an easy-glide door with an Ergo-Grip door handle that ensures smooth corner installations without modification, and a foot-operated drain pedal. It also features gas springs for the door hood, a door safety switch, a hinged dish rack support, and dish rack guides that nest and lock for rack security.

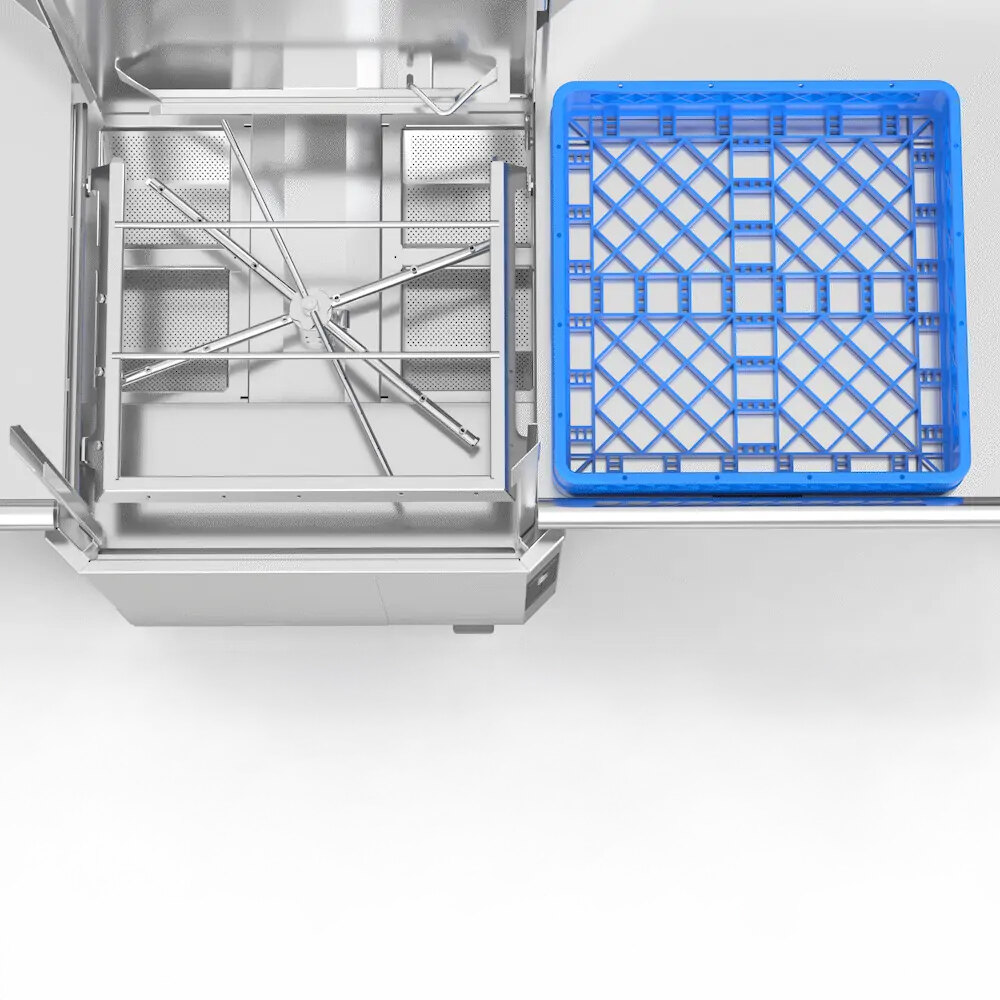

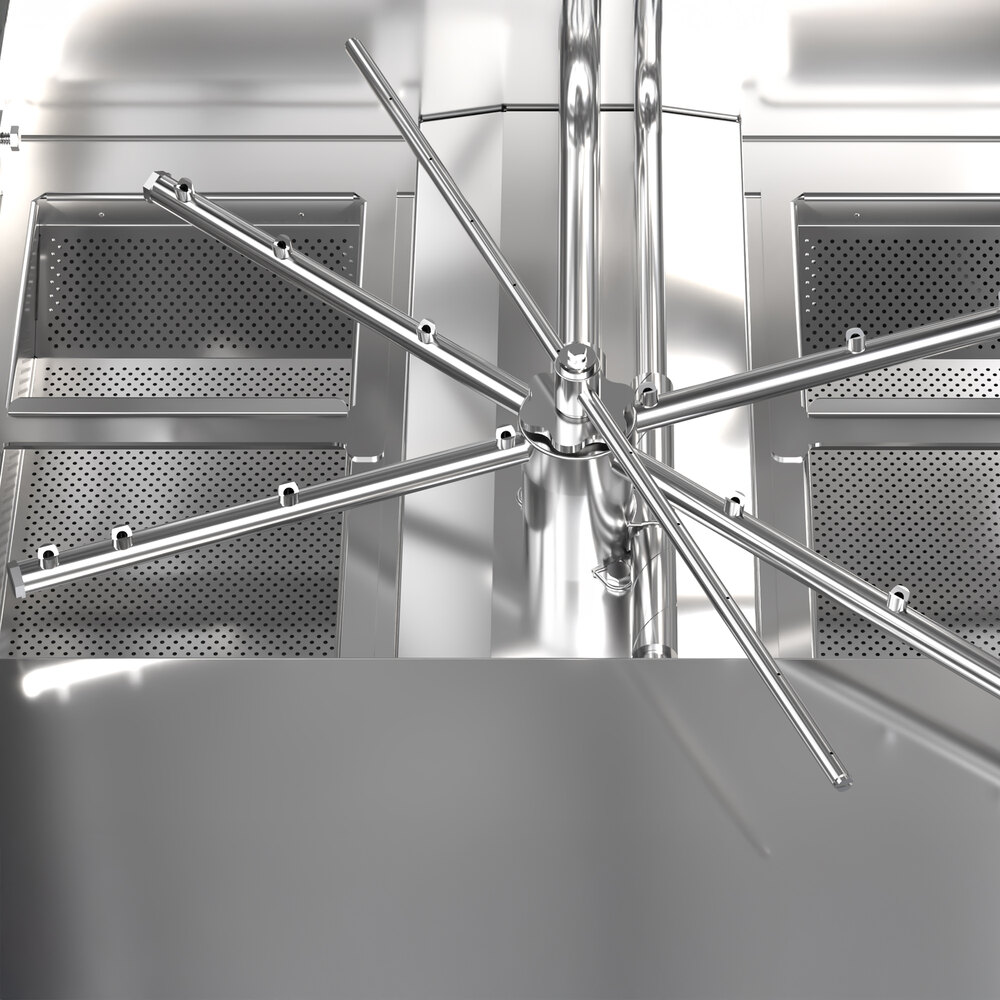

This dishwasher features a 17.5 gallon wash tank capacity. It washes up to (60) 20” x 20” racks per hour for 1,500 dishes, 2,400 glasses, or 2,400 meals per hour, using only 0.65 gallons of water per rack at 20 PSI for 38.4 gallons per hour. It features a quad-arm wash system for full rack coverage, and RackAware rack detection that optimizes water and energy use by automatically sensing when dish racks are present. This ensures that the wash and rinse cycles only activate when needed, significantly reducing water and energy consumption. The unit features a drain flow peak rate of 35 gallons per minute, an overflow designed for energy conservation with low-water protection, oversized scrap screens, and a detergent connection provision with a dedicated de-lime cycle for easy cleaning. This single-point electrical unit requires a 208V connection for operation.

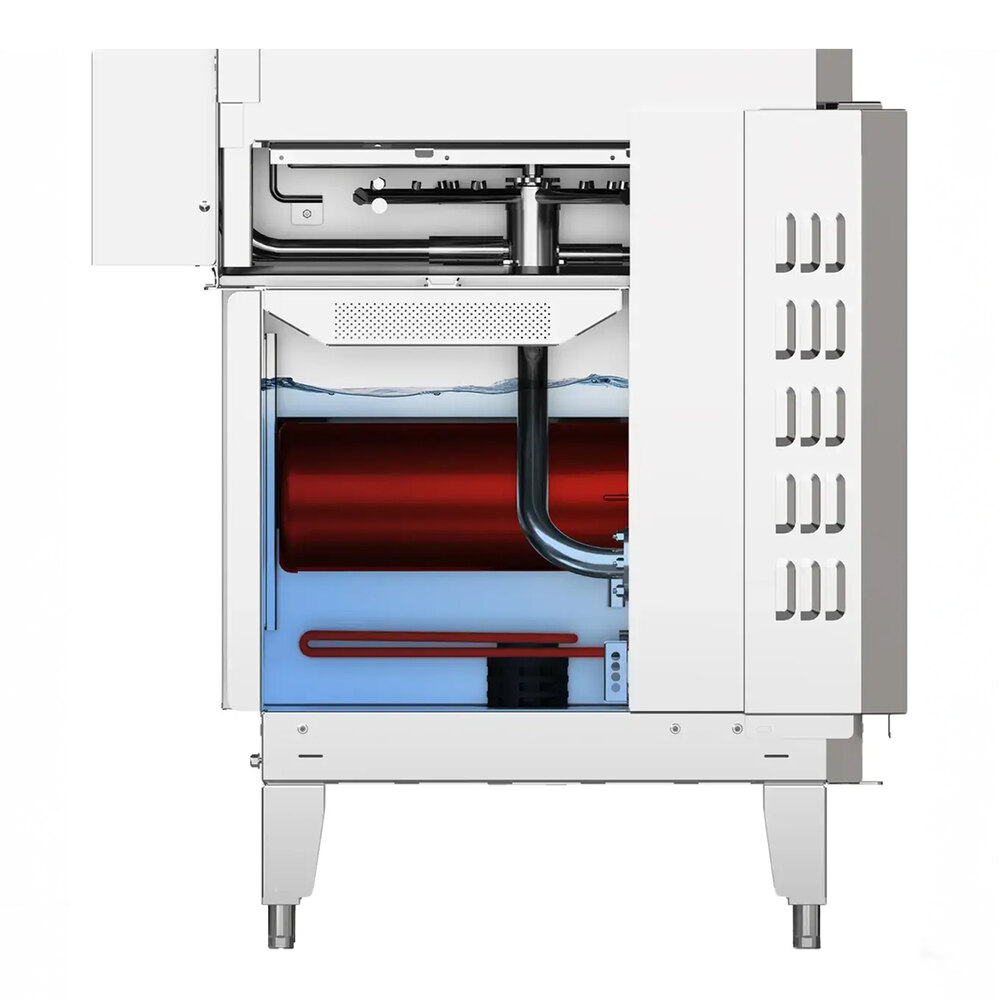

This powerful 1 phase dishwasher features a water temperature range from 110-160 degrees Fahrenheit. It also features a 1.5 hp wash motor with a built-in HeatCore submerged booster heater designed for high-temperature warewashing. The booster heater tank features a 2.3 gallon capacity, and it's welded to the wash tank to absorb and transfer radiant heat more efficiently. This item’s steam tank consumes 11 lb. per hour with a steam consumption rate range of 22-43 lb. per hour and a rise range of 40-70 degrees Fahrenheit. This unit features a StatusGlow LED indicator bar, a swing-out corner control panel with a waterproof IP67 control board for protection from moisture, and anti-vandal stainless steel buttons. This item is compatible with select Insinger accessories like additional racks, external panel kits, external steam boosters, a drain quench system, and an additional security package (sold separately).

Overall Dimensions:
Width: 29 3/8"
Depth: 37 3/4"
Height (Open): 76 1/8”-76 5/8"
Height (Closed): 57 3/8”-57 7/8"
