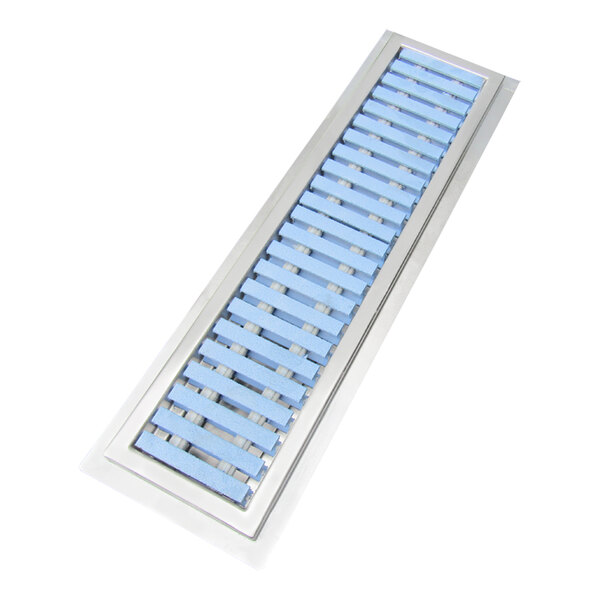

IMC/Teddy NWR-60-PFG-ADA NWR 6" x 60" 16 Gauge Stainless Steel Floor Trough with Fiberglass Grating and 3" x 4" Outlet
Product Overview
- 16 gauge type 304 stainless steel with brushed satin-finished exposed surfaces
- 4" depth with integral pitch that directs fluid toward drain for complete drainage
- Horizontal corners with leakproof, TIG-welded joints
- Flat, perforated strainer with a 3" tailpiece that has a 4" (OD) waste outlet
- Anti-slip, corrosion-resistant, and fire-retardant pultruded fiberglass grating
- Quantity
- 1/Each
- Shipping Weight
- 65 lb.
- Length
- 60 Inches
- Width
- 6 Inches
- Depth
- 4 Inches
- Outlet Diameter
- 3 Inches
- Color
- Blue Silver
- Features
- ADA Compliant Corrosion-Resistant Made in America NSF Listed
- Finish
- Satin
- Gauge
- 16 Gauge
- Material
- Fiberglass Stainless Steel
- Stainless Steel Type
- Type 304
- Style
- Stainless Steel Grate
- Type
- Floor Troughs
IMC/Teddy NWR-60-PFG-ADA Details
Keep your floors sanitary and safe with this IMC/Teddy NWR stainless steel floor trough! This floor trough is made with durable 16 gauge type 304 stainless steel with brushed satin-finished exposed surfaces and TIG-welded, leakproof joints. This item features a 4" depth with horizontal corners and is designed with an integral pitch that directs fluid toward the drain for complete drainage. This item is compatible with any style of IMC/Teddy grating as well as accessories (sold separately) and is ideal for a variety of food equipment layouts.
This trough's waste outlet features a flat, perforated strainer with a 3" tailpiece that has a 3" outlet diameter (OD) waste outlet. A recessed flange and a 1" deep ledge support floor tiles and provide a grout pocket. This item features PFG ADA-compliant blue pultruded fiberglass grating that is designed to be light weight, durable, corrosion-resistant, and fire-retardant with an anti-slip surface for added safety. This low-maintenance grating is made with 1" depth "I" bars with a 5/8" wide top flange and 7/16" clearance between bars. The grating is designed with quick, thorough cleaning in mind. The floor trough is ideal for use in commercial and institutional settings where food equipment is present and large food prep facilities with high volume, rapid discharge applications. It's perfect for placement in front of ice machines, walk-in refrigerators and freezers, and in areas with large amounts of water present in tight spaces.
Overall Dimensions:
Length: 60"
Width: 6"
Depth: 4"
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Made in America
This item was made in the United States of America.
ADA Compliant
This item meets criteria established by the Americans with Disabilities Act (ADA).
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
