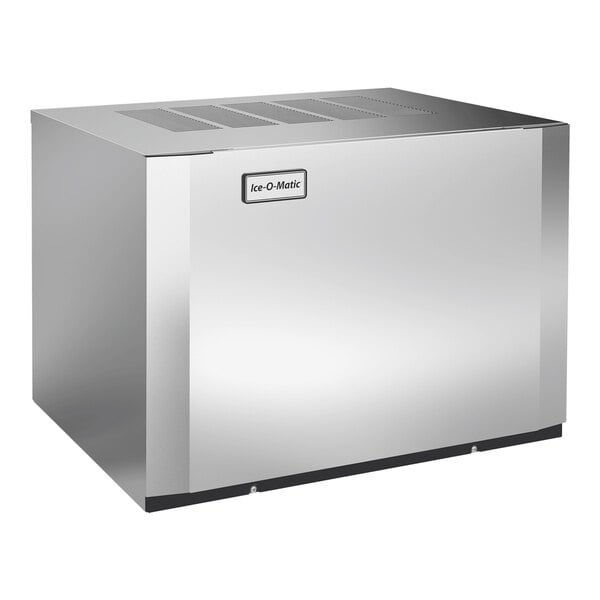

Ice-O-Matic CIM0530HT90 Elevation Series 30" Air-Cooled Half Dice Cube Ice Machine with Top Air Discharge - 115V; 525 lb.

Item number  458cimx530ht90MFR number  CIM0530HT90

Free Shipping

$3,429.00/Each

Ships free with Plus
Accessories & Options

What We Offer

shield icon

Protect Your Product

Coverage starting at $164.55

Earn up to $102.87 back (10,287 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 1 -2 Business Days from manufacturer

Lead times vary based on manufacturer stock

Product Overview

  • Produces up to 525 lb. of half cube ice per day
  • Front-facing evaporator and dishwasher-safe components for simple cleaning
  • Equipped with energy-efficient and environmentally friendly R-290 refrigerant
  • Features Harvest Assist for consistent ice production, energy reduction, and increased capacity
  • Corrosion-resistant and fingerprint-proof aluminum construction
UPC Code:400017904771

Ice-O-Matic CIM0530HT90 Specs

Quantity
1/Each
Shipping Weight
198 lb.
Width
30 1/4 Inches
Depth
24 1/4 Inches
Height
21 1/4 Inches
Amps
11.9 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
115 Volts
24 Hour Ice Yield
525 Pounds
Ambient Temperature Range
50 - 100 Degrees F
BTU Per Hour
8,200 BTU
Condenser Type
Air Cooled
Features
Made in America NSF Listed
Ice Type
Dice Half Size Cubes
Installation Type
Modular
Material
Aluminum
Plug Type
Hardwire
Power Usage
3.7 - 5.43 kWh per 100 lbs.
Product Line
Ice-O-Matic Elevation Series
Refrigerant Type
R-290
Type
Ice Machines
Water Inlet Size
3/8 Inches
Water Pressure Range
20 - 80 PSI
Water Temperature Range
40 - 100 Degrees F
Water Usage
17 Gallons Per 100 lbs.

Ice-O-Matic CIM0530HT90 Details

Enhance your establishment's ice production capabilities with this Ice-O-Matic Elevation series ice machine! This efficient machine can produce up to 525 lb. of 3/8" x 7/8" x 7/8" half cube ice per day, ensuring that your business never runs out of this essential ingredient. With its environmentally friendly R-290 refrigerant, it's designed to operate with sustainability in mind. It uses 12% less water and is 11% more energy-efficient than its R-404a equivalents. This unit features Harvest Assist technology that guarantees consistent ice production throughout its lifespan. This technology not only ensures a reliable ice supply but also helps in reducing energy consumption and increasing overall capacity.

All ice machines require frequent maintenance and cleaning to keep them running properly, so it's important to choose a model that will make this process as easy and as fast as possible. Ice-O-Matic's Elevation series accomplishes this by featuring a front-facing evaporator and dishwasher-safe components that make cleaning a breeze, saving you time and effort while reducing operating costs. Simply snap each piece out, run them through a dishwasher cycle up to 180 degrees Fahrenheit, and then snap them back into place to continue producing ice! The entire disassembly process takes mere minutes, which makes it easier for your employees to do and makes it more likely that it will get done when the machine requires it.

For added convenience, this unit's modular design and top air exhaust not only contribute to better aesthetics but also provide superior heat control, ensuring efficient and consistent ice production. Its modular design also offers flexibility in application and easy installation on bins or dispensers (sold separately). The durable, corrosion-resistant, and fingerprint-proof aluminum construction, along with 1 mil thick electroless nickel-plated copper evaporator plates, ensures the longevity and reliability of this unit. This efficient machine is designed to operate optimally in temperatures ranging from 50-100 degrees Fahrenheit, making it suitable for any commercial kitchen or food service establishment. It requires a 115V electrical connection.

Overall Dimensions:
Width: 30 1/4"
Depth: 24 1/4"
Height: 21 1/4"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:
  • Made in America

    Made in America

    This item was made in the United States of America.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.

  • 3/8" Water Connection

    3/8" Water Connection

    This unit comes with a 3/8" water connection for water supply.
