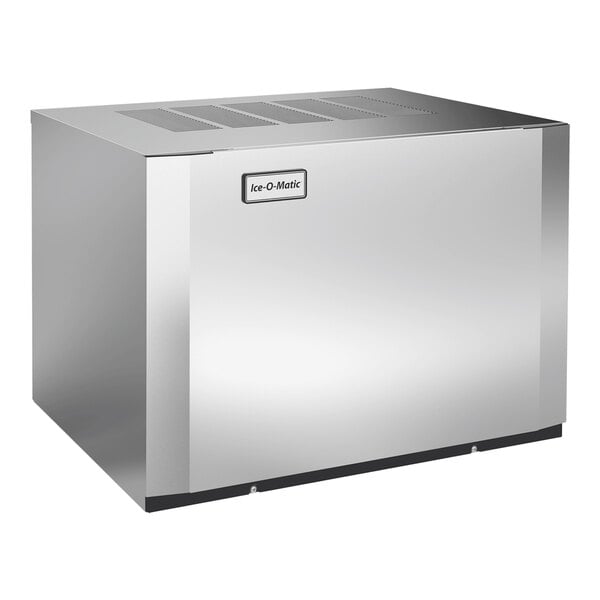

Ice-O-Matic CIM0430HA90 Elevation Series 30" Air-Cooled Half Dice Cube Ice Machine - 115V; 435 lb.
Item number 458cimx430ha90MFR number CIM0430HA90
$3,259.00/Each
Ships free withEarn up to $97.77 back (9,777 points)with a Webstaurant Rewards Visa® Credit Card
Product Overview
- Produces up to 435 lb. of half cube ice per day
- Front-facing evaporator and dishwasher-safe components for simple cleaning
- Equipped with energy-efficient and environmentally friendly R-290 refrigerant
- Features Harvest Assist for consistent ice production, energy reduction, and increased capacity
- Corrosion-resistant and fingerprint-proof aluminum construction
Works With
View All Items$102.49/Case
$2,141.00/Each
$8.99/Each
$176.00/Each
Out Of Stock$4,678.00/Each
- C Pure Oceanloch+ L Water Filtration System with Oceanloch+ L Cartridge 1 Micron Rating and 1.67 GPM
$187.99/Each
$1,321.00/Each
$331.00/Each
- Quantity
- 1/Each
- Shipping Weight
- 189.5 lb.
- Width
- 30 1/4 Inches
- Depth
- 24 1/4 Inches
- Height
- 21 1/4 Inches
- Amps
- 11.4 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- 24 Hour Ice Yield
- 435 Pounds
- Ambient Temperature Range
- 50 - 100 Degrees F
- BTU Per Hour
- 5,650 BTU
- Condenser Type
- Air Cooled
- Features
- Made in America NSF Listed
- Ice Type
- Dice Half Size Cubes
- Installation Type
- Modular
- Material
- Aluminum
- Plug Type
- Hardwire
- Power Usage
- 3.15 - 4.95 kWh per 100 lbs.
- Product Line
- Ice-O-Matic Elevation Series
- Refrigerant Type
- R-290
- Type
- Ice Machines
- Water Inlet Size
- 3/8 Inches
- Water Pressure Range
- 20 - 80 PSI
- Water Temperature Range
- 40 - 100 Degrees F
- Water Usage
- 17 Gallons Per 100 lbs.
Ice-O-Matic CIM0430HA90 Details
Enhance your establishment's ice production capabilities with this Ice-O-Matic Elevation series ice machine! This efficient machine can produce up to 435 lb. of 3/8" x 7/8" x 7/8" half cube ice per day, ensuring that your business never runs out of this essential ingredient. With its environmentally friendly R-290 refrigerant, it's designed to operate with sustainability in mind. It uses 12% less water and is 11% more energy-efficient than its R-404a equivalents. This unit features Harvest Assist technology that guarantees consistent ice production throughout its lifespan. This technology not only ensures a reliable ice supply but also helps in reducing energy consumption and increasing overall capacity.
All ice machines require frequent maintenance and cleaning to keep them running properly, so it's important to choose a model that will make this process as easy and as fast as possible. Ice-O-Matic's Elevation series accomplishes this by featuring a front-facing evaporator and dishwasher-safe components that make cleaning a breeze, saving you time and effort while reducing operating costs. Simply snap each piece out, run them through a dishwasher cycle up to 180 degrees Fahrenheit, and then snap them back into place to continue producing ice! The entire disassembly process takes mere minutes, which makes it easier for your employees to do and makes it more likely that it will get done when the machine requires it.
For added convenience, this air-cooled unit addresses tricky installation clearance requirements with its unique dual-exhaust design! Because it has hot air discharge vents on both the top and the side, this ice maker can be installed in a wider range of locations without fear of obstructing the exhaust. Plus, its modular design offers flexibility in application and easy installation on bins or dispensers (sold separately). The durable, corrosion-resistant, and fingerprint-proof aluminum construction, along with 1 mil thick electroless nickel-plated copper evaporator plates, ensures the longevity and reliability of this unit. This efficient machine is designed to operate optimally in temperatures ranging from 50-100 degrees Fahrenheit, making it suitable for any commercial kitchen or food service establishment. It requires a 115V electrical connection.
Overall Dimensions:
Width: 30 1/4"
Depth: 24 1/4"
Height: 21 1/4"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Made in America
This item was made in the United States of America.

NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

UL Listed, US & Canada
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.

Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
Frequently Asked Questions From Customers
Additionally, adapter and deflector kits can be used to match up ice machines with other types of bins / dispensers. When available, literature from the manufacturer regarding bin / dispenser / machine compatibility and adapter / deflector kits is also included on our product pages and is kept as up-to-date as possible. If you have any questions, our Customer Solutions team is also happy to help!
