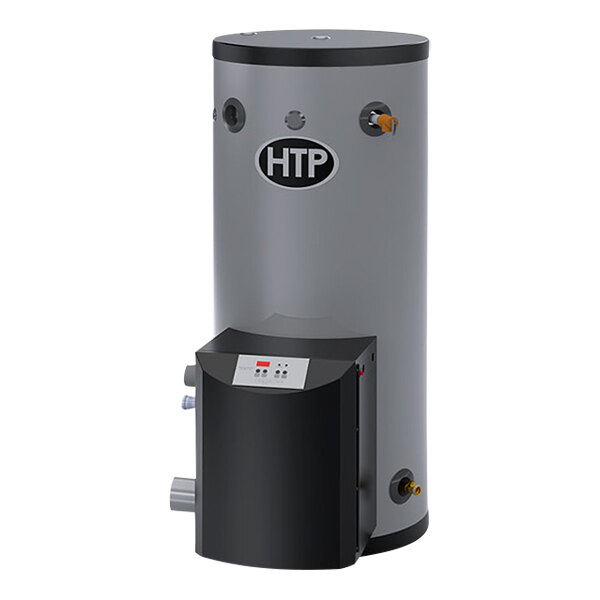

HTP PH199-55SA Phoenix 55 Gallon Natural Gas Sanitizer Water Heater - 120V, 199,000 BTU

HTP PH199-55SA Details

Provide hot water for all your commercial applications with this HTP Phoenix sanitizer water heater! Ideal for dish washing, sterilizing tools, and cleaning and disinfecting equipment, this water heater features a 55 gallon capacity and is made with 316L stainless steel to resist corrosion for long-lasting use. It also features a cupro-nickel heat exchanger that ensures years of maintenance-free operation. It's equipped with a high-quality aluminum anode rod that extends the tank life and thick foam insulation for low standby loss. This item is powered by natural gas and operates at 95% thermal efficiency. It has a modulating burner for a 5-to-1 turndown ratio that matches fuel consumption to demand for 40,000-199,000 BTU. It also features a 229 GPH recovery at a 100-degree rise.

This water heater has an easy-to-use control panel with intelligent temperature controls that monitor inlet and outlet water temperatures to adjust modulation automatically up to 160 degrees Fahrenheit for consistent performance. It's designed for versatile venting and is compatible with PVC, CPVC, stainless steel, or ULC S636 pipe for up to 200' of combined intake and exhaust venting system (sold separately). It features a 17" gas connection height, an 18 1/2" intake height, and a 7 1/2" exhaust height. It also has a 1" NPT inlet and outlet size. This item requires a 120V, 1 phase connection for operation.

This water heater is light weight for easier transportation and installation. Its multi-port configuration includes top and side DHW connections to allow for new and retrofit installations. For added safety, the unit comes with a temperature and pressure relief valve, ensuring pressure regulation for reliable operation. It's made with a front combustion chamber for easy access and servicing, along with a factory-installed durable brass drain valve for fast and easy draining.

Overall Dimensions:
Diameter: 23"
Depth: 34 1/4"
Height: 54 3/4"
Capacity: 55 gallons
