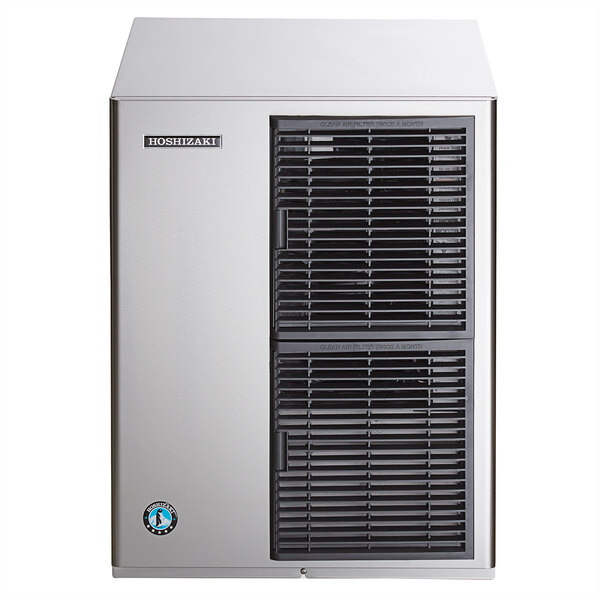

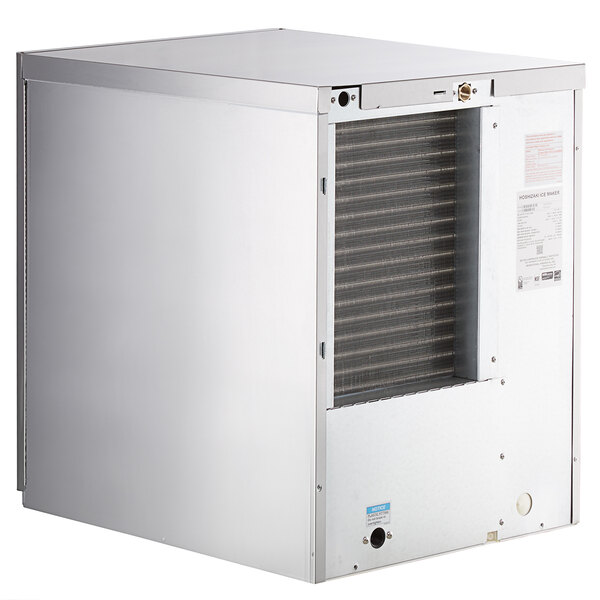

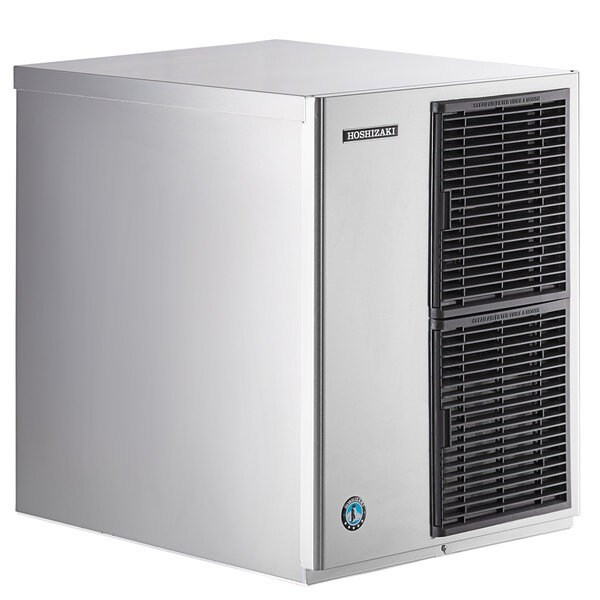

Hoshizaki KM-622MAK Slim-Line Series 22" Air-Cooled Modular Crescent Ice Machine - 673 lb., 115V, 1 Phase
Item number 415km622makMFR number KM-622MAK
Works WithView All Items
$5,460.00/Each
Contact us for details
Start a Live ChatMon-Thu 8AM-8PM EST · Fri 8AM-6PM EST · Sat 9AM-4PM EST
Apply, opens link in this tabEarn up to $163.80 back (16,380 points)
(16,380 points) with a Webstaurant Rewards Visa® Credit Card
Quick Shipping
Usually ships in 1 business day
Product Overview
- Produces up to 673 lb. of crescent shaped ice cubes per day
- Durable stainless steel dual-sided KMEdge evaporator
- EverCheck alert system and CycleSaver design
- Slim design allows for mounting of two units side by side in a tight space
- R-290 refrigerant, 115V, 1 phase
UPC Code:km-622mak
Works With
View All Items
- Quantity
- 1/Each
- Shipping Weight
- 209 lb.
- Width
- 22 Inches
- Depth
- 27 3/8 Inches
- Height
- 28 Inches
- Amps
- 14.6 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- 24 Hour Ice Yield
- 673 Pounds
- Ambient Temperature Range
- 45 - 100 Degrees F
- Condenser Type
- Air Cooled
- Features
- Energy Star Qualified Made in America NSF Certified
- Ice Type
- Crescent Cubes
- Installation Type
- Modular
- Material
- Stainless Steel
- Plug Type
- Hardwire
- Product Line
- Hoshizaki Slim-Line Series
- Refrigerant Type
- R-290
- Type
- Ice Machines
- Water Inlet Size
- 1/4 Inches
- Water Pressure Range
- 10 - 113 PSI
- Water Temperature Range
- 45 - 90 Degrees F
Hoshizaki KM-622MAK Details

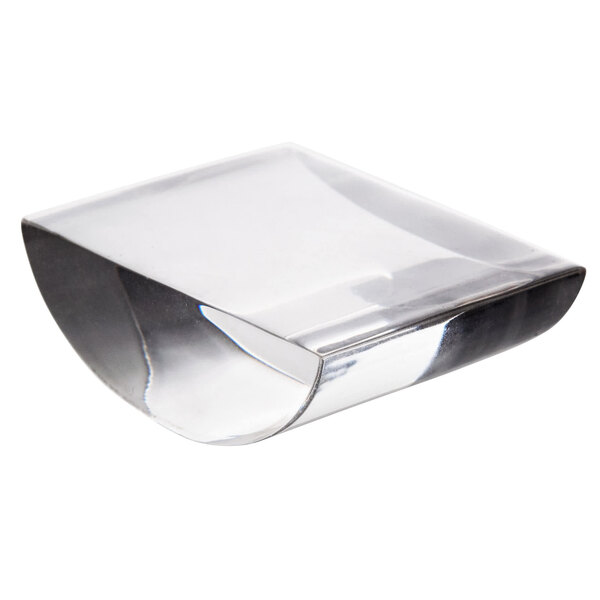

Easily produce up to 673 lb. of ice per day with this Hoshizaki Slim-Line Series air-cooled modular ice machine. Perfect for virtually any food service operation, hospital, school, or resort, this unit produces crescent cube ice that is great for food displays and in beverages. Each crescent cube measures approximately 1 1/8" x 1/2" x 1 1/2". For both ease of overall cleaning and maximum performance, the machine features integrated ultrasonic bin control. The unit is perfect for hotels, bars, restaurants, and buffets. To save space, you can mount two units side-by-side for double the amount of ice production.
For impressive performance, the unit has an EverCheck alert system for dependable use and a CycleSaver design for energy efficiency. The CycleSaver design allows for the production of the same amount of ice in half the cycles of other ice machines, maximizing performance and energy efficiency while consistently producing crescent shaped ice cubes that are both crystal clear in appearance and easy to chew. The EverCheck alert system notifies you when your machine needs to be serviced, making maintenance simpler than ever. Plus, an assisted one-hour cleaning process is offered through the CleanAssist feature. Its self-diagnostic programming will automatically adjust to changing conditions for reliable use in a variety of settings.
When the demand for ice is high, an operation requires a reliable, durable ice machine. This one is built with a strong and sleek stainless steel exterior and even features a stainless steel dual-sided KMEdge evaporator. When a deeper clean is required, the snap fit parts and removable air filters make cleaning even easier when it comes to cleaning those hard-to-reach areas. This 1-phase unit operates using R-290 hydrocarbon refrigerant. It requires a 115V electric connection and must be hardwired. A cord and plug are not included. Compatible ice bins and dispensers are sold separately.
Overall Dimensions:
Width: 22"
Depth: 27 3/8"
Height: 28"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Attention CA Residents:
NSF Certified
This item is certified by NSF to applicable standards.
Made in America
This item was made in the United States of America.
ARI / AHRI
This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
UL Certified
This product is certified to applicable standards and requirements by UL Solutions.
1/4" Water Connection
This unit comes with a 1/4" water connection for water supply.
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
