General Pipe Cleaners 117430-SL-USBP-B Gen-Eye USB Premium Video Pipe Inspection System with Wi-Fi Transmitter and Hot Spot Locator - 110V

General Pipe Cleaners SL-USBP-B Details

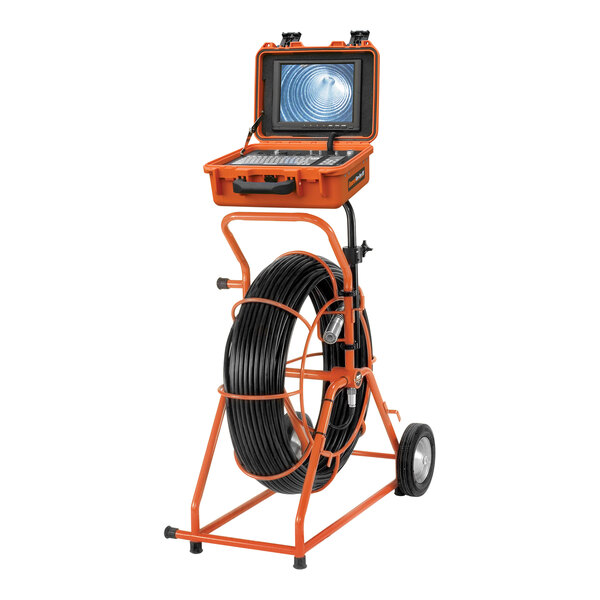

The General Pipe Cleaners Gen-Eye video pipe inspection system makes inspecting drain lines a breeze! Perfect for contractors and plumbers who need to inspect drain lines, this system comes with a 200' Gel-Rod push rod for inspecting 3" to 10" drain lines. Made with a durable Kevlar® braid, fiberglass core, and sturdy sheath, the patented Gel-Rod push rod provides maximum push and pull power and is designed to keep moisture away from the wires should the rod ever get cut or abraded. Its heavy-duty Pelican case provides ample storage for the system, as well as durable protection. This system's rugged steel docking arm allows the user to combine the monitor and reel into one portable unit with an adjustable height, axis, and command module angle. When the operator is finished for the day, the command module is simple to remove for storage in a safe place. The docking arm can also be operated in a vertical or horizontal position for added versatility.

This system's camera is self-leveling, so there is no need to adjust the camera while inspecting. Simply glide the inspection system through the pipe and the camera will automatically keep the picture upright as it goes. Plus, the camera has 16 bright-white LED lights to successfully illuminate the drain line. The included 2", 3", and 6" trap skids help to reduce drag on longer runs while keeping the camera centered and protected from abrasions as it moves through cast iron traps. This inspection system features an AC / DC converter for operating on truck power alone while in the field, and it has 10" wheels for optimal portability. Plus, rechargeable batteries that last up to four hours are included. It has an LED dimmer control so the operator can adjust the brightness to their liking while an on-screen distance counter helps the inspector keep track of how far they have traveled. Additionally, this unit comes with a Hot Spot locator for quickly locating active power lines, inspection cameras, sondes, and utility lines without the need to interpret numbers or bar graphs. The Hot Spot locator requires D alkaline batteries to operate (sold separately).

This inspection system has a camera test port that allows the user to test the camera before installation while its 10 3/8" LCD color screen provides crisp, clear imaging and is sunlight readable. It also has a built-in microphone and speaker, so the inspector can record voice-over video on the included 8 GB flash drive, and its USB recording drive can handle a flash drive of up to 128 GB. The monitor features a playback function for reviewing recorded videos and photos. This system features a Wi-Fi transmitter that allows the operator to send their recorded or live-stream videos to a smartphone or tablet for simple uploading to social media accounts. It comes with a watertight keyboard, which permits on-screen titling, and an on-screen date and time function. This unit operates best in temperatures between 14 and 122 degrees Fahrenheit and requires 110V of power. This unit requires some assembly.

Reel Dimensions:
Length: 29"
Width: 16"
Height: 33 1/2"

Case Dimensions:
Length: 10 1/2"
Width: 14"
Height: 6"
