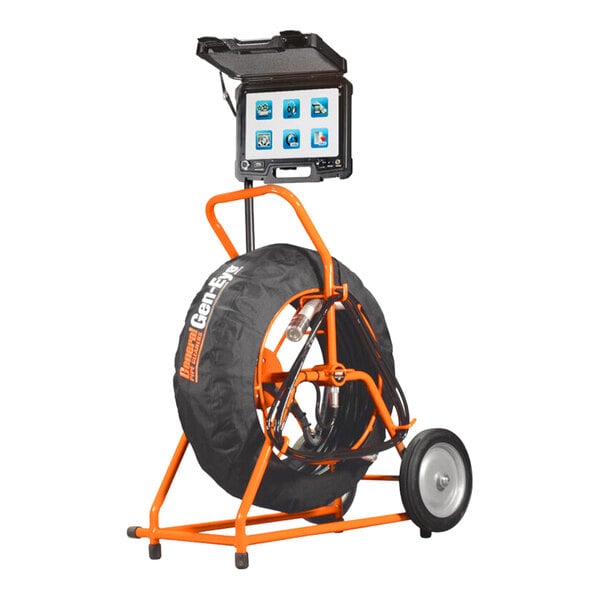

General Pipe Cleaners 179870-SL-GF-F Gen-Eye Fusion High-Definition Pipe Inspection / Location Camera System with Wi-Fi and Command Module - 110V

General Pipe Cleaners SL-GF-F Details

The General Pipe Cleaners Gen-Eye Fusion high-definition pipe inspection / location camera system makes inspecting drain lines a breeze! Perfect for contractors and plumbers who need to inspect drain lines, this system comes with a 200' Gel-Rod push rod for inspecting 3" to 10" drain lines. Made with a durable Kevlar® braid, fiberglass core, and sturdy sheath, the patented Gel-Rod push rod provides maximum push and pull power and is designed to keep moisture away from the wires should the rod ever get cut or abraded. Its heavy-duty Pelican case provides ample storage for the system, as well as durable protection. This system's rugged steel docking arm allows the user to combine the monitor and the included full-size reel into 1 portable unit with an adjustable height, axis, and command module angle. When the operator is finished for the day, components like the 25" x 12" x 10 1/2" command module are simple to remove for storage in a safe place. The docking arm can also be operated in a vertical or horizontal position for added versatility. The reel features a snug, removable, heavy-duty, poly canvas cover with Velcro® tabs.

This system's high-definition color camera is self-leveling, so there's no need to adjust it while inspecting. Simply glide the inspection system through the pipe, and the camera will automatically keep the picture upright as it goes. Plus, the 2 11/16" x 1 5/8" camera has 16 bright-white LED lights to successfully illuminate up to drain lines up to a 10". The included 2", 3", and 6" trap skids help to reduce drag on longer runs while keeping the camera centered and protected from abrasions as it moves through cast iron traps. This inspection system features an AC / DC converter for operating on truck power alone while in the field, and it has 10" wheels for optimal portability. It has an LED dimmer control so the operator can adjust the brightness to their liking, while an on-screen distance counter helps the inspector keep track of how far they have traveled. Additionally, this unit comes with a Hot-Spot locator for quickly locating active power lines, inspection cameras, sondes, and utility lines without the need to interpret numbers or bar graphs.

This inspection system features a camera test port that allows the user to test the camera before installation. It features an HDP-500 command module that is fuse-protected, and it's designed to operate your equipment for up to 12 hours in remote locations where access to power is limited for portability and versatility. It also features a 1080p HD 10 1/8" LCD touch screen that provides crisp, clear imaging. The monitor features a playback function for reviewing recorded videos and photos. This system comes with a watertight touchscreen keyboard designed for on-screen titling. It features 12 lines of text with up to 50 characters per line, an on-screen date and time function, and text templates with auto-fill fields. The on-screen display shows useful inspection data and graphics that can be viewed in multiple languages. This unit operates best in temperatures between 14 and 122 degrees Fahrenheit and requires 110V of power. This unit requires some assembly.

The system features a Wi-Fi transmitter for live video streaming with easy point-to-point connections for high-definition video, as well as recording and snapshot features when used with the General Pipe Cleaner app and a smart device (sold separately). The transmitter allows the operator to send their recorded or live-stream videos to a smartphone or tablet for simple uploading to social media accounts. A built-in microphone and speaker allow the inspector to record voice-over video, while its USB recording drive can handle a flash drive of up to 128 GB. It also features an internal memory with the capacity for a 64 GB card (additional flash drives and cards sold separately) for up to 32 hours of inspections, and it features an internal hard drive for up to 256 GB of recording capacity, or approximately 125 hours of inspection time.

Reel Dimensions:
Length: 29"
Width: 16"
Height: 33 1/2"

Case Dimensions:
Length: 10 1/2"
Width: 14"
Height: 6"
