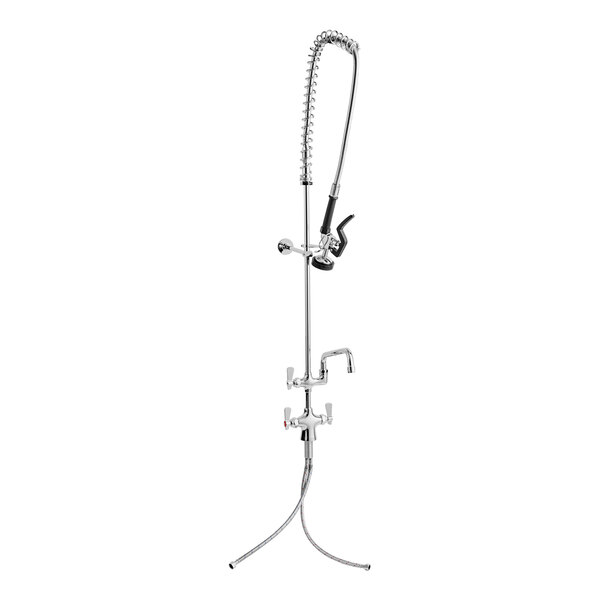

Name: Deck-Mounted Pre-Rinse Faucet with Single Inlet and 12" Add-On Faucet
Brand: Assure Parts
SKU: 190PRD12
Availability: InStock

Only

$199.99/Each

Ships free with

Earn up to $6.00 back (600 points)with a Webstaurant Rewards Visa® Credit Card

Add to Wish List

Quick Shipping

Usually ships in 1 business day

Product Overview

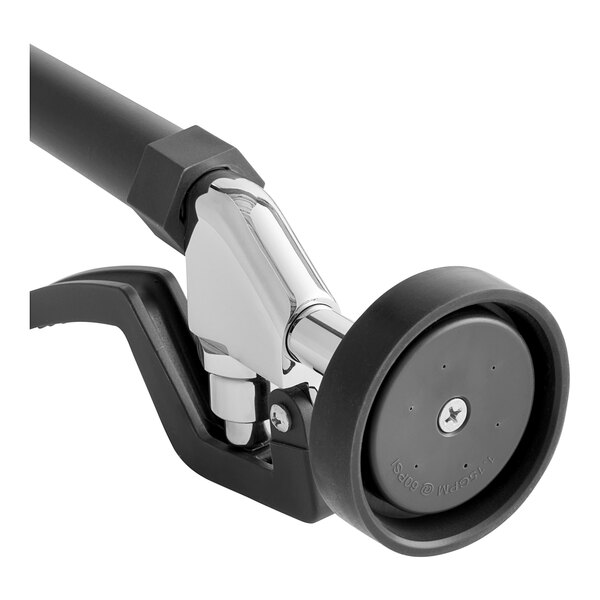

Hand shower with a 1.15 GPM flow rate
Comes with 12" stainless steel swing spout with 1.8 GPM aerator
Requires a 3/8" NPSM compression outlet on the angle valve
Chrome-plated brass construction
Zinc handles with quarter-turn ceramic cartridges

Shipping Restrictions

This item cannot ship to AZ or CA

UPC Code:400017648620

View all Assure Parts Pre-Rinse Faucets

plus

Wall-Mounted Pre-Rinse Faucet with 8" Centers and 12" Add-On Faucet

$199.99/Each

plus

Wall-Mounted Pre-Rinse Faucet with 8" Centers

$189.99/Each

Quantity: 1/Each
Shipping Weight: 11.7 lb.
Hose Length: 44 Inches
Faucet Width: 6 7/16 Inches
Faucet Height: 49 3/4 Inches
Add-On Faucet: 12 Inches
Add-on Flow Rate: 1.8 GPM
Add-On Type: Swing
Cartridge Type: Ceramic
Faucet Centers: Single
Finish: Chrome
Material: Brass
Mounting Style: Deck Mounted
Mounting Type: Workboard
Pre Rinse Unit Type: Hose and Spring
Pressure Rating: 60 PSI
Spray Valve Flow Rate: 1.15 GPM
Type: Pre-Rinse Units
Water Inlet Size: 3/8 Inches

Details

Increase efficiency and cleanliness in your commercial kitchen with this Assure Parts pre-rinse faucet. This deck-mounted faucet features a hand shower with a 1.15 GPM flow rate at 60 PSI, allowing for efficient rinsing and cleaning of dishes. The faucet also comes equipped with a 12" stainless steel swing spout. The spout's aerator offers a 1.8 GPM flow rate at 60 PSI, providing additional flexibility and convenience during food preparation. Crafted with a low-lead brass valve body and a single 3/8" hose inlet, this faucet ensures durability and reliability in a busy kitchen environment. Installation requires a 3/8" NPSM compression outlet on the angle valve.

Constructed with chrome-plated brass, this pre-rinse faucet is both stylish and durable, making it an essential addition to any commercial kitchen. The zinc handles feature quarter-turn ceramic cartridges, offering smooth and precise control of water flow and temperature. Whether you're running a busy restaurant, cafeteria, or cafe, this pre-rinse faucet is designed to meet the demands of a high-volume kitchen while maintaining optimal performance and hygiene standards. Upgrade to this Assure Parts pre-rinse faucet for a reliable and efficient solution for your dishwashing needs. This pre-rinse unit comes with an 18" riser.

Overall Dimensions:
Faucet Height: 49 3/4"
Faucet Width: 6 7/16"
Add-On Faucet: 12"

Attention CA Residents:

3/8" Water Connection
This unit comes with a 3/8" water connection for water supply.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

Frequently Asked Questions From Customers

Can I get a spray valve with a higher flow rate (GPM)?

The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.

How do I use a wall bracket to stabilize a pre-rinse faucet?

Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket.

If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective.

If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.

How is the pre-rinse hose length measured?

Unless otherwise specified, the quoted hose length includes any grips or connectors at the end of the hose, so the actual working length of the hose may be slightly less than described. Please refer to the product's specsheet for more detailed dimensions.

What measurements do I need to install a faucet?

When installing a faucet, these are some of the most common measurements you’ll need:

Faucet Centers: If your faucet has a base with 2 inlets, measure the distance from the center of one inlet to the center of the other. This number must match the spacing of your building’s water lines (adjustable centers will help with the spacing). If mounting through the backsplash on a sink, the center measurement must also fit within the pre-drilled mounting holes.

Flex Hoses: If your faucet has flex hoses make sure that they will reach your building’s water lines.

Spout length: Make sure that the faucet spout will fit comfortably over your sink bowl and not extend too far / not far enough. If you plan to use a swing spout over a multi-bowl sink, make sure it will reach all of the bowls.
