Product Overview
- Variable speed capable with the use of a remote 0-10V potentiometer (sold separately)
- Durable spun aluminum construction does not chip, rust, or peel
- 16 1/2" non-overloading wheel provides efficient airflow
- Can be wall-mounted or installed on your rooftop
- Powerful 3/4 hp motor produces up to 2,965 CFM; 115/208/240V, 1 phase
- Quantity
- 1/Each
- Shipping Weight
- 160 lb.
- Width
- 37 1/2 Inches
- Depth
- 37 1/2 Inches
- Height
- 27 1/8 Inches
- Wheel Diameter
- 16 1/2 Inches
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 115/208/240 Volts
- Color
- Silver
- Drive Type
- Direct Drive
- Features
- Variable Speed
- Horsepower
- 3/4 hp
- Installation Type
- Roof Top Mounted Wall Mounted
- Material
- Aluminum
- Max CFM
- 2,965 CFM
- Min CFM
- 861 CFM
- Motor Type
- Direct Drive
- RPM
- 1,350 RPM
- Speeds
- Variable
- Style
- Upblast
- Type
- Upblast Exhausters

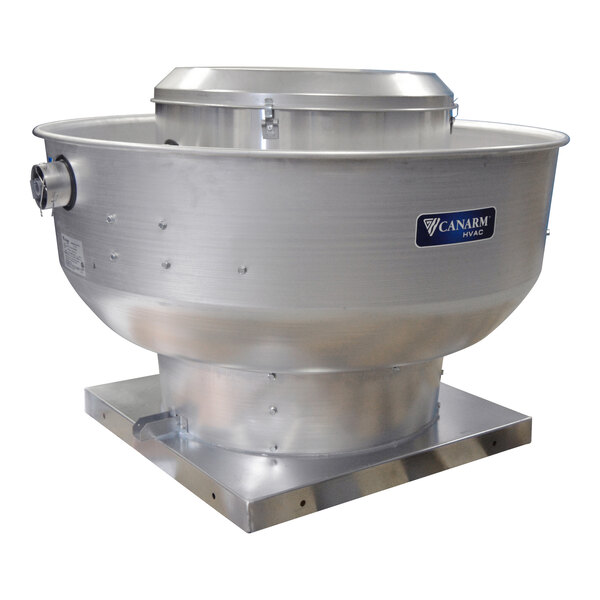

Canarm ALX165-UD075EC Details

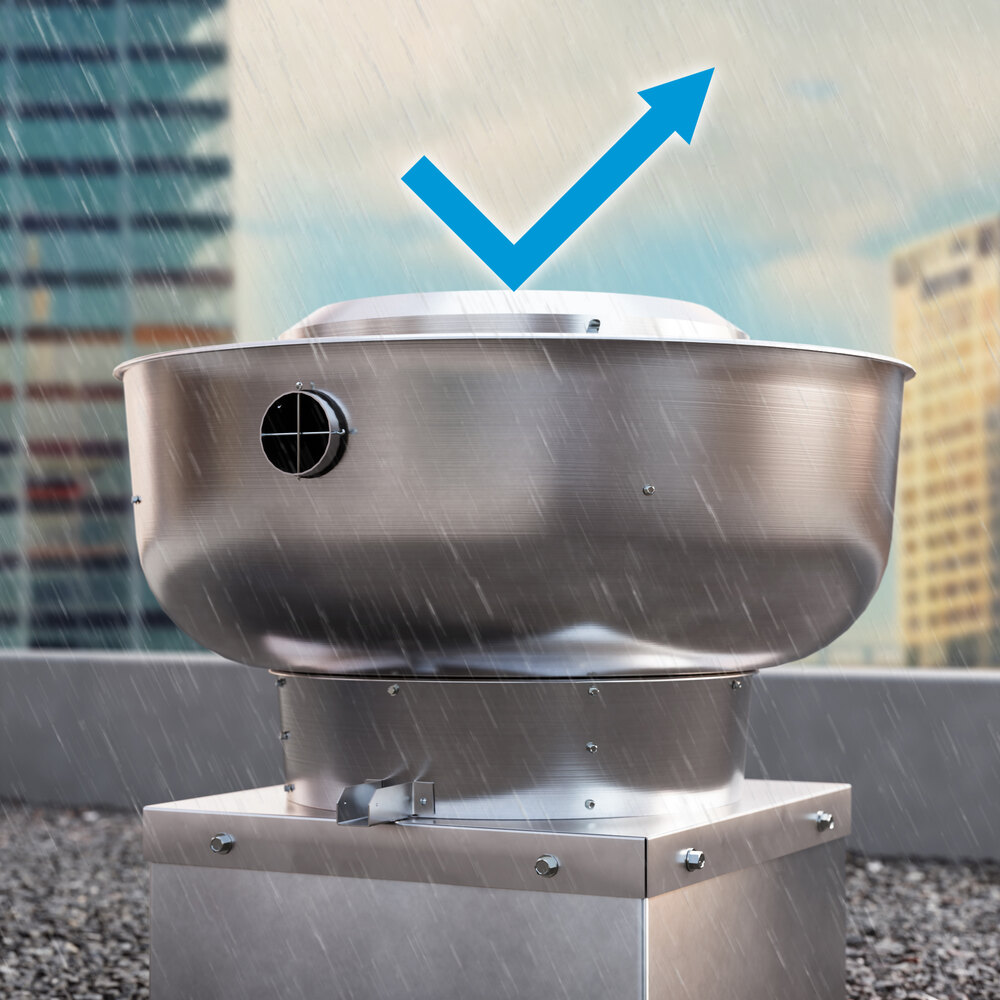

Enhance the air quality in your warehouse, office, factory, kitchen, or commercial facility with this Canarm upblast exhauster! This versatile unit works to exhaust air and provide ventilation in your establishment. Plus, the motor has up to 82% efficiency to reach your ideal speed every time. For energy-efficient use, the EC motor provides 70% energy savings compared to traditional PSC motors. The speed is easily adjustable using the onboard variable speed controls, or it can also be controlled remotely with a 0-10V potentiometer (sold separately). The onboard variable speed controls allow for simple setup and balancing with an LED display. When used with the potentiometer, it can be controlled up to 50' away, providing convenient access even when you are not near the unit.

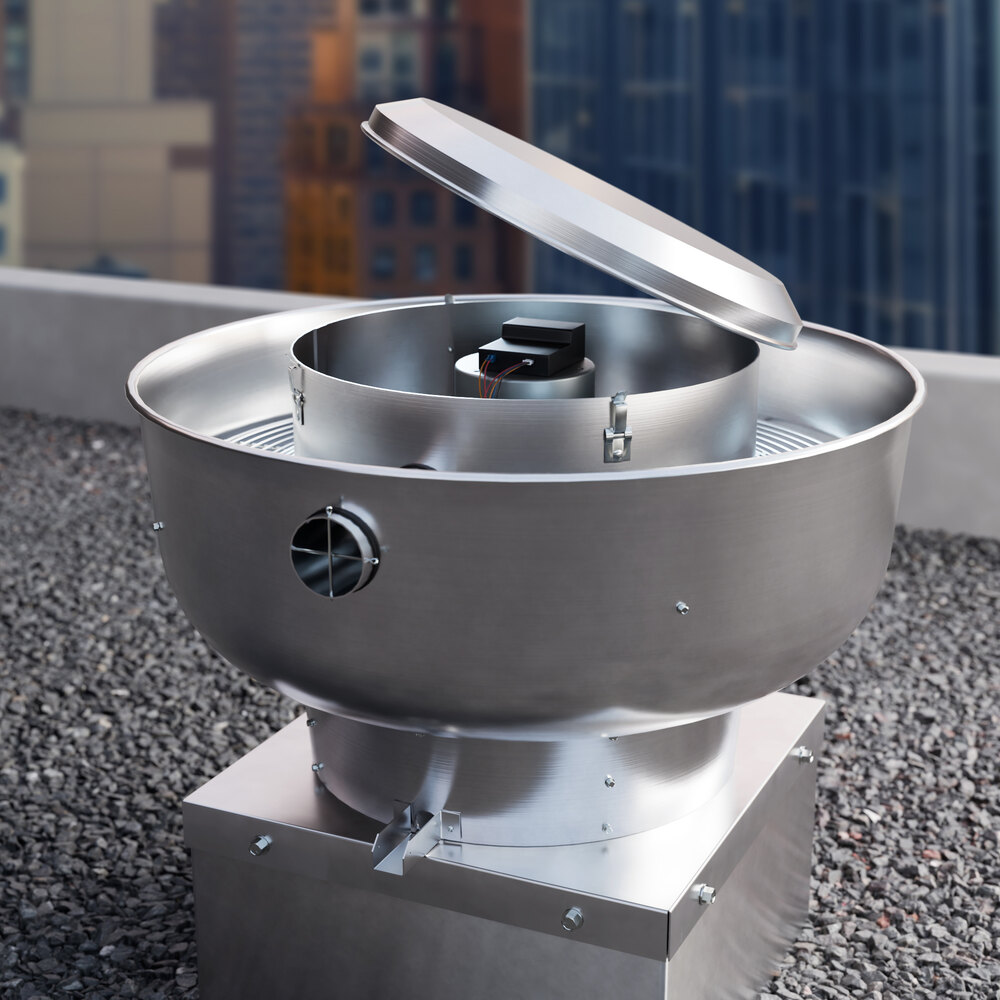

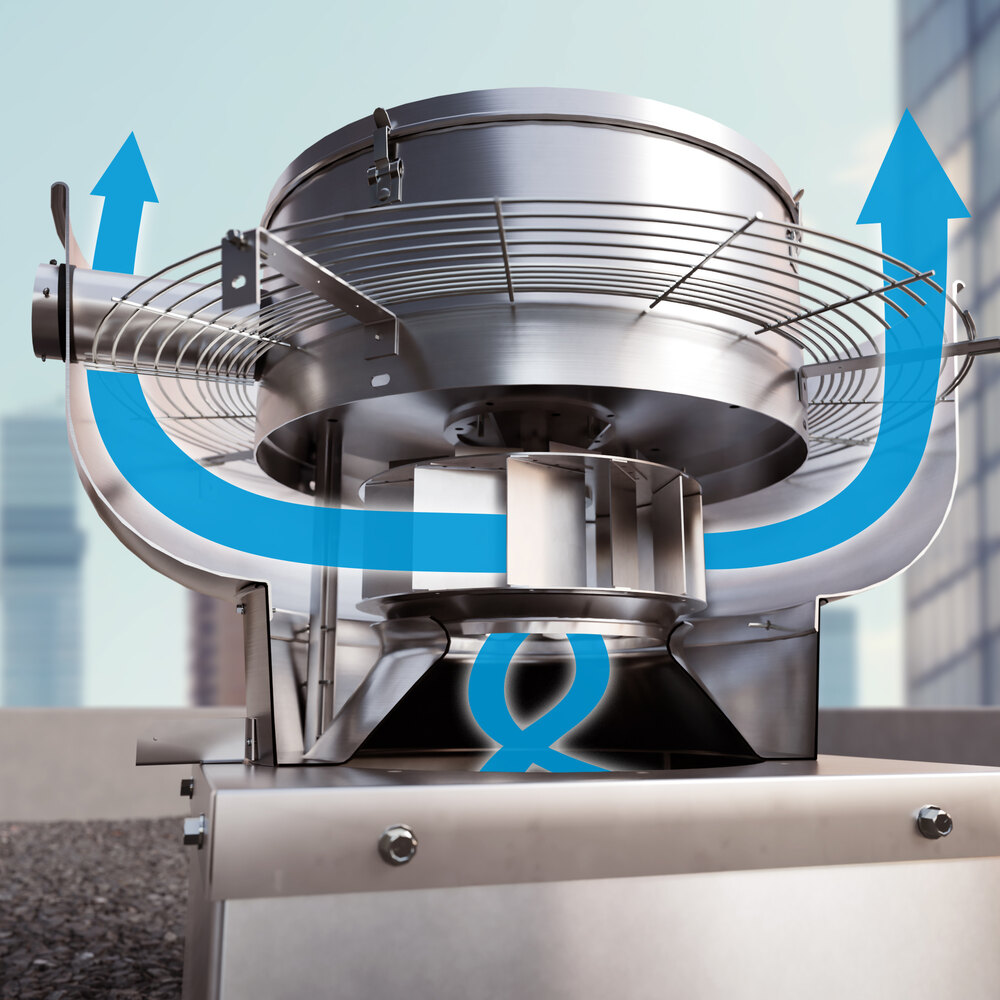

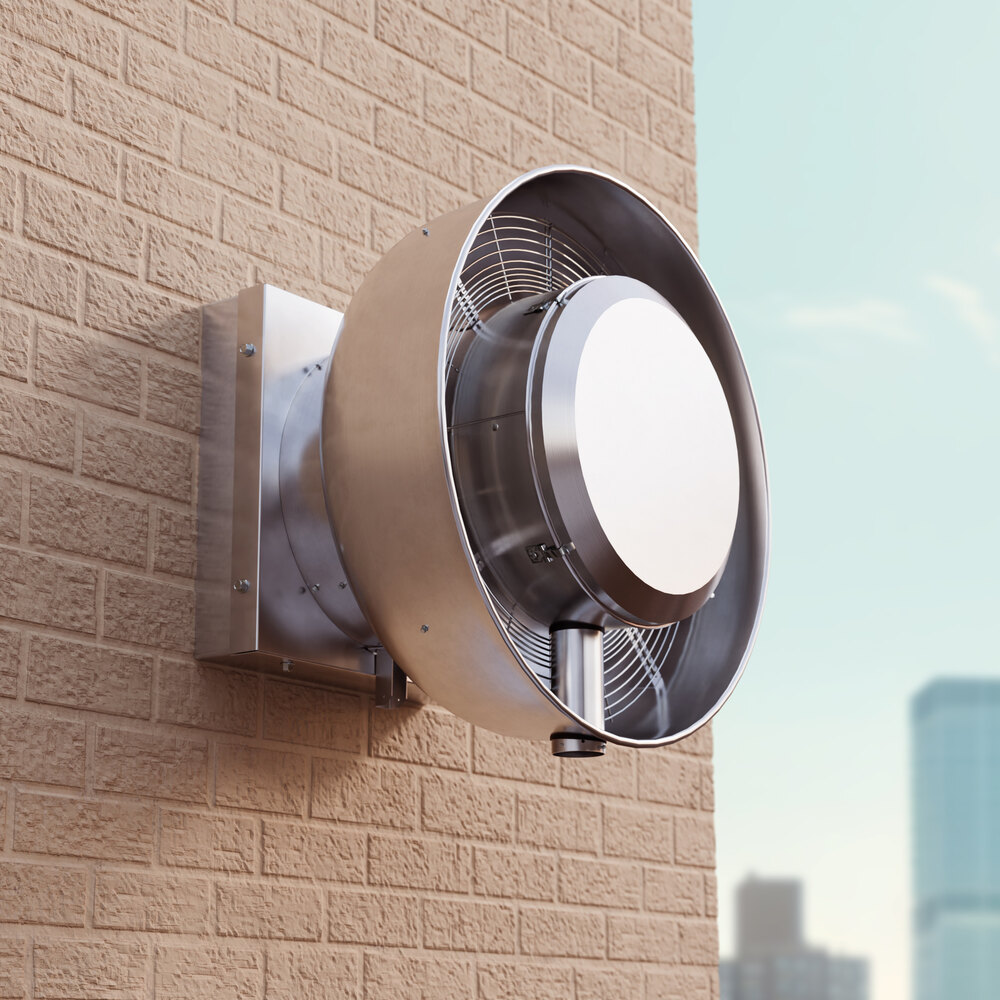

This rugged unit mounts directly to the wall with additional wall brackets (sold separately), or it can be installed on your rooftop. For rooftop applications, a 20 3/4" opening is required. This exhauster includes a durable spun aluminum construction that does not chip, rust, or peel for long-lasting use. The 16 1/2" aluminum wheel is inclined backwards to exhaust air efficiently, and it's non-overloading to provide consistent and safe use. It boasts a 3/4 hp direct-drive motor that delivers 861 CFM to 2,965 CFM with a maximum RPM of 1,350. To easily access the motor, quick-release latches are included.
This unit requires a 115/208/240V, 1 phase electrical connection for operation. It must be hardwired; the cord and plug are not included. Please be sure to review any relevant fire codes for your area before ordering a ventilation system and understand the requirements for any equipment going under your hood, as this may change from area to area.
Overall Dimensions:
Width: 37 1/2"
Depth: 37 1/2"
Height: 27 1/8"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
