Product Overview
- Replacement unit for stacked configuration
- Features hyrdovection technology
- Boasts easy-to-use controls
- Stainless steel construction with a fully welded angle-iron frame
- Accepts (5) 18" x 26" standard full-size baking pans
- Increases yield and decreases cooking time for maximum productivity
- 4-speed, auto-reversing 3/4 hp fan motor
- 208V, 3 phase, 15 kW
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
- Quantity
- 1/Each
- Shipping Weight
- 450 lb.
- Width
- 38 1/8 Inches
- Depth
- 48 5/8 Inches
- Height
- 25 5/8 Inches
- Interior Width
- 29 Inches
- Interior Depth
- 20 Inches
- Interior Height
- 23 7/16 Inches
- Amps
- 38 Amps
- Hertz
- 60 Hz
- Phase
- 3 Phase
- Voltage
- 208 Volts
- Wattage
- 15 Kilowatts
- Capacity
- 10 Full Size Food Pans 5 Full Size Sheet Pans
- Control Type
- Dial
- Door Type
- Glass
- Features
- Energy Star Qualified Made in America NSF Listed With Steam
- Horsepower
- 3/4 hp
- Installation Type
- Freestanding
- Number of Chambers
- 1 Chamber
- Number of Decks
- Single
- Number of Doors
- 2 Doors
- Number of Racks
- 5 Racks
- Pan Type
- Full Size Food Pans Full Size Sheet Pans
- Plug Type
- Hardwire
- Power Type
- Electric
- Size
- Full Size
- Water Inlet Size
- 3/4 Inches

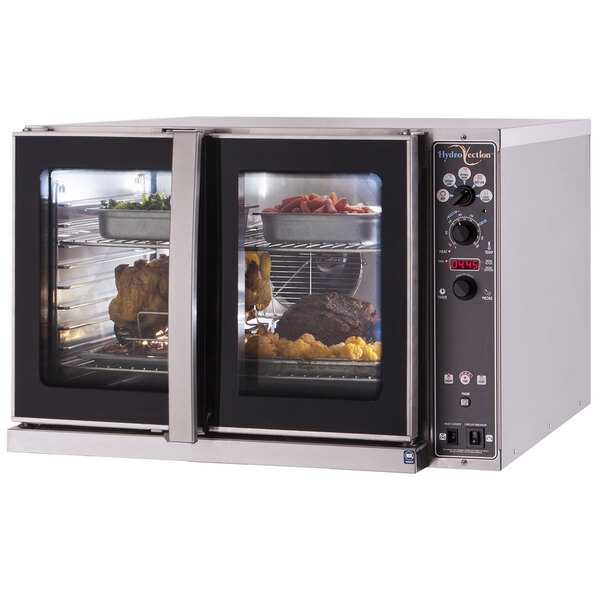

Blodgett HV-100 E base Details
If you need to replace one of the sections of your stacked HV-100E series hydrovection oven, this Blodgett HV-100E-208/3 base unit full size electric hydrovection oven is exactly what you need! This base unit comes without legs so you can easily swap it out with an old one and get back to cooking or baking in no time. Hydrovection technology allows you to cook with humidity, which increases your yield up to 15% over standard convection ovens and decreases your cook time by 15% so you can get more products on the table faster. This oven features a 6 tubular heater element design that provides a total of 15 kW of heating power to keep up with your busy commercial kitchen.
The easy-to-use standard controls include hydro low, hydro high, hot air, and cool down options. Great for a variety of cooking and baking applications, the versatile cook modes provide you with the flexibility you need for a diverse menu. For even, consistent results, a 4-speed, auto-reversing 3/4 hp fan motor circulates hot air to bake pastries, breads, and muffins to perfection!
A fully welded angle-iron frame supports this unit, while the stainless steel front, top, sides and back provide additional durability. The interior includes a 316 stainless steel coved corner liner for easy cleaning. Since this oven is able to hold (5) 18" x 26" baking pans in left-to-right positions and the included stainless steel racks can be adjusted between 10 positions, you can arrange pans in the oven to best fit your needs. For greater heat retention, this unit is insulated with up to 2 1/2" of super wool for better results and energy savings.
This unit boasts triple mounted glass windows and a simultaneous split door operation with a catch-latch system to ensure the doors close properly. Plus, the dual pane tempered viewing windows are hinged with inner glass for easy cleaning and the 2 halogen interior lights allow for superior visibility so you can keep an eye on your products as they bake.
A retractable hand shower makes it easier than ever to clean your unit. Simply spray the oven cavity to remove food debris and grease build up. A 208V, 3 phase connection is required for operation.
Overall Dimensions:
Left to Right: 38 1/8"
Front to Back: 48 5/8"
Height: 25 5/8"
Interior Dimensions:
Left to Right: 29"
Front to Back: 20"
Height: 23 7/16"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
Made in America
This item was made in the United States of America.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
3/4" Water Connection
This unit comes with a 3/4" water connection for water supply.
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
