Beverage-Air UCRF48AHC-1-SA-B-104 48" Low Profile Dual Temp Undercounter Refrigerator / Freezer
Installation Services
Usually Ships in 5-6 Weeks from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Left-side refrigerator and right-side freezer provide convenient storage flexibility
- Durable stainless steel front, sides, and top with a corrosion-resistant aluminum interior
- Stay-open doors with self-closing feature and magnetic gaskets for a secure seal
- Easy-to-use full electronic controls and standard interior thermometer
- Uses eco-friendly R290 refrigerant; 115V, 1/10 hp refrigerator and 1/4 hp freezer

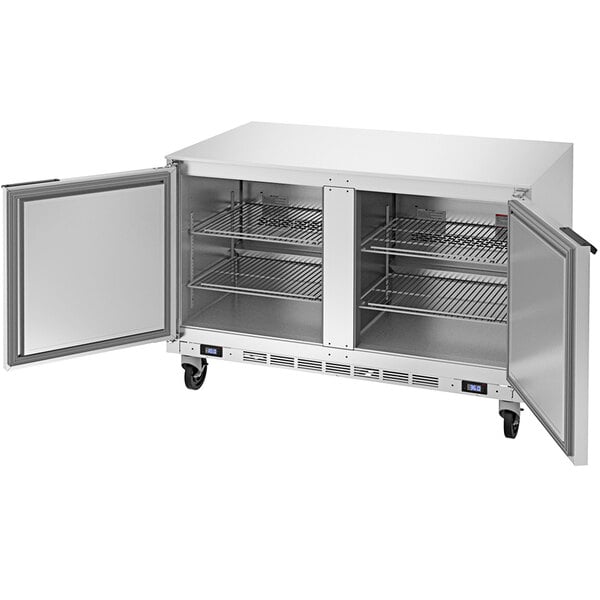

Create additional storage space in your kitchen with this Beverage-Air UCRF48AHC-1-SA-B-104 48" low profile dual temp undercounter refrigerator / freezer!

Dealing with limited space can make things hectic in a high-traffic commercial kitchen, so maximize your real estate with this undercounter freezer! Made of a durable, heavy-duty stainless steel front, sides, and top and an aluminum interior, this refrigerator is durable for frequent use in your commercial kitchen. As a dual temp unit, it features both a freezer cabinet for frozen product and a refrigerated cabinet for cold product. This unit requires a 115V electrical connection for operation.
Made in America
This item was made in the United States of America.
UL Classified EPH
This product has been certified by the Underwriters Laboratories (UL) to meet applicable ANSI/NSF standards and / or other food equipment hygiene codes and requirements.
5-15P
This unit comes with a NEMA 5-15P plug.
UL Listed, US & Canada
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.
UL Sanitation
This item has been tested and meets the sanitation hazard standards imposed by the Underwriters Laboratories (UL).
Energy Star Qualified
This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.

Field-Reversible Hinges
They also includes a field reversible design so the hinge sides can be changed to best accommodate your space. Plus, the cartridge style hinges eliminate door sagging and are great for withstanding weight when product is being loaded and unloaded.

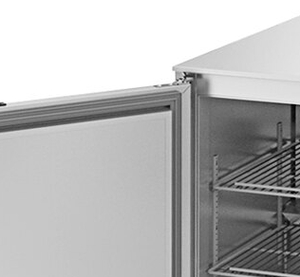

Self-Closing Doors
The self-closing doors have a 120 degree stay-open feature, while the magnetic gaskets create a positive seal to reduce temperature loss.

Corrosion-Resistant Shelves
Four corrosion-resistant, epoxy-coated shelves are also included so that your products can be well-organized to promote shorter open-door times.

Maintains Temperature
In the left-side refrigerated cabinet, the unit maintains temperatures between 36 and 38 degrees Fahrenheit with a 1/10 hp compressor. In the right-side freezer cabinet, the unit maintains temperatures from -10 degrees Fahrenheit and below with a 1/4 hp compressor. Both sections use eco-friendly R290 refrigerant which has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3, making it an environmentally-responsible choice for your business.

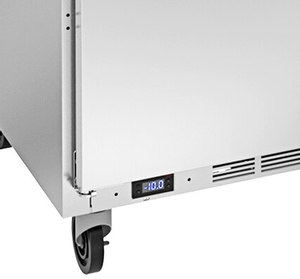

2 3/4" Casters
It also comes with 2 3/4" casters, making it easy to move the freezer for cleaning and maintenance. It also lowers the overall height of the unit, making it great for low counters and other areas with limited space. Two of these casters include brakes, steadying the unit for safe use.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
Frequently Asked Questions From Customers
Counter Height: Work surface is more than 34" high; standard-height unit.
ADA Height: Work surface height is 34" or less; complies with ADA regulations.
Low Profile: Work surface height is less than 32"; designed to fit under most ADA-height counters.
If the unit you are purchasing does not have a flat top, such as a worktop or sandwich/salad prep table, it may affect whether or not it will align with certain countertops. To ensure that the product will meet your needs, please reference the product's literature and specifications.
Beverage Air Undercounters
No matter what your back-of-the-house area looks like, you are sure to find the perfect Beverage-Air undercounter unit to fit your space. Designed with your convenience in mind, these units are meant to last in your busy environment.
With compact undercounter refrigeration from Beverage-Air it's easy to maximum your back-of-the-house storage space. The UCR and UCF series boast a wide range of configurations including both refrigerators and freezers available from 20" up to 72". Each unit is below 35" in height too, allowing it to alight with or slide beneath a counter. Plus, both standard and shallow depth units are available to best fit your needs. For reliable performance, each unit is tested to perform in ambient temperatures of 100 degrees Fahrenheit. For durability, each undercounter is built with stainless steel sides, top, and front and features a strong anodized aluminum interior. Adjustable epoxy coated steel shelves are included as well as self closing doors that have snap in magnetic gaskets and a 120 degree stay open feature. These doors are field reversible and also feature cartridge style hinges making them strong enough to withstand downward weight and pressure while preventing the doors from losing their alignment. If you're looking for a storage solution with maximum versatility take advantage of the double stacking option available for select units. This low cost options allows two units to operate while stacked so you can get an ultra space saving solution. Or you can take advantage of additional options with these units such as glass doors, or combination door and drawer models. Plus, Beverage-Air boasts the smallest undercounter units in the industry. The UCR20HC and the UCF20HC are each only 20" high. Undercounter refrigerators and freezers from Beverage-Air deliver outstanding value, optimize storage space, and boost efficiency. And like most Beverage-Air units these undercounter units are proudly made in the USA.
Compare to Other Products
Price
Height
Access Type
Capacity
Door Style
- Item #: 185urf48bh14Beverage-Air UCRF48AHC-1-SA-B-104 48" Low Profile Dual Temp Undercounter Refrigerator / Freezer
Price:$5,765.00/Each
- Height: 31 Inches
- Access Type: Doors
- Capacity: 10.62 cu. ft.
- Door Style: Swing
- Item #: 902jurf48nTurbo Air JURF-48-N 47 1/4" Dual Temperature Undercounter Refrigerator / Freezer - 9.07 Cu. Ft.
Price:$4,411.79/Each
- Height: 30 Inches
- Access Type: Doors
- Capacity: 9.07 cu. ft.
- Door Style: Swing
- Width:
- 48 Inches
- Depth:
- 32 Inches
- Height:
- 31 Inches
- Capacity - Freezer:
- 5.31 cu. ft.
- Capacity - Refrigerator:
- 5.31 cu. ft.
- Interior Width:
- 42 Inches
- Interior Depth:
- 15 3/8 Inches
- Interior Height:
- 23 Inches
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Need Parts & Accessories?
Show replacement parts and accessories for Beverage-Air UCRF48AHC-1-SA-B-104 today!
Resources and Downloads for
Beverage-Air UCRF48AHC-1-SA-B-104





A PDF viewer is required to view this product's information. Download Adobe Acrobat software
Warranty Info
Note: Beverage Air equipment purchased in 2013 or later will have a 3 year parts and labor warranty. Equipment purchased prior to 2013 will have a 1 year parts and labor warranty. RESIDENTIAL USERS: Your warranty will be voided if installed in non-commercial or residential applications.
Beverage-Air UCRF48AHC-1-SA-B-104 Specs
- Quantity
- 1/Each
- Shipping Weight
- 295 lb.
- Width
- 48 Inches
- Depth
- 32 Inches
- Height
- 31 Inches
- Interior Width
- 42 Inches
- Interior Depth
- 15 3/8 Inches
- Interior Height
- 23 Inches
- Amps
- 2 - 2.5 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- Access Type
- Doors
- Capacity
- 10.62 cu. ft.
- Capacity - Freezer
- 5.31 cu. ft.
- Capacity - Refrigerator
- 5.31 cu. ft.
- Color
- Silver
- Compressor Location
- Bottom Mounted
- Compressor Style
- Side / Rear Breathing
- Door Style
- Swing
- Door Type
- Solid
- Features
- Dual Temperature Energy Star Qualified Made in America Self-Closing Drawers
- Hinge Location
- Left Right
- Horsepower
- 1/10 hp 1/4 hp
- Material
- Aluminum / Stainless Steel
- Number of Doors
- 2 Doors
- Number of Shelves
- 4 Shelves
- Plug Type
- NEMA 5-15P
- Refrigerant Type
- R-290
- Sections
- 2 Sections
- Style
- Low Profile
- Temperature Range - Freezer
- -10 Degrees F
- Temperature Range - Refrigerator
- 36 - 38 Degrees F
- Type
- Freezers Refrigerators Undercounter Freezers Undercounter Refrigerators
