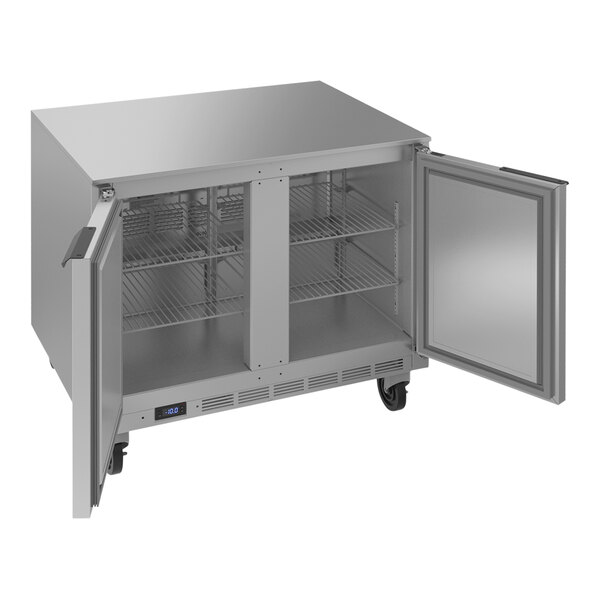

Beverage-Air UCF36AHC-104 36" Low Profile Undercounter Freezer
Item number 185ucf36ah14MFR number UCF36AHC-104
Free Shipping
Due to a manufacturer's price increase, this price will increase by 4.00% to 6.00% on 01/01/26
Earn up to $112.83 back (11,283 points)with a Webstaurant Rewards Visa® Credit Card
Installation Services
Check if installation is currently available for your area.
Usually Ships in 1-2 Business Days from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Low profile design is ideal for adding frozen storage in your kitchen
- Durable stainless steel front, sides, and top with a corrosion-resistant aluminum interior
- Stay-open doors with self-closing feature and magnetic gaskets for a secure seal
- Easy-to-use full electronic controls with a standard interior thermometer
- Uses eco-friendly R290 refrigerant; 115V, 1/2 hp
UPC Code:400015258210
- Quantity
- 1/Each
- Shipping Weight
- 218 lb.
- Width
- 36 Inches
- Depth
- 32 Inches
- Height
- 31 1/8 Inches
- Interior Width
- 32 Inches
- Interior Depth
- 23 1/2 Inches
- Interior Height
- 23 Inches
- Amps
- 5.2 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 115 Volts
- Access Type
- Doors
- Capacity
- 8.69 cu. ft.
- Casters
- With Casters
- Color
- Silver
- Compressor Location
- Rear Mounted
- Compressor Style
- Side / Rear Breathing
- Door Style
- Swing
- Door Type
- Solid
- Features
- Made in America Self-Closing Doors
- Freezer Temperature
- -10 Degrees F
- Hinge Location
- Left Right
- Horsepower
- 1/2 hp
- Number of Doors
- 2 Doors
- Number of Shelves
- 4 Shelves
- Plug Type
- NEMA 5-15P
- Refrigerant Type
- R-290
- Style
- Low Profile
- Type
- Freezers Undercounter Freezers
Beverage-Air UCF36AHC-104 Details
This Beverage-Air UCF36AHC-104 36" low profile undercounter freezer is a great solution when you need to increase the frozen storage capacity in your kitchen! Made of a durable, heavy-duty stainless steel front, sides, and top and aluminum interior, this freezer is durable for frequent use in your commercial kitchen.
It has two self-closing doors that reduce temperature loss, while the magnetic gasket creates a positive seal to keep cold air in and warm air out. The 120 degree stay-open feature makes this freezer ideal for high-volume loading and unloading. It also includes a field reversible design so the hinge sides can be changed to best accommodate your space. Plus, cartridge style hinges eliminate door sagging and are great for withstanding weight when product is being loaded and unloaded.
This 36" low profile undercounter freezer consistently maintains temperatures up to -10 degrees Fahrenheit which can be monitored with a full electronic control. It has a 2" thick polyurethane insulation and 1/2 hp compressor that runs on eco-friendly R290 refrigerant, which has an ozone depletion (ODP) of 0 and a global warming potential (GWP) of 3 making it an environmentally-responsible choice for your business.
Four corrosion-resistant, epoxy-coated shelves are also included so that your products can be well-organized to promote shorter open-door times. It also comes with 2 3/4" casters, making it easy to move the freezer for cleaning and maintenance. It also lowers the overall height of the unit, making it great for low counters and other areas with limited space. Two of these casters include brakes, steadying the unit for safe use. This unit requires a 115V electrical connection for operation.
Overall Dimensions:
Width: 36"
Depth: 32"
Height: 31 1/8"
Capacity: 8.69 cu. ft.
Interior Dimensions:
Width: 32"
Depth: 23 1/2"
Height: 23"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
Made in America
This item was made in the United States of America.
5-15P
This unit comes with a NEMA 5-15P plug.
UL Certified
This product is certified to applicable standards and requirements by UL Solutions.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
By using this AI-powered search, you agree to our Terms of UseOpens in new tab and Privacy PolicyOpens in new tab.
Frequently Asked Questions From Customers
Does Beverage-Air warrant this item for use in a food truck?
This item is covered under Beverage-Air's warranty contingent upon the unit being kept in a controlled climate. This means that the interior of the food truck may not be susceptible to extreme high or low temperatures. If warranty service is required, the truck must be able to sit stationary for 24-48 hours to allow for a technician to service the equipment.
How do I know if this unit will fit under or match the height of my ADA-height counter?
Many manufacturers offer their refrigeration equipment in several different height options to best meet your needs. Here's a breakdown of how we classify these different heights:
Counter Height: Work surface is more than 34" high; standard-height unit.
ADA Height: Work surface height is 34" or less; complies with ADA regulations.
Low Profile: Work surface height is less than 32"; designed to fit under most ADA-height counters.
If the unit you are purchasing does not have a flat top, such as a worktop or sandwich/salad prep table, it may affect whether or not it will align with certain countertops. To ensure that the product will meet your needs, please reference the product's literature and specifications.
Counter Height: Work surface is more than 34" high; standard-height unit.
ADA Height: Work surface height is 34" or less; complies with ADA regulations.
Low Profile: Work surface height is less than 32"; designed to fit under most ADA-height counters.
If the unit you are purchasing does not have a flat top, such as a worktop or sandwich/salad prep table, it may affect whether or not it will align with certain countertops. To ensure that the product will meet your needs, please reference the product's literature and specifications.
I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?
R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.
What does the “H” or “HC” mean in the newer Beverage-Air model numbers?
This is a representation that the unit is using a “Hydrocarbon” refrigerant. This would include both R290 and R600a refrigerants. They are being used as an eco-friendly refrigerant by Beverage-Air in response to the EPA’s Significant New Alternatives Policy (SNAP) Program. Read more about this program in our blog post on Refrigerant Regulations.
Why is there a step in the interior of this undercounter unit?
This unit’s refrigeration system is located in the lower rear of the cabinet, causing the step in its interior. The step may decrease the inner depth of the cabinet's lower interior versus what is listed as its overall interior depth, so please check the unit’s specs and diagrams to ensure it will accommodate your storage needs.
