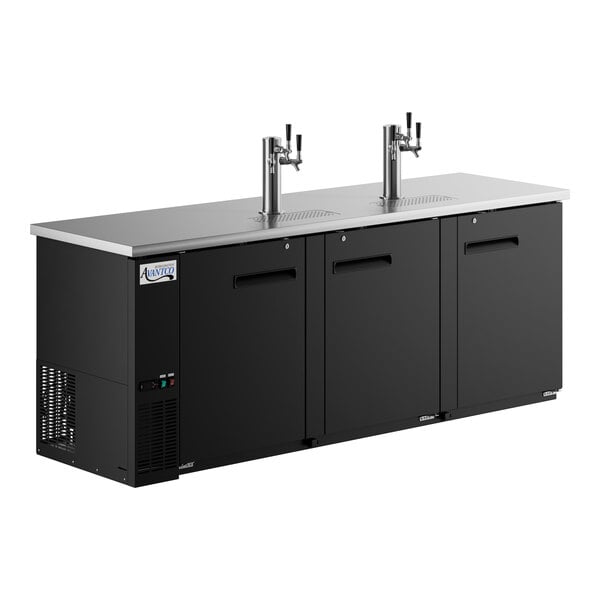

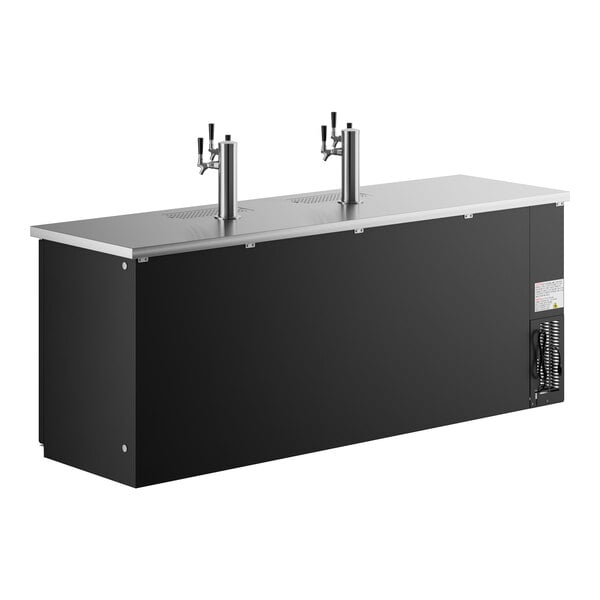

Avantco UDD-4-HC (2) Triple Tap Kegerator Beer Dispenser - Black, (3) 1/2 Keg Capacity

Item number  178udd46
Regularly

$2,309.00/Each

$2,109.00/Each

Earn up to $69.27 back (6,927 points)with a Webstaurant Rewards Visa® Credit Card

Installation Services

Check if installation is currently available for your area.

Quick Shipping

Usually ships in 1 business day

Product Overview

  • 4 shelves included for optional bottle and can storage for increased versatility
  • (2) 3-tap towers with 10 1"/4" faucet height
  • Energy efficient LED interior lighting
  • Includes (6) "D" system couplers and keg mat
  • 115V; 1/4 hp compressor; R290 refrigerant
UPC Code:400013357267

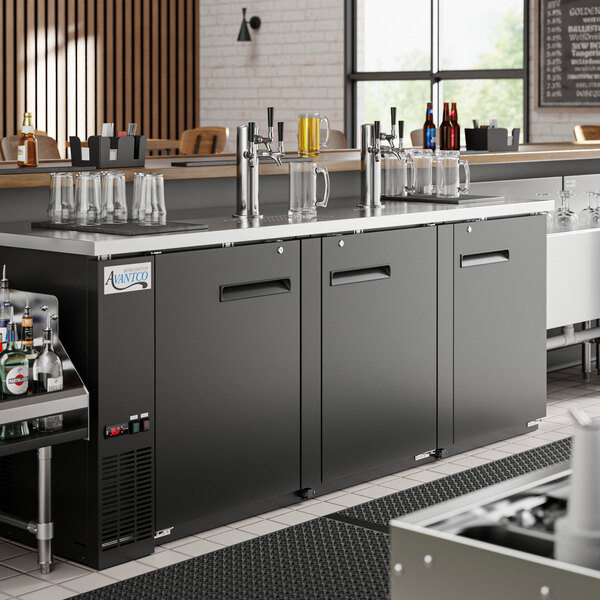

This Avantco UDD-4-HC (2) triple tap beer dispenser is an excellent way to offer refreshing draft beer to your guests without investing in a complex built-in tap system.

Your customers want draft beer, and you want convenience. To serve both, this beer dispenser is designed to simplify the tapping process with its (2) triple tap towers and six couplers. Plus, it's built to withstand heavy use, featuring a stainless steel interior that won't become damaged after an accidental spill or leak.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • ETL, US

    ETL, US

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States.

  • ETL Sanitation

    ETL Sanitation

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.

Energy-Efficient Refrigerant

This unit has a 1/4 hp refrigeration system that circulates R290 hydrocarbon refrigerant. R290 refrigerant has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3, making it an environmentally-responsible choice for your business. A 115V electrical connection is required for operation.

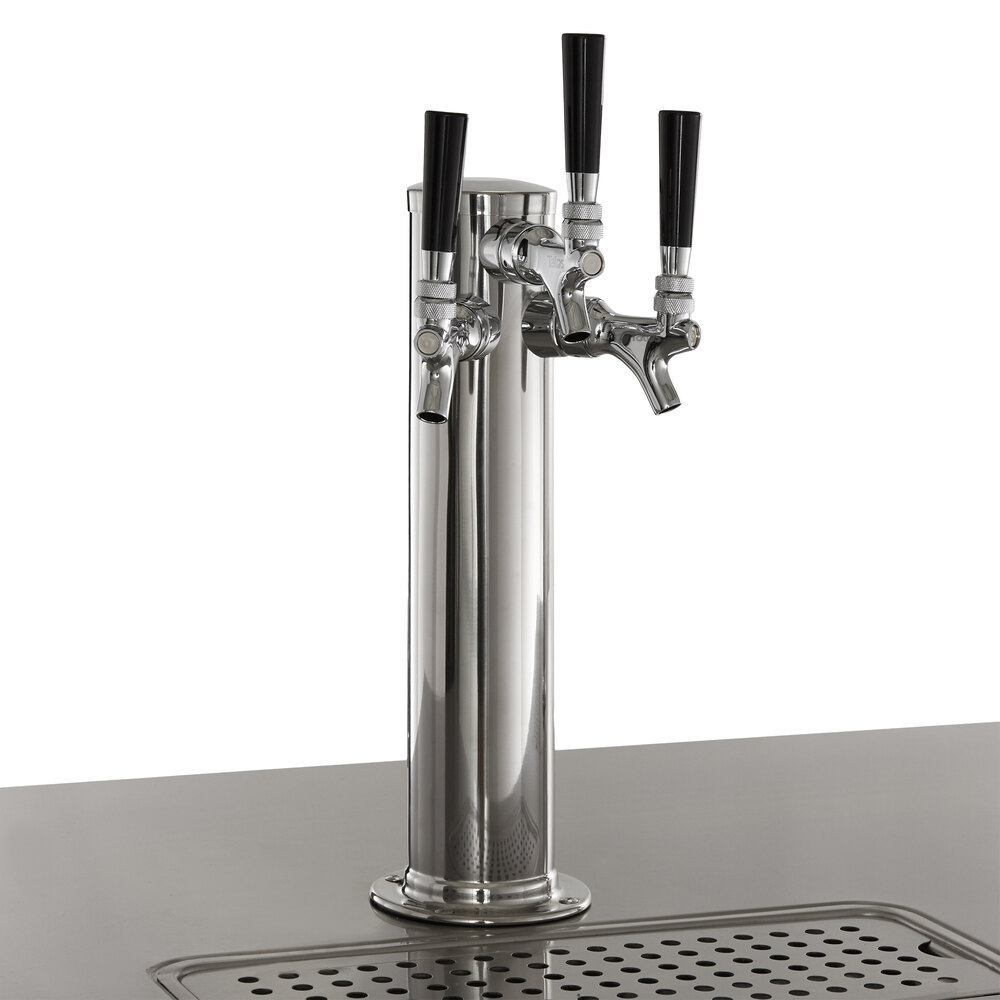

(2) Triple Tap Towers

This unit features (2) triple tap towers with a 10 1/4" faucet height that allows you to easily fill pint glasses and pitchers with local microbrews, international macrobrews, and everything in between. Standard triple tap towers allow you to tap multiple kegs, offering more variety to your customer without the need for extra equipment.

Convenient storage

Convenient Storage

It holds (3) 1/2 kegs so you can stock up on one brew or offer customers a selection to choose from, and it even comes with 4 shelves for optional bottle or can storage while concealing the product behind 3 solid doors. The doors themselves are not only self-closing to prevent potential energy loss, but also lock to prevent theft during off hours. This unit is equipped with knockout plugs to install external CO2 lines.

Durable and Easy to Clean

This commercial kegerator features a durable black coated steel exterior and a 304 type stainless steel interior that is both durable and easy to clean, while a built-in drip tray further expedites end-of-day cleaning.

Locking Doors

To help protect your brews and other supplies from theft or tampering during off-hours, the dispenser's doors are outfitted with locks.

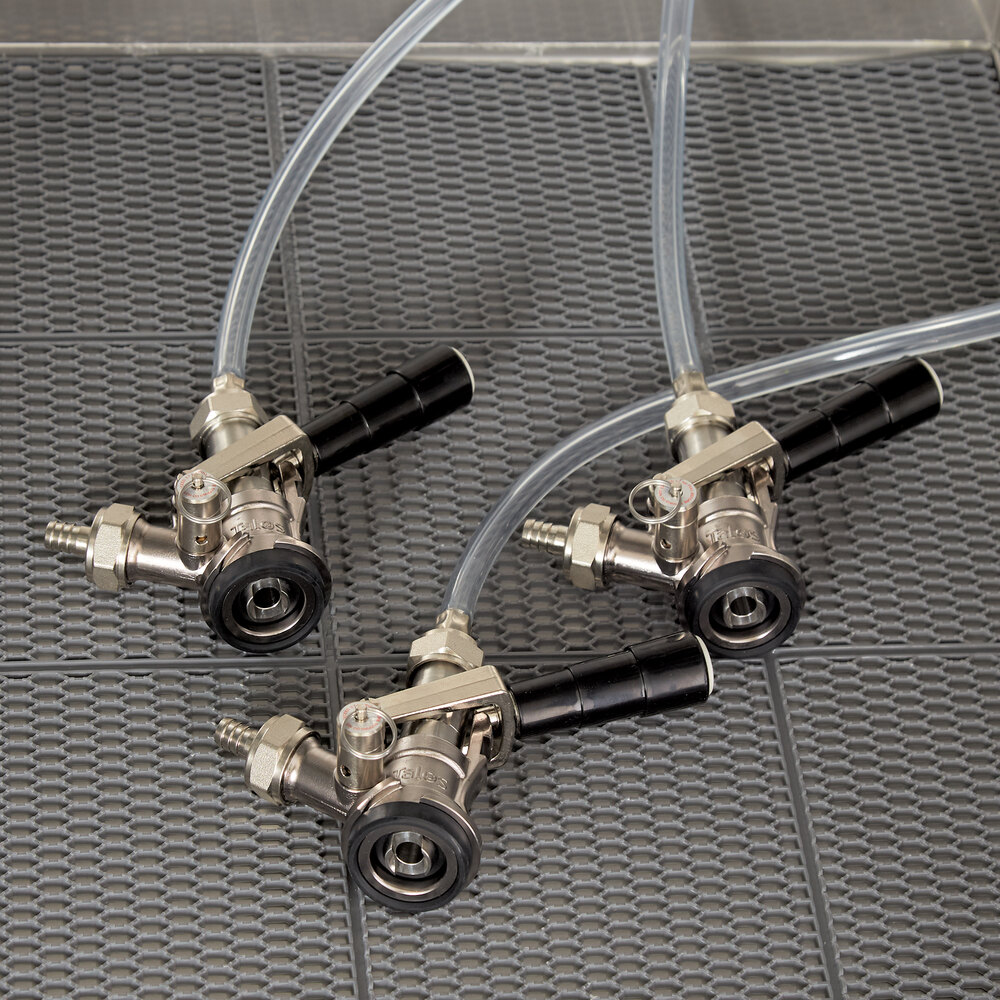

Couplers Included

Avantco brand beer dispensers come with more startup equipment than other brands, including six "D" system couplers. "D" system (American Sankey) is the most common system used in the U.S. For your convenience, this unit also ships with a keg mat.

Digital Display and LED Lights

Thanks to the easy-to-read digital temperature control and display, you can quickly check the interior temperature of the cabinet. In addition to that, LED lights illuminate the interior of the dispenser so that you have plenty of light when installing your kegs.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

Ask about this product
By using this AI-powered search, you agree to our Terms of Use and Privacy Policy.

Frequently Asked Questions From Customers

Can this kegerator be used to dispense ciders?
No. Beverages such as cider, wine, and coffee have high levels of acidity, and dispensing them through this unit may damage its internal parts and have adverse effects on the product being dispensed. As designed, this unit is intended to dispense beer only. This model can be easily converted to be wine-safe, by swapping out the faucet, shank, beer hose, and coupler for stainless steel or wine-friendly equivalents.
Yes, the Avantco UDD2/3/4/48/60/72 have spots on the right-hand side opposite the compressor, while the Avantco UDD1 have spots in the back, where you can drill out holes for use with external CO2 lines.
Avantco warrants new equipment sold to food truck customers to be operational for a period of 30 days from the date of delivery if installed and maintained correctly.
While this unit does come with a coupler, you will also need a CO2 tank, CO2 regulator, and gas hoses.
R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.
Yes, this item requires 8 casters. For convenience, we offer a kit with all of the casters and the M8-1.25 mm x 20 mm bolts required to mount them. See the Works With section.
Make sure that you are loading it properly and not overloading it. This unit is designed for cans, bottles, and similar items that naturally enable good airflow within the cabinet. Overloading the cooler with cases and boxes will interrupt the airflow and negatively impact the unit’s performance.
The size of the CO2 tank you choose will be determined by the size of your beer dispenser unit and how often you are willing to refill the tank. Larger tanks will last longer than smaller tanks, but frequency and usage should also be taken into consideration. If you plan to store your CO2 tank inside the beer dispenser, then size will be a factor here since you will also need enough room to properly store your kegs. Your local beer supplier will be able to offer suggestions and show you the maximum tank size for your dispenser.
The couplers for your unit may ship in the unit's packaging, or in separate packaging. Please check both to ensure they're all included!
For our kegerators that feature 6 or more taps, we use a base model kegerator which already has pre-set tap towers packaged inside. For instance, if you choose a 6 tap kegerator, you will receive the tap towers which allow 6 taps, and you will receive the tap towers that the base model originally came with.

Compare to Other Products

Overall Dimensions:
Width:
90 1/4 Inches
Depth:
27 3/4 Inches
Height:
35 5/8 Inches
Interior Dimensions:
Interior Width:
77 3/4 Inches
Interior Depth:
21 7/8 Inches
Interior Height:
30 1/2 Inches
Tap Tower Dimensions:
Tap Tower Diameter:
3 Inches
Tap Tower Height:
16 Inches
Faucet Height:
10 1/4 Inches
