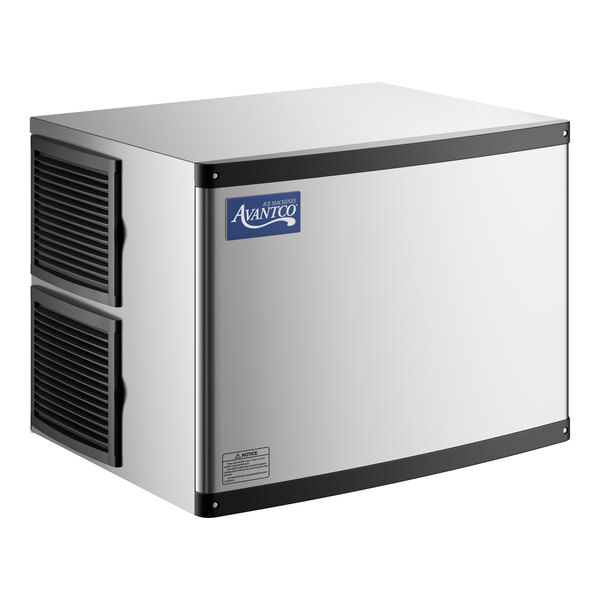

Avantco Ice MC-F-530-A 30" Air Cooled Modular Full Cube Ice Machine - 497 lb.

Item number  194mcf530a
Regularly

$2,199.00/Each

$2,049.00/Each

Accessories & Options

Earn up to $65.97 back (6,597 points)with a Webstaurant Rewards Visa® Credit Card

Add to Wish List

Installation Services

Check if installation is currently available for your area.

Quick Shipping

Usually ships in 1 business day

Not eligible for expedited shipping

Product Overview

  • Makes up to 497 lb. of full cube ice per day
  • Durable 304 stainless steel exterior with polyethylene interior
  • Digital controller allows user to quickly identify issues and the current stage of production
  • Removable air filter allows for quick cleaning
  • R290 refrigerant; 115V; NEMA 5-15P
UPC Code:400015279628
View all Avantco Ice Machines Air Cooled Ice Machines

Works With

View All Items

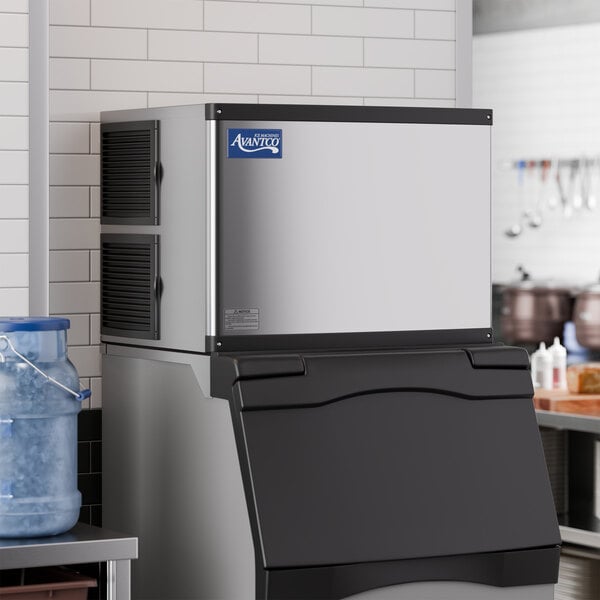

Make sure you've always got plenty of fresh ice on hand with the Avantco Ice MC-F-530-A 30" air cooled modular full cube ice machine!

Capable of producing up to 497 lb. of full cube ice per day, you'll always have plenty of ice to serve on demand at your restaurant, bar, or cafe. The narrow footprint design is great for saving on space and it can be paired with a compatible ice bin to hold ice once it is made.

  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • ETL Sanitation

    ETL Sanitation

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable sanitation standards required for use in the United States and Canada.

  • ETL, US & Canada

    ETL, US & Canada

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.

  • 3/4" Water Connection

    3/4" Water Connection

    This unit comes with a 3/4" water connection for water supply.

OceanLoch+ Mounting Holes

This ice machine also comes with pre-drilled holes on the back of the unit to mount your OceanLoch+ water filter to the machine to ensure you are serving the cleanest and freshest ice possible.

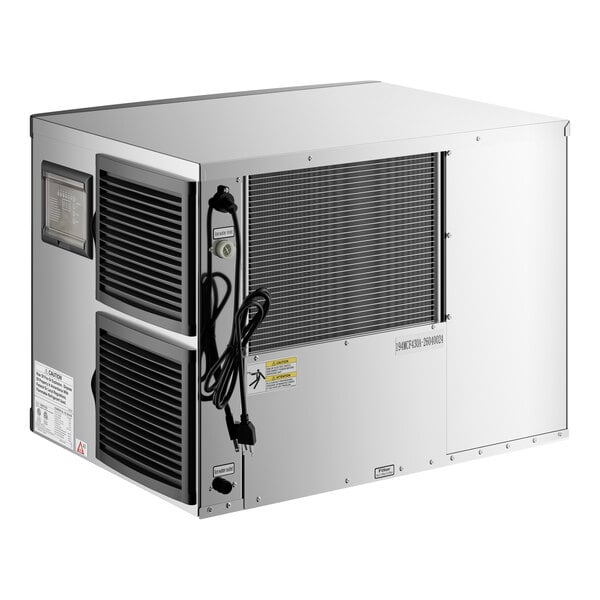

Side-Breathing & Rear Exhaust

Designed for side-breathing and rear exhaust, you can avoid hot air being blown outward into your kitchen or service area. This unit requires a 115V electrical connection for operation.

Intuitive Diagnostics

For ease of maintenance, a built in diagnostic system will identify problems that your ice machine may be having and will display the issue on the digital controller so it can be repaired accordingly. This intuitive system helps cut down on service calls and unnecessary service fees for minor issues.

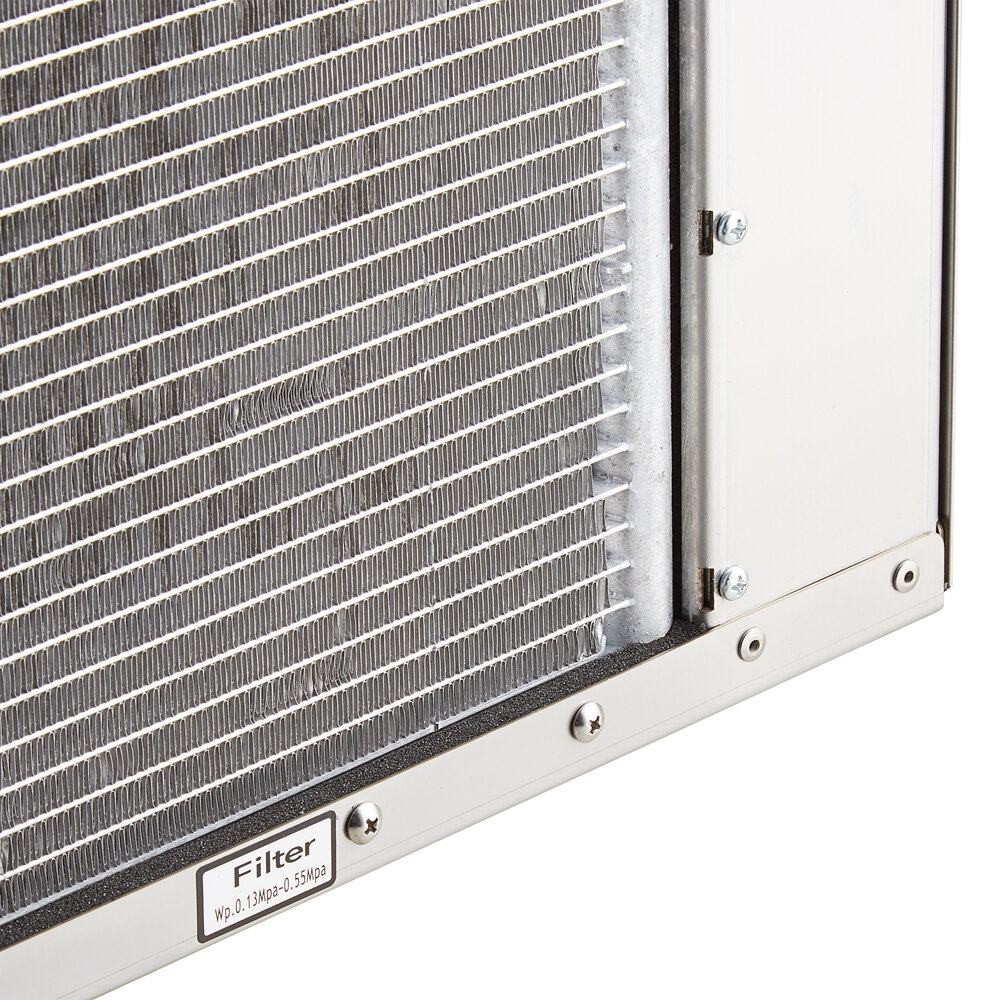

Nickel-Plated Evaporator and Removable Air Filter

A nickel-plated evaporator holds up well to moisture and is non-corrosive. The air filter is easily removable so that it can be cleaned or swapped out when it is time to be replaced.

304 Stainless Steel Design and Polyethylene Interior

Constructed of durable type 304 stainless steel with a polyethylene interior, this unit is easy-to-clean and built to last in the busiest commercial environments.

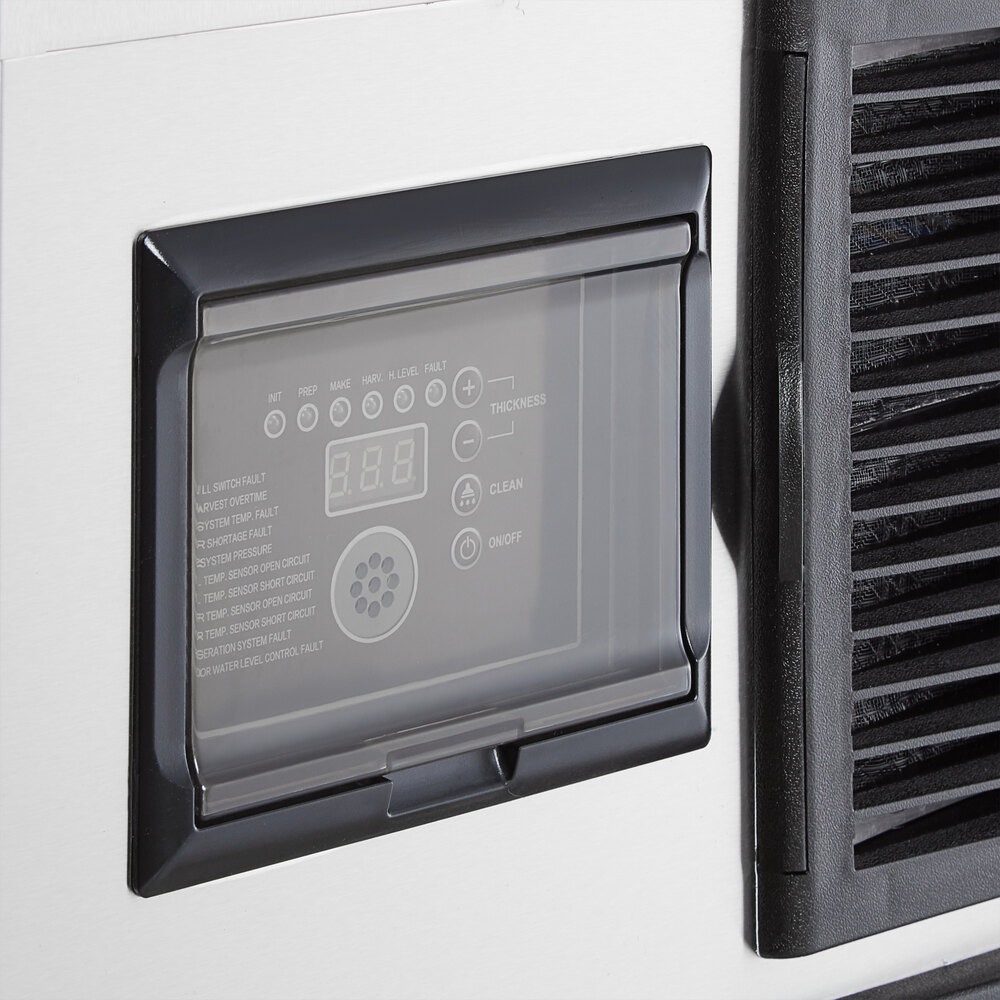

Ice Monitoring

This easy-to-use controller can also be used to monitor the current stage of ice production that your machine is in. It allows you to adjust the bridge thickness up or down to maximize your harvest into individual cubes of ice, rather than full sheets. It also initiates the cleaning cycle and displays what stage of the cycle you're in.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

Ask about this product
By using this AI-powered search, you agree to our Terms of Use and Privacy Policy.

Frequently Asked Questions From Customers

Does Avantco warrant this item for use in a food truck?
Avantco warrants new equipment sold to food truck customers to be operational for a period of 30 days from the date of delivery if installed and maintained correctly.
The height listed on this product includes the adjustable feet set to their lowest setting.
Yes, this ice machine incorporates an air gap at least twice the diameter of the water supply inlet and is not less than 25 millimeters (1 inch).
R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.
If your ice machine has been shut down or not in use for a prolonged period time, please reference your machine's user-manual for a restart procedure, often called “Winterization." Please reference your user manual or contact customer service with any questions.
It is important to install this unit in a location that is not in direct sunlight. This unit is intended for indoor use in temperature-controlled environments with ambient temperatures below 75 degrees and 60% relative humidity.
Whether you purchase the suggested water filter through this product page or acquire your compatible water filter elsewhere, be sure to consult the equipment's manual and warranty to understand the importance of correct water filter usage. Using poor quality feed water may void your equipment's warranty. Therefore, it’s important that your water be filtered to the highest quality.
We cannot guarantee that this can be used with other brands. We only recommend that it be used with the compatible models listed on this product page.

Compare to Other Products

Overall Dimensions:
Width:
30 Inches
Depth:
24 3/8 Inches
Height:
22 3/8 Inches

Please check the Compatibility resource for information on items that work with this product.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Due to US DOT shipping regulations, we are unable to ship this product to Alaska, Hawaii, and international destinations. It is also ineligible for next day or second day shipping and cannot be returned. Please contact Customer Solutions prior to placing your order if you have any questions or concerns.

Attention CA Residents:

Need Parts & Accessories?

Shop replacement parts and accessories for this item today!

Resources and Downloads

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Warranty Info

RESIDENTIAL USERS: Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications.

Resources

Specs

Quantity
1/Each
Shipping Weight
146 lb.
Width
30 Inches
Depth
24 3/8 Inches
Height
22 3/8 Inches
Amps
13.5 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
115 Volts
24 Hour Ice Yield
497 Pounds
Ambient Temperature Range
40 - 90 Degrees F
Average Running Decibels
73 Decibels
BTU Per Hour
3,798 BTU
Color
Silver
Condenser Type
Air Cooled
Ice Type
Full Size Cubes
Installation Type
Modular
Material
Stainless Steel
Net Weight
144 LBS
Packaging Dimensions
33.3"W x 29.6"D x 24.5"H
Plug Type
NEMA 5-15P
Power Usage
4.7 kWh per 100 lbs.
Refrigerant Type
R-290
Type
Ice Machines
Water Inlet Size
3/4 Inches
Water Pressure Range
18 3/4 - 80 PSI
Water Temperature Range
40 - 90 Degrees F
Water Usage
13.6 Gallons Per 100 lbs.

Equivalent Items

Avantco Refrigeration 194MC50030FA
Avantco Refrigeration MC50030FA

Customer Reviews

1.5

Rated 1.5 out of 5 stars

4 Customer Reviews

0 reviews rated this 5 out of 5 stars.

0 reviews rated this 4 out of 5 stars.

1 reviews rated this 3 out of 5 stars.

0 reviews rated this 2 out of 5 stars.

3 reviews rated this 1 out of 5 stars.

Customers Say

Customers report that this ice machine often underperforms and may have durability issues, with some experiencing breakdowns or loud operation noise. The build quality and materials used may not meet expectations for all users.

  • buy
  • ice
  • bought
  • machine
  • restaurant
  • steel
  • top
  • unit
  • years
  • absolutely

This AI-generated summary was created from real customer reviews

Rated 1 out of 5 stars
Rated 1 out of 5 stars
Review by

Robert R.

Posted on 08/08/2025

Verified Purchase

Size:
Half Cube, 500 lb.

Bought this machine, Worked fine for 2 1/2 years then started to make about 50% of what it used to. Now it is totally broken, Had someone look at it said it would be more expensive to fix it than it would be to buy a new one. This is a throwaway ice machine, very disappointed.

Thank you for your review, Robert! We would like to gather more information about your experience with this ice machine. A Customer Solutions Representative will contact you soon!

WebstaurantStore Customer Solutions

Rated 1 out of 5 stars
Rated 1 out of 5 stars
Review by

Shawn

Posted on 07/16/2025

Verified Purchase

Size:
Half Cube, 500 lb.

After just one year of use, the control panel failed after the warranty expired. Ice production barely reaches 250 lb (only 50% of the rated capacity). This is an unreliable product!

Thank you for your review, Shawn! We would like to gather more information about your experience with this ice machine. A Customer Solutions Representative will contact you soon!

WebstaurantStore Customer Solutions

Rated 1 out of 5 stars
Rated 1 out of 5 stars
Review by

Peter A.

Posted on 05/29/2025

Verified Purchase

Size:
Half Cube, 500 lb.

Bought this thing to top my soda fountain in my restaurant lobby. Just hooked it up and have nothing but regrets. The fan is unbearably loud. Like defending loud. There is a absolutely no way this would ever work in a restaurant. Even if I were to buy a bin and move it to back of house it would be too loud. $ wasted and I am sick to my stomach.

Thank you for your review, Peter. We would like to gather more information about your experience with this ice machine. A Customer Solutions Representative will contact you soon.

WebstaurantStore Customer Solutions

Rated 3 out of 5 stars
Rated 3 out of 5 stars
Review by

Dong J.

Posted on 08/25/2024

Verified Purchase

Size:
Full Cube, 497 lb.

Although product work what it supposed to quality of build was not what I expected. You get what you pay for is old saying that describes this purchase. Outer shell is thin flexible steel compared to my older ice maker which had thick steel that had weight to it. Noise level is somewhat you have to get used to like jet taking off sound. Hopefully I get least half of what my other unit lasted 18 years and still works. Also during shipping something must have went through box that bent top of unit but I didn’t report since it would become blame game between shipping companies. Overall I made decision to save money to buy and I don’t regret it.

Thank you for your review! We would like to gather more information about your experience with this ice machine. A Customer Solutions Representative will contact you soon.

WebstaurantStore Customer Solutions
