Waterloo 1.15 GPM Deck-Mounted Pre-Rinse Faucet with 4" Centers and 14" Add-On Faucet

Item number  750prd414
Free Shipping

$256.49/Each

Earn up to $7.69 back (769 points)with a Webstaurant Rewards Visa® Credit Card

Add to Wish List

Quick Shipping

Usually ships in 1 business day

Product Overview

  • 44" hose, 1.15 GPM spray valve
  • Deck-mounted design with 4" centers, 1/2" NPT inlets
  • 1/4 turn ceramic cartridges for long life and leak-protection, check valves prevent backflow
  • Heavy-duty faucet base and spray valve, chrome-plated brass construction
  • 14" add-on faucet (2 GPM), 18" riser

Shipping Restrictions

This item cannot ship to AZ or CA
UPC Code:400016240245
View all Waterloo Pre-Rinse Faucets

Works With

View All Items

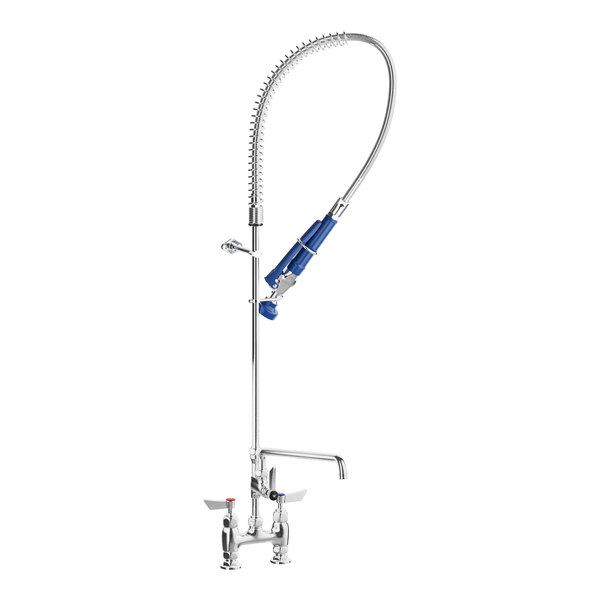

Outfit your facility with this Waterloo deck-mounted pre-rinse faucet!

This Waterloo deck-mounted pre-rinse faucet with 4" centers is perfect for rinsing excess food and sauces off of your dishes prior to running them through your commercial dish machine. A quality pre-rinse unit is vital to any dish room, removing the heaviest soil deposits so that dishes come out clean and ready to use. It is perfect for filling up sink compartments to complete your ware washing tasks. It's also great for mixing up cleaning solutions in sanitation pails. Waterloo products provide the industry-leading quality you expect.

  • CSA, US and Canada

    CSA, US and Canada

    This product has been certified by the Canadian Standards Association (CSA) to meet select standards for electrical, plumbing, and/or mechanical products in the United States and Canada.

  • NSF Listed

    NSF Listed

    This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.

  • 1/2" Water Connection

    1/2" Water Connection

    This unit comes with a 1/2" water connection for water supply.

Engineered for Durability

With heavy chrome-plated brass faucet bodies, ceramic cartridges engineered for durability, and certifications from a wide range of national and local regulatory agencies, you can install Waterloo products with confidence. The heavy-duty valve body is designed with a comfort-grip handle and uses metal components for maximum durability and leak protection. The hose spring has a compressed bottom to provide greater durability and help it retain its shape.

Flexible and Efficient

A long, 44" flexible hose gives you plenty of reach to deliver water where you need it, letting you handle glassware and dinnerware, or bulky items like pots and pans. The spray valve delivers a flow rate of 1.15 GPM, giving you the power needed to blast away food debris while being easy on your water bill. This pre-rinse unit also comes with a 14" add-on faucet, for times when you need a normal faucet instead of a spray valve.

Easy Installation

This faucet uses ceramic cartridges, which provide a much lower fail rate than the compression cartridges widely used in the industry. In this design, 2 ceramic discs fit together to create a watertight seal when closed. This removes the need for a rubber seat washer, which is one of the most frequently replaced parts on a faucet. This is a deck-mounted faucet, and it comes with 4" adjustable centers that make installation easy. A set of 1/2" NPT inlets make it easy to connect it to your facility's water lines. This pre-rinse unit comes with an 18" riser.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

Ask about this product
By using this AI-powered search, you agree to our Terms of Use and Privacy Policy.

Frequently Asked Questions From Customers

Can I get a spray valve with a higher flow rate (GPM)?
The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.
There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.
Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket.

If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective.

If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.
For both wall and deck mounted faucets, installation kits are sold separately. Check the Works With items to find the proper installation kits and parts!
Overall Dimensions:
Hose Length:
44 Inches
Faucet Centers:
4 Inches
Add-On Faucet:
14 Inches
Attention CA Residents:

Need Parts & Accessories?

Shop replacement parts and accessories for this item today!

Resources and Downloads

A PDF viewer is required to view this product's information. Download Adobe Acrobat software

Resources

Specs

Quantity
1/Each
Shipping Weight
13.98 lb.
Hose Length
44 Inches
Add-On Faucet
14 Inches
Add-on Flow Rate
2 GPM
Add-On Type
Swing
Cartridge Type
Ceramic
Faucet Centers
4 Inches
Features
ASME A112.18.1-2018 / CSA B125.1-18 NSF Listed NSF/ANSI 372 NSF/ANSI 61
Finish
Chrome
Handle Type
Lever
Material
Brass
Mounting Style
Deck Mounted
Mounting Type
Adjustable
Pre Rinse Unit Type
Hose and Spring
Spout Connection Size
1"-20 UNEF
Spray Valve Flow Rate
1.15 GPM
Temperature Rating
180 Degrees F
Water Inlet Size
1/2 Inches

Customer Reviews

2.0

Rated 2 out of 5 stars

1 Customer Reviews

Frequently Mentioned

  • assembled
  • assembly
  • beautiful
  • boxes
  • chatbot
  • documentation
  • faucet
  • guides
  • help
  • installation

Showing 1 of 1 review
Rated 2 out of 5 stars
Rated 2 out of 5 stars
Review by

Kevin M.

Posted on 09/02/2025

Verified Purchase

Size:
No Add-On Faucet

I ordered a pre-rinse faucet. Beautiful picture of the assembly on the purchase screen. I was shipped 3 separate boxes of parts. No documentation and no installation guides. No problem, I know how to plumb. Assembled the system and it leaks through manufacture interfaces. Hoping to be able to get past the AI chatbot for someone to help me.

Thank you for your review, Kevin! We would like to gather more information about your experience with this product. A Customer Solutions Representative will contact you soon!

WebstaurantStore Customer Solutions
