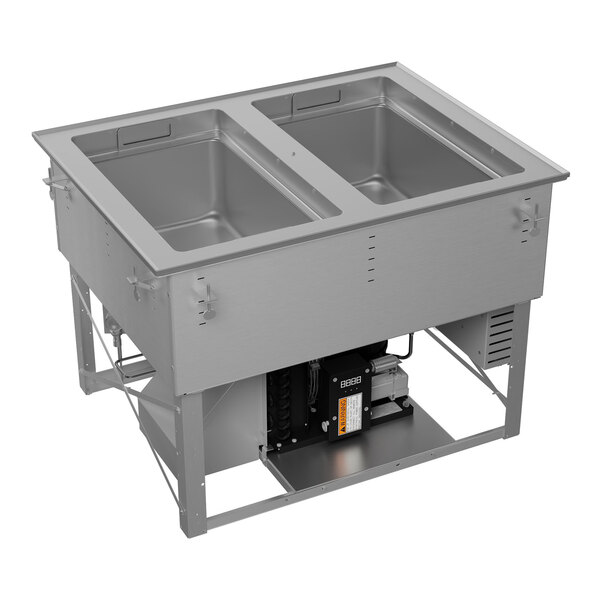

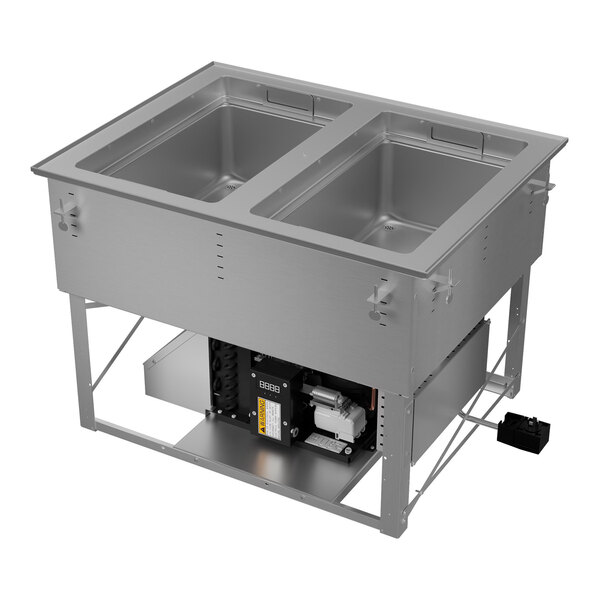

Vollrath FC-HCF-02120-AD Two Well Modular Drop-In Hot / Cold / Freeze Food Well with Auto Manifold Drain - 120V
Item number 922fchcf2120adMFR number FC-HCF-02120-AD
$8,508.89/Each
Login or enter your email to be instantly sent the price!
Start a Live Chat with a Customer Service rep to receive the price!
Mon-Thu 8AM-8PM EST · Fri 8AM-6PM EST · Sat 9AM-4PM EST
Earn up to $255.27 back (25,527 points)with a Webstaurant Rewards Visa® Credit Card
Usually Ships in 4 Weeks from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Toggles between hot and cold at the flip of a switch
- For use with full-size and fractional pans up to 6" deep
- Individual power indicator light and controls for each well
- Stainless steel construction and high-density polyurethane foam insulation
- Uses eco-friendly, low-GWP R-290 refrigerant; 120V
UPC Code:400017930763
- Quantity
- 1/Each
- Shipping Weight
- 185 lb.
- Width
- 33 15/16 Inches
- Depth
- 26 Inches
- Height
- 24 3/8 Inches
- Power Cord Length
- 6 Feet
- Control Cutout Width
- 7 1/8 Inches
- Cutout Width
- 33 1/16 Inches
- Louver Cutout Width
- 8 Inches
- Control Cutout Depth
- 3 7/8 Inches
- Cutout Depth
- 25 1/4 Inches
- Louver Cutout Depth
- 10 Inches
- Amps
- 10.3 Amps
- Voltage
- 120 Volts
- Wattage
- 1,250 Watts
- Compressor Location
- Bottom Mounted
- Control Type
- Thermostatic
- Drain Style
- Auto
- Features
- Made in America With Drain
- Gauge
- 18 Gauge
- Horsepower
- 1/4 hp
- Installation Type
- Drop In / Top Mounted
- Insulated
- With Insulation
- Material
- Stainless Steel
- Number of Wells
- 2 Wells
- Pan Mounting
- Recessed
- Plug Type
- NEMA 5-15P
- Power Type
- Electric
- Refrigerant Type
- R-290
- Refrigeration Type
- Cold Wall
- Size
- Full Size
- Stainless Steel Type
- Type 300
- Type
- Triple Temperature Wells
Vollrath FC-HCF-02120-AD Details
Change from a cold salad bar to a hot dinner buffet with this Vollrath drop-in hot / cold / freeze food well! With the flip of a switch, this food well can toggle between its 625W heating system or 1/4 hp refrigeration system with eco-friendly R-290 refrigerant to best suit your hot, cold, or frozen food holding needs. Each well is surrounded by refrigeration coils for optimal cooling and high-density polyurethane foam insulation to help you save energy. The 2" stepped cold wall recess near the top of each well helps maintain a cold air blanket around your cold foods. Plus, the R-290 refrigerant is a low global warming potential (GWP) refrigerant so your wells are safer and more eco-conscious. For fast heating, the bottom of each well has a 625W rope heater attached. Thermostatic controls let you alter the heat output to the perfect hot holding temperature.
This unit is made for use with full-size and fractional pans up to 6" deep. For long-lasting durability, this model features an 18-gauge galvanized steel exterior housing and 18-gauge, 300-series stainless steel wells and top flange. A stainless steel control panel provides individual controls and a power light for each well. The convenient power light will shine blue when cold and red when hot so you can quickly double check the status of your wells. The user interface also includes a 4' connection for versatile mounting.
The automatic, standard 3/4" integral drain has flexible manifold tubing that siphons runoff and condensation while a full-perimeter drip edge prevents liquid from flowing out onto your countertops. Plus, the included standard mounting clips allow for installation on counters up to 3" thick. The innovative Vollrath hot /cold / freeze food well is designed for simplified serviceability and is a perfect addition to any restaurant, cafeteria, or buffet! This unit includes a 6' power cord and requires a 120V electrical connection for operation.
Overall Dimensions:
Width: 33 15/16"
Depth: 26"
Height: 24 3/8"
Cutout Dimensions:
Width: 33 1/16"
Depth: 25 1/4"
Louver Cutout Dimensions:
Width: 8"
Depth: 10"
Control Cutout Dimensions:
Width: 7 1/8"
Depth: 3 7/8"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
Made in America
This item was made in the United States of America.
5-15P
This unit comes with a NEMA 5-15P plug.
UL Certified
This product is certified to applicable standards and requirements by UL Solutions.
