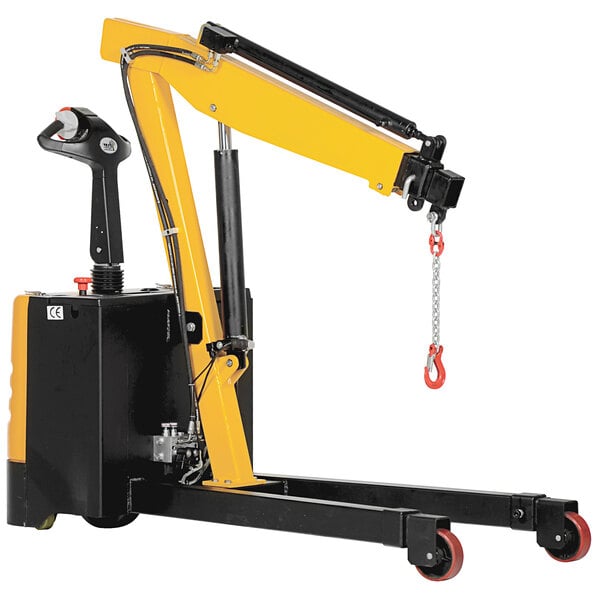

Vestil EPFC-25 Electric Steel Floor Crane with Adjustable Legs, 44 1/4" - 94" Lift, and 2,500 lb. Capacity

Vestil Manufacturing Co EPFC-25 Details

Ensure safe, efficient lifting and transporting of heavy machinery and equipment with this Vestil EPFC-25 2500 lb. electric steel floor crane with adjustable length legs, 44 1/4" - 94" lift, and 2,500 lb. capacity. This crane features a powerful 24V DC motor that allows it to effortlessly lift and transport loads weighing up to 2,500 lb. to a lift height range of 44 1/4" - 94". The maximum height of the crane arm is 110" at full extension. To maintain excellent stability under different load weights, the steel legs can be extended up to 103 1/8" in length.

This unit is easy to control with the ergonomic handle and control center. It features an easy-to-use forward/reverse throttle, raise and lower controls, a horn, and an emergency reverse control. For mobility, the unit is equipped with 4 durable poly-on-steel wheels, while the electromagnetic disc brake system has an automatic dead-man feature that halts movement as soon as the handle is released by the operator.

This unit is powered by the included (2) 12V, 80-95 Ah lead-acid deep cycle batteries. It also includes a built-in battery charger and an easy-to-read battery level gauge. The unit typically runs from 3 to 4 hours per full charge, and is capable of running up to 8 hours with less frequent use.

Overall Dimensions:
Length: 80" - 103 1/8"
Width: 30"
Height: 63"
Lift Height: 44 1/4" - 94"
Capacity: 2,500 lb.
