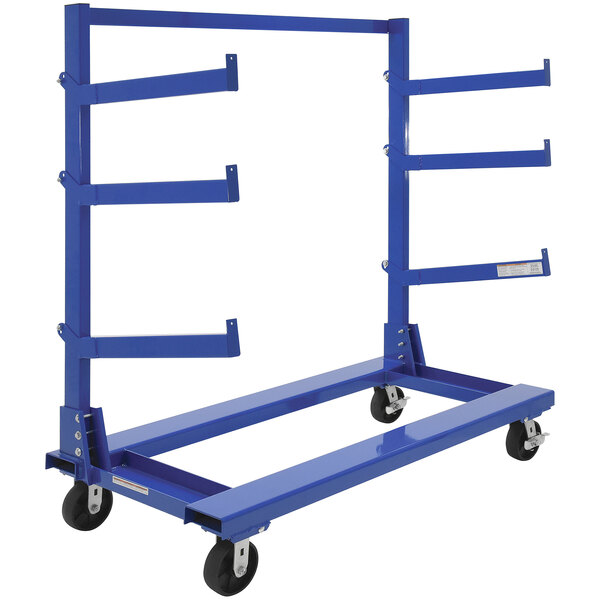

Vestil CANT-3060 Cantilever Cart with 6 Adjustable Arms and 2,000 lb. Capacity

Vestil Manufacturing Co CANT-3060 Details

This Vestil CANT-3060 cantilever cart with 6 adjustable arms and 2,000 lb. capacity provides an ideal storage solution for metal bars, rods, and similarly long, narrow materials. This cart is equipped with 6 arms that can be attached in the level or upward inclined position. Each arm has 24" of usable length and a hook on the end to contain materials at the front. The bottom pair of arms is positioned at a height of 18 3/4", while the top pair can be raised to a maximum height of 60 3/4".

This cart is constructed of steel with a powder-coated finish for maximum durability and resistance to scratching, chipping, and weathering. It has a 10" high base to keep materials off of the floor, with integrated 5-3/8" x 2" fork pockets for transporting via fork truck. The truck's capacity per level or pair of arms is 400 lb., while the unit has a maximum uniform weight capacity of 2,000 lb. The frame of the cart can hold a maximum of 8 arm pairs, or 16 arms total (additional arms sold separately), allowing for the installation of additional levels to utilize remaining weight capacity.

Overall Dimensions:
Width: 60 9/16"
Depth: 30"
Height: 64 11/16"
Capacity: 2,000 lb.

Arm Dimensions:
Length: 24"
Height (from base): 18 3/4" - 60 3/4"
Capacity (per pair): 400 lb.
