Turbo Air Refrigeration TPR-67SD-D4-N Specs
Quantity
1/Each
Shipping Weight
468 lb.
Width
67 Inches
Depth
36 1/4 Inches
Height
41 Inches
Nominal Width
68 Inches
Work Surface Height
31 Inches
Amps
5.6 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
115 Volts
1/3 Size Pan Capacity
9 Pans
Access Type
Drawers
Capacity
20 cu. ft.
Compressor Location
Side Mounted
Compressor Style
Front Breathing
Construction
Stainless Steel
Features
NSF CertifiedSelf Cleaning Condenser
Horsepower
2/3 hp
Interior Material
Stainless Steel
Number of Drawers
4 Drawers
Plug Type
NEMA 5-15P
Refrigerant Type
R-290
Refrigeration Type
Air Cooled
Temperature Range
33 - 41 Degrees F
Turbo Air Refrigeration TPR-67SD-D4-N Details

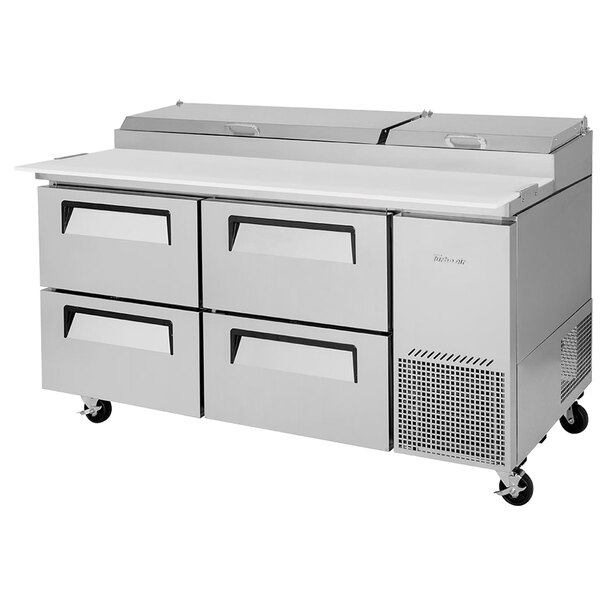

Thanks to its extra-deep 19 1/4" cutting board, the Turbo Air TPR-67SD-D4-N 67" four drawer pizza prep table provides plenty of space to build your signature pizzas, calzones, stromboli and more! Its topping rail accommodates (9) 1/3 size food pans up to 6" deep to keep all your fresh toppings close at hand. A side-mounted, front-breathing 2/3 hp compressor that runs on eco-friendly R290 refrigerant. This specialized refrigerant has an ozone depletion potential (ODP) of 0 and a global warming potential (GWP) of 3, making it an environmentally-responsible choice for your business. The side-mounted compressor helps maintain food safe holding temperatures and lets the unit be placed closer to the wall than comparable models, saving precious aisle space.
This unit also uses Turbo Air's revolutionary self-cleaning condenser system, which automatically cleans the condenser by moving a rotating brush up and down across its surface 2-3 times per day. Not only does this process eliminate the need for your employees to manually clean the condenser every few weeks, but it prevents dust from building up on the coils. In turn, this reduces the stress on the compressor and the risk of it breaking down, resulting in fewer maintenance calls and higher overall energy efficiency.
Each of this pizza prep table's drawers can accommodate up to (12) 1/6 size food pans full of backup toppings and ingredients. Turbo Air also ships this unit with a pack of 4" casters, giving you the option to make your unit mobile if it's beneficial to your kitchen floor plan. This unit requires a 115V electrical connection for operation.
Overall Dimensions: Width: 67" Depth: 36 1/4" Height: 41 7/8" Work Surface Height: 31" Capacity: 20 cu. ft.
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
Certified by NSF
This item is certified by NSF to applicable standards.
5-15P
This unit comes with a NEMA 5-15P plug.
ETL Listed
This product has been certified by ETL, a division of the Intertek Group.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
Does free shipping apply to this Turbo Air item if I am shipping it to a residential address?
No. The manufacturer charges an $80 fee for non-straight truck deliveries and a $100 fee for straight truck deliveries to a residential address. Please contact our Customer Solutions team prior to placing your order if you have any questions.
How do I know which Turbo Air unit I will receive?
Depending on your location, you may receive a model slightly different from what is shown, and specs may vary. For example, you may see “N” or “N6” at the end of the model number. To confirm which unit you will receive, please contact one of our customer solutions specialists.
I haven’t heard of R-290, R-600a, R-513a, or R-448A refrigerant before. What is it?
R-290 (also known as high purity propane or CARE 40) and R-600a (also known as refrigerant grade Isobutane or CARE 10) are hydrocarbon refrigerants. R513a (also known as Opteon XP10) and R-448A (also known as Solstice N40) are HFO (hydrofluoroolefin) refrigerants. They are being used by some manufacturers in response to the EPA’s Significant New Alternatives Policy (SNAP) Program.
My unit has an “-N” or “-N6” at the end of it, what does that mean?
-N means that the unit is R-290, and -N6 means the unit is R-600. The function of the unit is the same, this will mainly affect serviceability.
What kinds of pans can I use in my refrigerated prep table?
While various configurations combining traditional 1/3 size, 1/6 size, and other food pan sizes are possible, it's important to refer to your equipment's Specification Sheet and/or Owner's Manual to see what pan sizes and configurations are recommended. Certain accessories may be needed in order to use pans of a different size than what is recommended. It is also important to note that mixing and matching pans from different manufacturers may result in the pans not fitting properly.
