Name: T&S MPY-8WLN-12-CR EasyInstall Wall Mounted 22 1/4" High Mini Pre-Rinse Faucet with Adjustable 8" Centers, Low Flow Spray Valve, 24" Hose, 12" Add-On Faucet, and 6" Wall Bracket
Brand: T&S Brass and Bronze Works
SKU: 510MPY8W12CR
Availability: InStock

Item number 510mpy8w12crMFR number MPY-8WLN-12-CR

A chrome T&S pre-rinse faucet with a hose attached.

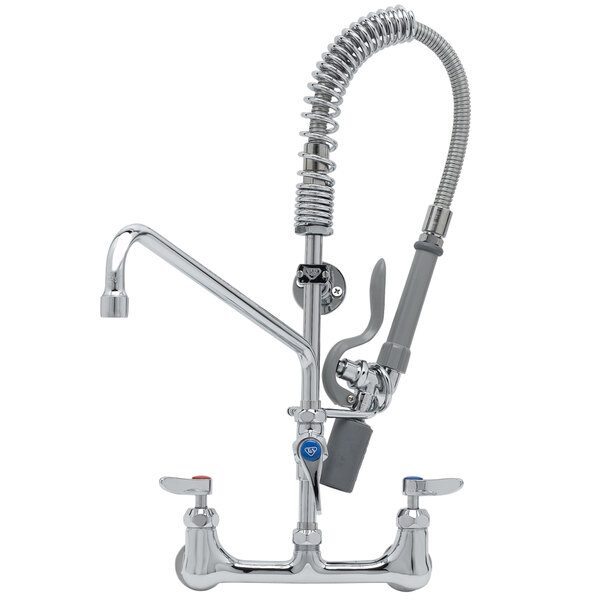

A chrome T&S pre-rinse faucet with a silver hose attached to it.

Video is loading

Free Shipping

$508.75/Each

Ships free with

Why do we do this?

Start a Live Chat with a Customer Service rep to receive the price!
Mon-Thu 8AM-8PM EST · Fri 8AM-6PM EST · Sat 9AM-4PM EST

Earn up to $15.26 back (1,526 points)with a Webstaurant Rewards Visa® Credit Card

Add to Wish List

Quick Shipping

Usually ships in 1 business day

Product Overview

8" centers, adjustable from 7 3/4" to 8 1/4"; 1/2" NPT female inlets
24" flex hose; 0.65 GPM B-0107-C spray valve
Lever handles with color coded indexes
Cerama ceramic cartridges; check valves; withstands temperatures up to 140 degrees Fahrenheit
Includes 12" add-on faucet and wall bracket; 22 1/8" overall height

UPC Code:671262745222

View All Products From T&S Brass and Bronze Works

View all T&S Brass and Bronze Works Pre-Rinse Faucets

T&S B-0230-K 1/2" NPT Elbow Installation Kit
$40.04/Each
T&S B-TEE-RGD 3/8" NPT Rigid Tee Assembly for Pre-Rinse Faucets
$69.57/Each
Easyflex White PTFE Thread Seal Tape 1/2" x 520"
$1.99/Each
T&S B-0230-KIT Inlet Kit with 24" Hoses and Elbows (1/2" NPT Male Supply Nipples x 3/8" Compression)
$45.98/Each

Quantity: 1/Each
Shipping Weight: 12.2 lb.
Hose Length: 24 Inches
Faucet Width: 12 5/8 Inches
Faucet Height: 22 1/8 Inches
Add-On Faucet: 12 Inches
Add-on Flow Rate: 5.35 GPM
Add-On Type: Swing
Cartridge Type: Ceramic
Faucet Centers: 8 Inches
Features: Made in America
Finish: Chrome
Handle Type: Lever
Material: Brass
Mounting Style: Wall Mounted
Mounting Type: Adjustable
Pre Rinse Unit Type: Hose and Spring Mini Pre-Rinse Faucets
Pressure Rating: 125 PSI
Spray Valve Flow Rate: 0.65 GPM
Temperature Rating: 40 - 140 Degrees F
Type: Pre-Rinse Units
Water Inlet Size: 1/2 Inches

T&S Brass and Bronze Works MPY-8WLN-12-CR Details

This T&S MPY-8WLN-12-CR wall mounted mini pre-rinse faucet features a 24" flex hose and spring design that provides plenty of versatility in a variety of warewashing applications, while its reduced height makes it a great fit for commercial kitchens where space is at a premium! A 0.65 GPM low flow spray valve makes it easy to clear food debris off of dishes before washing them, while conserving water and saving you money on your utility bill. Additionally, a 12" add-on swing faucet makes your sink even more versatile, allowing you to switch between the pre-rinse setup and normal faucet depending on what you need! Designed specifically to make installation as fast and hassle-free as possible, this EasyInstall faucet also comes with 1/2" NPT female inlets on 8" adjustable centers.

- 24" flex hose with spring is great for many pre-rinse applications

- 0.65 GPM spray valve (B-0107-C) with ergonomic squeeze handle

- Lever handles with color coded indexes for durability and easy operation

- Cerama ceramic cartridges provide excellent durability and leak-resistance since there is no seat washer, while using up to 20% less water than compression cartridges; check valves are included

- 12" add-on swing faucet is perfect for times when you need water but don't need a pre-rinse faucet

- Includes wall bracket for added support

- Durable chrome plated brass construction

Overall Dimensions:
Faucet Height: 22 1/8"
Faucet Width: 12 5/8"
Add-On Faucet: 12"

Attention CA Residents:

Made in America
This item was made in the United States of America.
NSF/ANSI/CAN 61 (Certified by CSA)
This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.
NSF/ANSI/CAN 372 (Certified by CSA)
This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.

Questions & Answers

Looking For Specific Info? Get quick answers to product questions with our AI-powered search.

By using this AI-powered search, you agree to our Terms of Use and Privacy Policy.

Frequently Asked Questions From Customers

Can I get a spray valve with a higher flow rate (GPM)?

The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

How do I use a wall bracket to stabilize a pre-rinse faucet?

Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket.

If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective.

If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.

How is the pre-rinse hose length measured?

Unless otherwise specified, the quoted hose length includes any grips or connectors at the end of the hose, so the actual working length of the hose may be slightly less than described. Please refer to the product's specsheet for more detailed dimensions.

I have a chemical injection system on my compartment sink. Can I use my pre-rinse faucet to supply water to it?

Yes! Item B-TEE-RGD is a rigid tee assembly that installs easily into an existing T&S pre-rinse faucet (or you can use it on a brand new faucet) and provides you with a means to deliver water to a chemical injection system, or other, similar sink accessories that may require a water supply.
