Name: T&S B-0129-VB-08 Wall Mount Pre-Rinse Unit with Balancer, 68" Hose, 1.07 GPM Spray Valve, Vacuum Breaker, and Adjustable Centers
Brand: T&S Brass and Bronze Works
SKU: 510B0129VB08
Price: 679.25 USD
Availability: LimitedAvailability

0:00 / 0:00

$679.25/Each

Ships free with Plus

Why do we do this?

Start a Live Chat with a Customer Service rep to receive the price!
Mon - Thur: 5am - 12am EST
Fri: 5am - 8pm EST
Sat & Sun: 9am - 4pm EST.

Earn up to $20.38 back (2,038 points)with a Webstaurant Rewards Visa® Credit Card

Usually Ships in 2-3 Weeks from manufacturer

Lead times vary based on manufacturer stock

Product Overview

Base is built with dual lever handles and quarter-turn Eterna cartridges
Vacuum breaker works to prevent backflow and keep unit running smoothly
Flexible stainless steel hose is 68" in length
Centers are adjustable from 7 3/4" to 8 1/4"
Convenient wall mount configuration

UPC Code:671262814294

View all T&S Brass and Bronze Works Pre-Rinse Faucets

Quantity: 1/Each
Shipping Weight: 16 lb.
Hose Length: 68 Inches
Faucet Width: 12 5/8 Inches
Faucet Height: 53 Inches
Add-On Faucet: None
Cartridge Type: Compression
Faucet Centers: 8 Inches
Features: Made in America Vacuum Breaker
Finish: Chrome
Handle Type: Lever
Material: Brass
Mounting Style: Wall Mounted
Mounting Type: Adjustable
Pre Rinse Unit Type: Hose and Balancer
Spray Valve Flow Rate: 1.07 GPM
Type: Pre-Rinse Units
Water Inlet Size: 1/2 Inches

T&S Brass and Bronze Works B-0129-VB-08 Details

This T&S B-0129-VB-08 wall mount pre-rinse unit with balancer, 68" hose, 1.07 GPM spray valve, vacuum breaker, and adjustable centers is perfect for removing stubborn food particles from your dishes. For easy installation, this wall mount unit features centers that are adjustable from 7 3/4" to 8 1/4", (2) 2" flanges with 1/2" NPT female inlets, and (2) 6" brackets that secure the risers into place. The entire pre-rinse assembly is elevated by (2) 24" risers that are connected with a 3/8" NPT pipe coupling and a 14" overhead extension arm with an adjustable tension balancer to provide better range of motion and to keep the hose out of the way when not in use.

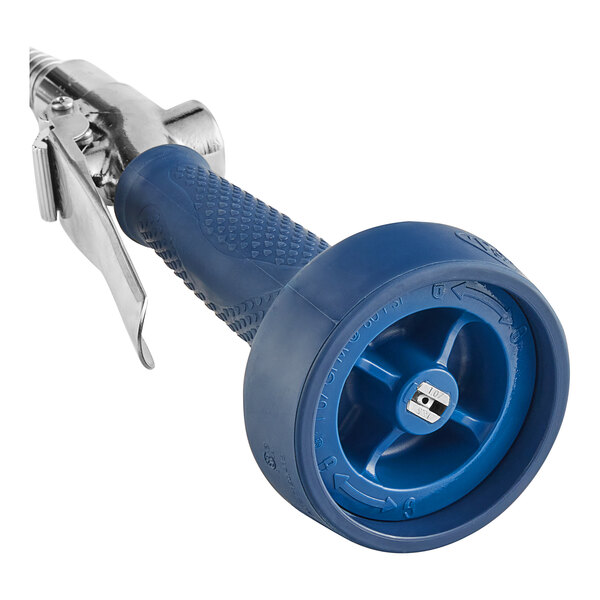

The flexible 68" stainless steel hose is complete with a 1.07 GPM spray valve. Additionally, the included vacuum breaker works to prevent backflow during continuous pressure use. At the base of the pre-rinse unit, two color-coded lever handles provide clear indication of water temperature, and quarter-turn Eterna cartridges with spring checks prevent water crossflow.

Overall Dimensions:
Faucet Width: 12 5/8"
Faucet Height: 53"

Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

Attention CA Residents:

Made in America
This item was made in the United States of America.
NSF/ANSI/CAN 61 (Certified by CSA)
This item is certified by CSA to meet the drinking water system component standards for Canada and the United States outlined in NSF/ANSI/CAN 61.
NSF/ANSI/CAN 372 (Certified by CSA)
This item is certified by CSA to meet the drinking water system component lead content standards for Canada and the United States outlined in NSF/ANSI/CAN 372.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.

Questions & Answers

Looking For Specific Info?

Get quick answers to product questions with our AI-powered search.

Frequently Asked Questions From Customers

Can I get a spray valve with a higher flow rate (GPM)?

A: The maximum flow rate for all commercial pre-rinse spray valves produced after January 28, 2019 is 1.28 GPM – more specific regulations may apply based on the valve’s spray force in ounce-force (ozf).

Product Class 1 (5 ozf or less) – Max Flow Rate: 1 GPM
Product Class 2 (5.01 - 8 ozf) – Max Flow Rate: 1.2 GPM
Product Class 3 (over 8 ozf) – Max Flow Rate: 1.28 GPM

These regulations do not impact spray valves made before January 28, 2019, and are implemented by the US Department of Energy in an effort to improve energy conservation.

Does this item have any additional agency approvals and certifications?

There are a wide range of regulations that govern plumbing code! We attempt to list any current certification marks with an official logo on the product page for your convenience. However, additional approvals, codes, and standards this product adheres to may be listed on the product specsheet.

How do I use a wall bracket to stabilize a pre-rinse faucet?

Pre-rinse faucets with a riser may include a wall bracket to help use the wall for added stability. Pre-rinse faucets without a riser will generally not include or need a wall bracket.

If your unit comes with a bracket, or you plan on adding one, the bracket can be installed at whatever height you prefer, but to be effective it should be placed far enough above the base so as to inhibit movement to the riser – placing too close to the base may make it ineffective.

If you intend to use a wall bracket, consider potential concerns with the installation location, such as shelving or windows behind the faucet, that might limit where you can place the bracket.

How is the pre-rinse hose length measured?

Unless otherwise specified, the quoted hose length includes any grips or connectors at the end of the hose, so the actual working length of the hose may be slightly less than described. Please refer to the product's specsheet for more detailed dimensions.
