$5,692.00/Each

Quick Shipping

Usually ships in 1 business day

Product Overview

  • High-quality, high-tensile stainless steel front and sides with a durable GalFan coated steel back
  • Left-hinge solid swing door design
  • Full-body, foamed-in-place polyurethane insulation
  • Includes 3 heavy-duty adjustable PVC-coated shelves
  • Uses R-290 refrigerant; 115V, 1/2 hp
UPC Code:400012088674

True Refrigeration TS-23F-HC LH Specs

Quantity
1/Each
Shipping Weight
310 lb.
Width
27 Inches
Depth
29 1/2 Inches
Height
83 3/8 Inches
Amps
3.7 Amps
Hertz
60 Hz
Phase
1 Phase
Voltage
115 Volts
Access Type
Doors
Capacity
20.8 cu. ft.
Caster Size
4 Inches
Casters
With Casters
Color
Silver
Compressor Location
Bottom Mounted
Construction
All Stainless Steel
Door Style
Swing
Door Type
Solid
Dutch Half Doors
Without Dutch Half Doors
Features
Energy Star Qualified Self-Closing Doors
Hinge Location
Left
Horsepower
1/2 hp
Installation Type
Freestanding
Number of Doors
1 Door
Number of Shelves
3 Shelves
Plug Type
NEMA 5-15P
Refrigerant Type
R-290
Sections
1 Section
Temperature Range
-10 - 0 Degrees F
Type
Freezers

True Refrigeration TS-23F-HC LH Details

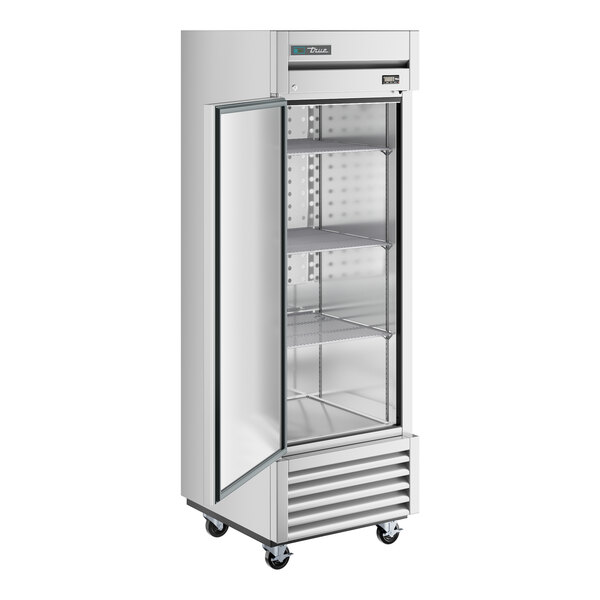

The True 27" stainless steel one section solid door reach-in freezer offers superior temperature control, easy maintenance, and low utility costs. Three heavy-duty, coated shelves offer excellent interior organization, and its 1/2 hp bottom mounted compressor operates in the coolest, most grease-free area of the kitchen for greater efficiency, and easier serviceability. It also raises the height of the bottom shelf for easier access and makes the condenser coil easier to reach for maintenance.

This reach-in freezer features a factory-engineered, self-contained capillary tube refrigeration system using R-290 hydrocarbon refrigerant, which has an Ozone Depletion Potential (ODP) of 0 and a Global Warming Potential (GWP) of 3. This refrigeration system holds cabinet temperatures of -10 degrees Fahrenheit to keep frozen foods at safe storage temperatures.

The left-hinge solid door is self-closing and comes with a magnetic door gasket that provides a tight seal. Durable and easy-to-clean, this unit is made of high-quality stainless steel inside and out with a matching aluminum back. This unit's cabinet features foamed-in-place polyurethane insulation for added structural strength and to reduce energy loss. This unit comes with (4) 4" casters, two with brakes, for maneuverability during cleaning. This unit requires a 115V electrical connection for operation.

Overall Dimensions:
Width: 27"
Depth: 29 1/2"
Height: 83 3/8"
Capacity: 20.8 cu. ft.

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents:
  • 5-15P

    5-15P

    This unit comes with a NEMA 5-15P plug.

  • UL Listed, US & Canada

    UL Listed, US & Canada

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States and Canada.

  • CE Listed

    CE Listed

    This product complies with the standards imposed by Conformance European (CE).

  • UL Classified EPH

    UL Classified EPH

    This product has been certified by the Underwriters Laboratories (UL) to meet applicable ANSI/NSF standards and / or other food equipment hygiene codes and requirements.

  • Energy Star Qualified

    Energy Star Qualified

    This item has been Energy Star Qualified by the US Environmental Protection Agency and the US Department of Energy, making it an energy-efficient product.
