ServIt SDW-2H Two Pan Full Size Insulated Drop-In Hot Food Well - 208/240V
$1,199.00/Each
$1,099.00/Each
Earn up to $35.97 back (3,597 points)with a Webstaurant Rewards Visa® Credit Card
Quick Shipping
Usually ships in 1 business day
Product Overview
- Designed for holding hot foods at a safe serving temperature
- Holds two full size 6" deep food pans (sold separately)
- Individual thermostatic controls with remote control
- Durable stainless steel top and body
- 1000W of power per well
Works With"Works With" items are guaranteed to work with the item you are viewing, such as lids that will fit a cup or casters that will fit a piece of equipment. If an item is not listed in this section, we do not guarantee that it will work with the product you are viewing and do not recommend that you purchase them for use together.
Hold and display your hot food safely while keeping it warm for your customers with this ServIt two pan insulated drop-in hot food well!
This hot food well is designed to hold your cooked food at a safe serving temperature, keeping it warm and ready to eat for your guests without affecting quality or further cooking your food. It's perfect for restaurants, cafeterias, buffets, and serving lines, holding cooked vegetables, pasta, fried chicken, and other cooked product. This unit requires a 208/240V electrical connections for operation.
UL Listed, US
This product has been certified by the Underwriters Laboratories (UL) to meet applicable safety standards required for use in the United States.
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
6-20P
This unit comes with a NEMA 6-20P plug.
Durable Construction
For long-lasting durability, this unit features a robust 18 gauge type 304 stainless steel top and well liner and a 20 gauge type 430 stainless steel exterior, making the outside body easy to clean and resistant to corrosion.
Removeable Drain Plug
Each well comes with its own removable drain plug, which lets you drain and fill individual wells.
Convenient Design
This hot food well can hold two full size 12" x 20" food pans up to 6" deep for added convenience (sold separately).
Thermostatically Controlled
It features individual thermostatically controlled wells with a remote to adjust temperatures between 136 and 194 degrees Fahrenheit, and it has individual 3/4" NPT drains with screens to prevent food waste from entering the plumbing line, allowing for quick draining during cleanup. This unit features 1000W of power per well with a thick blanket insulation to hold in the heat and keep energy costs low.
Questions & Answers
Looking For Specific Info? Get quick answers to product questions with our AI-powered search.
Frequently Asked Questions From Customers
We highly recommend that you receive the unit, measure it to confirm exact dimensions needed, and then proceed with making the cutout(s).
Watch More Videos

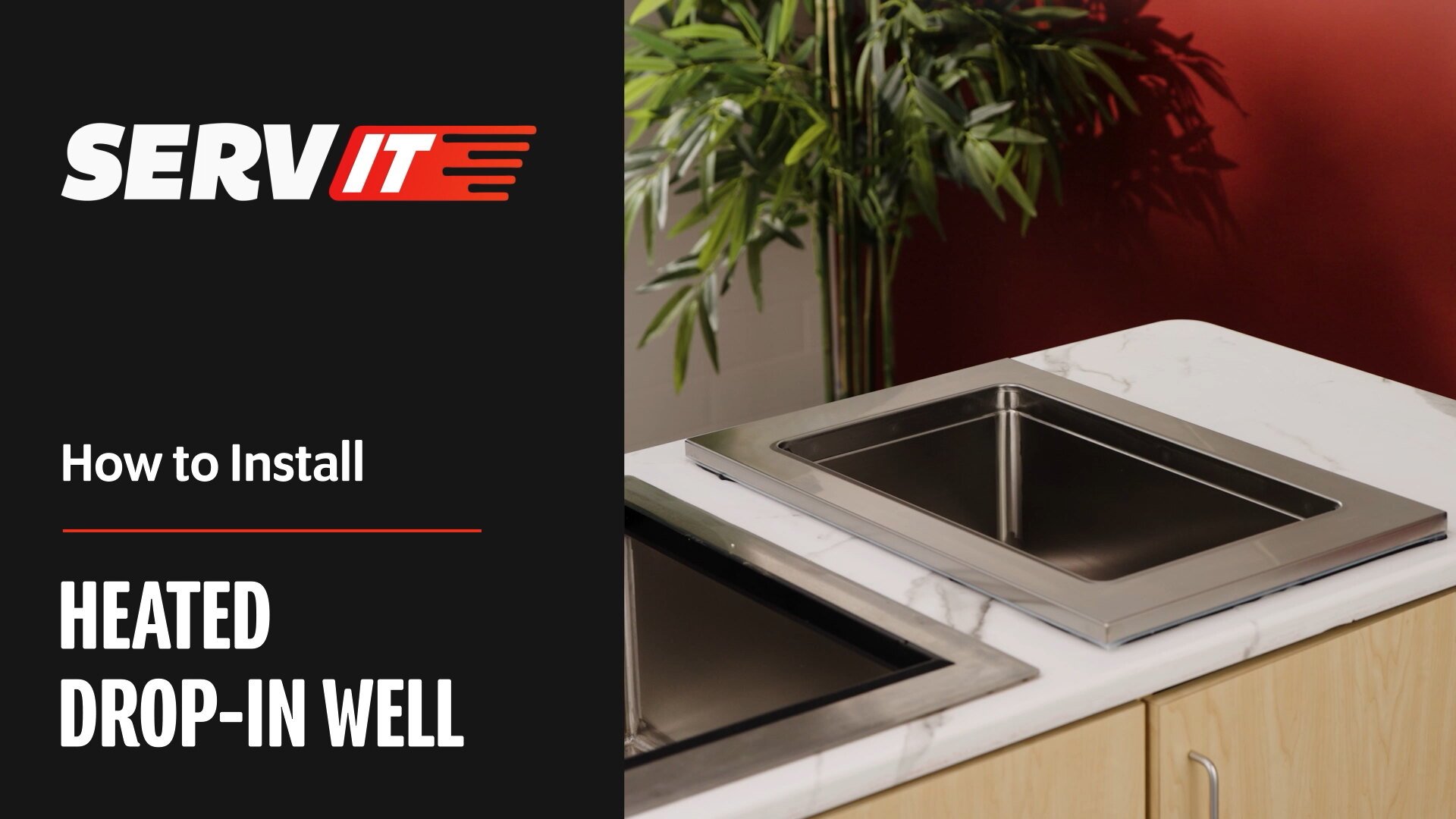

How to Install Servit Heated Drop-In Well
Learn how to install your heated drop-in well.
How to install your heated drop-in well. Mark and draw the cutout on the countertop according to the measured dimensions on the unit. After marking, carefully cut out the countertop along the drawn lines.
Apply putty or butyl tape around the underside of the well’s outer rim. Drop the well into the cut out, pressing down until the flange sits flush with the countertop. Add a ¼” bead of food-grade silicone next to the putty or tape along the flange. Allow the silicone to set and fully cure before connecting any electrical or water connections.
You can mount the control box to the apron, making sure there is at least 4 inches of space between the box and the well. You can also mount the control box under the well using the threaded insert located in the center front under the well to attach the box.
Continue to install the drop-in well by attaching a 3/4” NPT ball valve to the drain line and connecting it to your waste line.
Finally, plug the unit into a dedicated outlet that meets its electrical requirements. Ensure all electric units are installed according to NEC and local codes. For proper trap and drain installation, consult a qualified plumber to meet local plumbing standards.
- Width:
- 29 5/8 Inches
- Depth:
- 25 7/8 Inches
- Height:
- 14 3/4 Inches
- Cutout Width:
- 28 3/8 Inches
- Cutout Depth:
- 24 7/8 Inches
- Control Width:
- 8 1/16 Inches
- Control Depth:
- 3 3/8 Inches
- Control Height:
- 4 1/8 Inches
- Control Cutout Width:
- 8 7/16 Inches
- Control Cutout Height:
- 4 1/2 Inches
