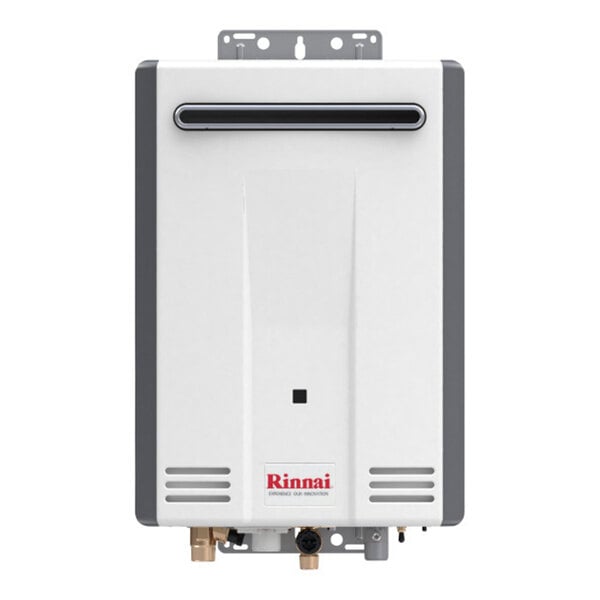

Rinnai V53DeN Natural Gas Wall-Mounted Outdoor Tankless Water Heater - 120V, 120,000 BTU, 5.3 GPM
Quick Shipping
Usually ships in 1 business day
Product Overview
- High-efficiency on-demand hot water solution
- Temperature control range from 115 to 140 degrees Fahrenheit
- Maximum flow rate of 5.3 GPM; 120,000 BTU, 120V power supply
- Compact wall-mounted design saves space
- Features a Uniform Energy Factor (UEF) of 0.81
- Quantity
- 1/Each
- Shipping Weight
- 29.7 lb.
- Width
- 14 Inches
- Depth
- 7 7/8 Inches
- Height
- 21 13/16 Inches
- Amps
- 1.2 Amps
- Hertz
- 60 Hz
- Voltage
- 120 Volts
- Application
- Multiple Points of Use
- BTU Per Hour
- 120,000 BTU
- Color
- Gray
- Features
- Digital Display Energy Efficient Made in America
- Flow Rate
- 5.3 GPM
- Gas Connection Size
- 3/4 Inches
- Installation Type
- Stationary
- Noise Level
- 54 dB
- Power Type
- Natural Gas
- PSI
- 20 - 150 PSI
- Style
- Tankless
- Temperature Range
- 115 - 140 Degrees F
- Type
- Water Heaters
- Usage
- Outdoor
- Water Inlet Size
- 3/4 Inches
Rinnai V53DeN Details
Effortlessly meet hot water demands with the Rinnai V53DeN outdoor tankless water heater. Operating at 120,000 BTU and offering a flow rate of up to 5.3 gallons per minute, this tankless water heater ensures a continuous, efficient hot water supply suitable for small to medium offices, cafes, and retail stores. Its Uniform Energy Factor (UEF) of 0.81 and Ultra-Low NOx emissions also make it an eco-conscious choice that reduces both energy consumption and operating costs.
This model features a precise digital temperature control system, adjustable from 115 to 140 degrees Fahrenheit to accommodate varying operational needs. It can also support water supply pressure between 20 - 150 PSI. This water heater offers reliable performance even at high altitudes of up to 10,200 feet. Safety is prioritized with built-in features such as flame failure detection, combustion fan RPM check, boiling protection, overcurrent protection, and automatic frost protection, delivering peace of mind in diverse operating conditions.
With its slim, wall-mounted design, this tankless water heater seamlessly integrates into any indoor setting while conserving valuable space. This unit requires a 120V electrical connection for use. It features concentric venting and it utilizes natural gas. Designed to save energy and space, the Rinnai V53DeN provides a dependable, high-performance water heating solution for your facility.
Overall Dimensions:
Width: 14"
Depth: 7 7/8"
Height: 21 13/16"
Attention CA Residents:
Made in America
This item was made in the United States of America.
ARI / AHRI
This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.
CSA Design, US
This item has been certified by the Canadian Standards Association (CSA) to meet applicable certification requirements for gas-fired products used in the United States.
CSA, US and Canada
This product has been certified by the Canadian Standards Association (CSA) to meet select standards for electrical, plumbing, and/or mechanical products in the United States and Canada.
3/4" Gas Connection
This unit comes with a 3/4" gas connection to be installed by a professional.
3/4" Water Connection
This unit comes with a 3/4" water connection for water supply.
CSA Blue Flame, Canada
This product has been certified by the Canadian Standards Association (CSA) to meet requirements for gas-fired products in Canada.
