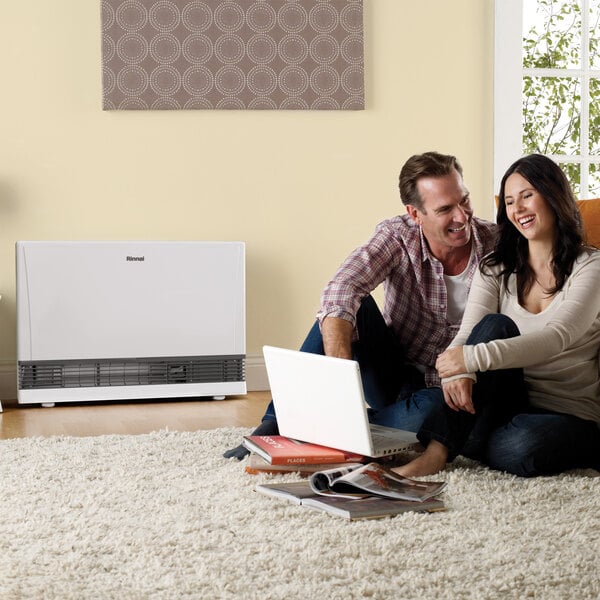

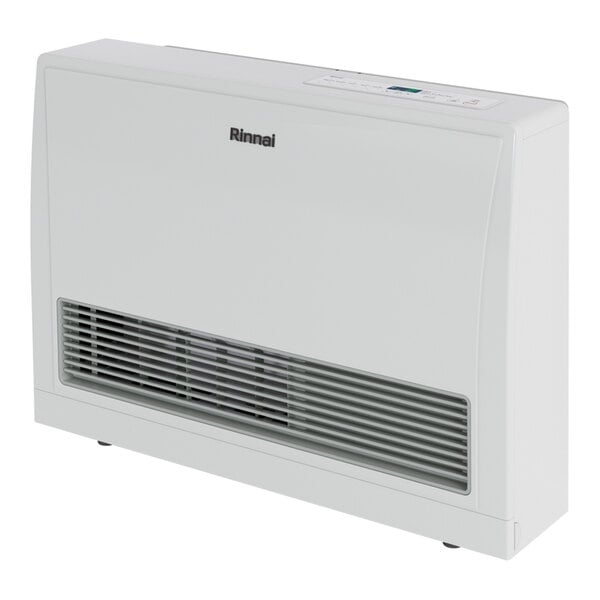

Rinnai EnergySaver Liquid Propane White Direct-Vent Wall Furnace EX22DTWP - 120V, 20,700 BTU
Item number 61bex22dtpwMFR number EX22DTWP
$2,325.40/Each
Login for details
Earn up to $69.76 back (6,976 points)with a Webstaurant Rewards Visa® Credit Card
Usually Ships in 5-10 Business Days from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- To be installed / utilized in residential settings only by qualified technicians
- Delivers 8,200 BTU on the low setting and 20,700 BTU on the high setting
- Easy to use with electronic push-button operation and a programmable thermostat
- Energy-saving modulating technology intuitively supplies heat to eliminate cold spots
- Flexible venting provides easy surface mounting on virtually any outside wall
UPC Code:400017942414
- Quantity
- 1/Each
- Shipping Weight
- 51 lb.
- Width
- 29 15/16 Inches
- Depth
- 10 1/8 Inches
- Height
- 22 15/16 Inches
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 120 Volts
- Wattage
- 30 Watts
- Color
- White
- Features
- Humidifier Tray
- Gas Connection Size
- 1/2 Inches
- Installation Type
- Wall Mounted
- Noise Level
- 33 - 42 dB
- Power Type
- Liquid Propane
- Temperature Range
- 60 - 80 Degrees F
- Total BTU
- 20,700 BTU
- Tray Capacity
- 2.1 Pints
- Type
- Furnaces
- Usage
- Residential
Rinnai EX22DTWP Details
Keep your space warm with this Rinnai furnace! This white furnace is intended for installation / utilization in residential settings only by qualified technicians. It is great for keeping basements, sunrooms, and entire homes warm and comfortable. It distributes heat evenly from floor to ceiling, and it offers consistent warmth with reduced cold spots. It is quick and easy to surface mount and install with flexible venting that allows for positioning along virtually any outside wall. This unit not only maintains preset temperatures, but it also reduces heat loss thanks to its ductless design.
This furnace is easy to use with electronic push-button operation and a programmable thermostat. It delivers 8,200 BTU on the low setting and 20,700 BTU on the high setting. Its temperature can be adjusted from 60 to 80 degrees Fahrenheit in 2-degree increments. This unit features energy-saving modulating technology that intuitively matches the specific level of heat needed at any moment. It responds to even the smallest temperature changes to eliminate cold spots within seconds.
This furnace is approved for installation at high altitudes of up to 10,200', and it quietly operates at a maximum of 42 dBA. It supports connection to a Wi-Fi-enabled thermostat (sold separately) so that users can manage settings remotely. This unit comes with a 2.1-pint humidifier tray to add moisture to the heated air, helping to maintain comfortable indoor humidity. It also comes with the necessary installation and wall-mounting hardware. It requires a 120V electrical connection and a liquid propane connection operation.
Overall Dimensions:
Width: 29 15/16"
Depth: 10 1/8"
Height: 22 15/16"
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.

1/2" Gas Connection
This unit comes with a 1/2" gas connection to be installed by a professional.

CSA, US and Canada
This product has been certified by the Canadian Standards Association (CSA) to meet select standards for electrical, plumbing, and/or mechanical products in the United States and Canada.

ICC-ES PMG, US & Canada
This plumbing, mechanical or fuel gas product has been evaluated by ICC-ES to meet requirements of the International Uniform codes and other applicable standards for use in the United States and Canada.
