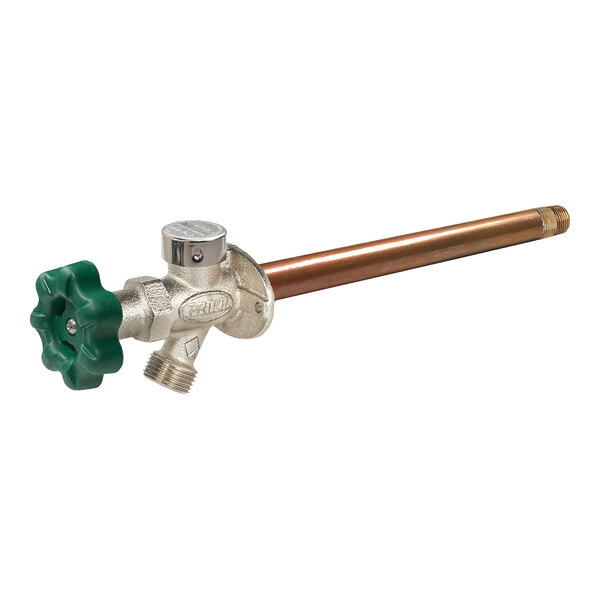

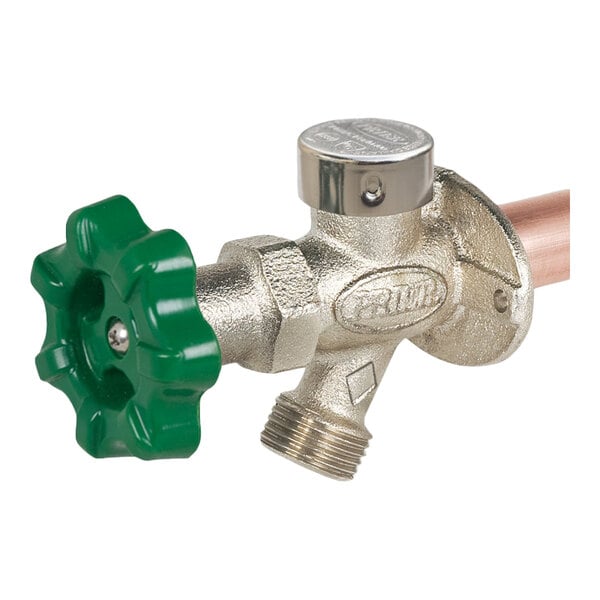

Prier P-164D08 Diamond Series 8" Non-Freeze Anti-Siphon Wall Hydrant with Quarter-Turn Handle
Item number 15cp164d08MFR number P-164D08
Usually Ships in 1-3 Business Days from manufacturer
Lead times vary based on manufacturer stock
Product Overview
- Connects to indoor water supply to prevent freezing
- Anti-siphon vacuum breaker with check valves reduces risk of backflow
- Angled, integrated flange promotes proper drainage
- Quarter-turn handle with an ergonomic soft grip
- 8" wall insert, 1/2" MPT x 1/2" SWT connections, 3/4" hose connection
UPC Code:400017944715
- Quantity
- 1/Each
- Shipping Weight
- 1.46 lb.
- Width
- 3 5/8 Inches
- Height
- 2 7/8 Inches
- Color
- Silver
- Features
- Freeze-Resistant Made in America Vacuum Breaker
- Finish
- Nickel Satin
- Flow Rate
- 7 GPM
- Included
- Mounting Hardware
- Installation Type
- Wall Mounted
- Material
- Brass Cast Aluminum
- Maximum Pressure
- 125 PSI
- Maximum Temperature
- 140 Degrees F
- Type
- Hydrants
- Wall Thickness
- 8 Inches
- Water Inlet Size
- 1/2 Inches
Prier Products Inc. P-164D08 Details
Protect your outdoor water supply from harsh winter temperatures with this Prier Diamond Series 8" non-freeze anti-siphon wall hydrant with quarter-turn handle. This wall hydrant connects to your water supply inside the heated portion of your structure and is specifically designed to prevent freezing in colder climates. It features a solid brass construction with an attractive satin nickel finish and an integrated flange that's easily secured with the included mounting screws. The aluminum anti-siphon vacuum breaker minimizes the risk of backflow using an EPDM backflow preventer and check valve components, helping to keep your water clean and uncontaminated.
This wall hydrant features a quarter-turn handle made of cast aluminum with an ergonomic design for quick and easy use. The rubber coating provides a soft grip, making it ideal for wet and cold conditions. This hydrant also uses a simple rising stem design that requires no cartridge. The EPDM rubber seal ensures a leak-resistant operation. With a flow rate of 7 GPM and maximum operating PSI of 125, this hydrant is both reliable and versatile with the ability to withstand temperatures up to 140 degrees Fahrenheit. This Prier wall hydrant includes an 8" wall insert and has 1/2" MPT x 1/2" SWT connections and a 3/4" hose connection.
Overall Dimensions:
Width: 3 5/8"
Height: 2 7/8"
Wall Thickness: 8"
Because this item is not stocked in our warehouse, processing, transit times and stock availability will vary. If you need your items by a certain date, please contact us prior to placing your order. Expedited shipping availability may vary. We cannot guarantee that this item can be cancelled off of the order or returned once it is placed.
Attention CA Residents:
Made in America
This item was made in the United States of America.
ASSE Certified
This product has been certified by ASSE International to meet safety and performance standards for plumbing and mechanical systems
IAPMO R&T, UPC Certified - USA & Canada
This product is certified by the International Association of Plumbing and Mechanical Officials (IAPMO) to meet Uniform Plumbing Code (UPC) standards for the USA and Canada.
1/2" Water Connection
This unit comes with a 1/2" water connection for water supply.
