Pioneer Series WYS-22 WYS024GMFI22RL-16 Wall Mounted Ductless Mini Split AC / Heat Pump System - 220V, 24,000 BTU
Item number 589wys024gmMFR number WYS024GMFI22RL-16
This Product is no longer available
Browse our full selection$1,449.00/Each
This product is no longer available. We've left this page up for reference only.
Product Overview
- Provides 4-in-1 cooling, heating, dehumidification, and ventilation
- Features temperature compensation, so that the air between the floor and ceiling is balanced
- Operates quietly to avoid background noise

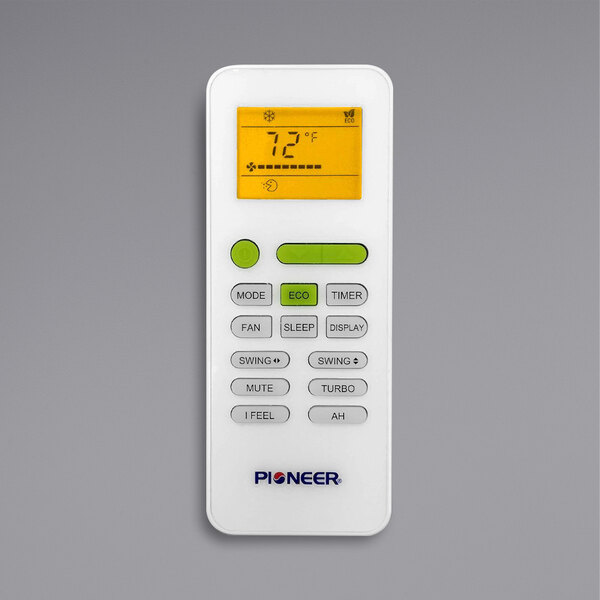

- Includes a wireless remote control with digital screen for convenience
- Ideal for areas that are 650-900 sq. ft.; 220V, 24,000 BTU
UPC Code:400015244237
Other Products from this Line
- Quantity
- 1/Each
- Shipping Weight
- 175 lb.
- Indoor Unit Width
- 42 1/2 Inches
- Outdoor Unit Width
- 37 1/4 Inches
- Indoor Unit Depth
- 8 7/8 Inches
- Outdoor Unit Depth
- 16 1/2 Inches
- Indoor Unit Height
- 13 1/8 Inches
- Outdoor Unit Height
- 31 7/8 Inches
- Voltage
- 220 Volts
- Color
- White
- HSPF / HSPF2
- 10 Rating
- Mounting Style
- Wall Mounted
- Plug Type
- Hardwire
- Range
- 650 - 900 Square Feet
- Refrigerant Type
- R-410A
- SEER / SEER2
- 21 Rating
- Total BTU
- 24,000 BTU
- Type
- Air Conditioners DIY Heat Pump Systems
Parker Davis HVAC International WYS024GMFI22RL-16 Details
This Pioneer Series WYS-22 WYS024GMFI22RL-16 wall mounted ductless mini split AC / heat pump system provides cooling, heating, dehumidification, and ventilation all in one! This unit is compact yet mighty, as its DC Inverter and compressor act together to achieve the exact heating or cooling loads you desire. With automatic air discharge louvers, every part of your business will be properly circulated with your desired air flow. Its variable speed motor is virtually inaudible, making it distraction-free. Plus, the digital wireless remote controller that comes standard with your unit enables you to have full control of the settings from anywhere that's convenient.
For optimal versatility, this unit can be wall mounted in a space that's 650-900 sq. ft. It features temperature compensation, so that the air between the floor and ceiling is thoroughly combined, allowing for a consistent and balanced climate. Not only does it maintain the temperature, it automatically increases cooling or decreases cooling at night to conserve energy.
This mini split system has a 21 SEER energy rating and uses R410A refrigerant, using less energy than the average air conditioner and making it an environmentally-friendly choice for your business. It intuitively detects refrigerant leakage and shuts off immediately if leaking, saving the compressor from damage. To ensure the comfortability of guests year-round, the indoor fan speed is regulated from the lowest grade to the set grade according to the evaporator's temperature, which counters any cold air coming in while in heating mode. A 220V, hardwired, electrical connection is required for operation and should be installed by a professional.
Indoor Unit Dimensions:
Width: 42 1/2"
Depth: 8 7/8"
Height: 13 1/8"
Outdoor Unit Dimensions:
Width: 37 1/4"
Depth: 16 1/2"
Height: 31 7/8"

ARI / AHRI
This certification is awarded by the Air-Conditioning, Heating, and Refrigeration Institute to denote products of exceptional performance.

Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.

ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
Need Parts & Accessories?
Show replacement parts and accessories for Parker Davis HVAC International WYS024GMFI22RL-16 today!
Find Parts for this ItemResources and Downloads for Parker Davis HVAC International WYS024GMFI22RL-16

Specsheet
Opens in new tab
Warranty
Opens in new tab
AHRI Certificate
Opens in new tab
Service Manual
Opens in new tab
Warranty Registration
Opens in new tab
Owner's Manual
Opens in new tab
Installation Manual
Opens in new tabA PDF viewer is required to view this product's information. Download Adobe Acrobat softwareOpens in new tab
Warranty Info
Warranty is 5 years on parts and the compressor, upon registration of the system by paper or website within 90 days of install. Labor costs are not covered.
