Pioneer Quantum Ultra WYT-24 WYT009GLSI24RL High Wall-Mounted Ductless Mini Split AC / Heat Pump System - 24 SEER2, 9,000/10,000 BTU, 208-230V

Pioneer WYT009GLSI24RL Details

This Pioneer Quantum Ultra WYT-24 ductless mini split AC / heat pump system provides all-in-one cooling, heating, dehumidification, and ventilation for your establishment. With 9,000 BTU of cooling power and 10,000 BTU of heating power, this system is recommended for heating / cooling spaces ranging from 150 to 350 sq. ft. The included air handler wall mounts indoors at a minimum of 6' high while the heat pump mounts outdoors. This system has a 24 SEER2 energy rating and uses R-454B refrigerant to conserve energy.

This system can be operated using the digital wireless remote controller with an LCD screen or remotely via the smartphone app. This app allows you to adjust the temperature, set the timer, activate sleep mode, or track and monitor your system's operation. You can also select between low, medium, high, and mute modes or a turbo mode specifically designed for high-demand applications. The included remote offers the same control with the addition of setting a self-cleaning cycle, saving your favorite settings as memories, or using the iFeel mode to detect and adjust to the local temperature.

The included air handler operates using a quiet motor with ball bearings for non-disruptive use. Its automatic synchronized air discharge louvers ensure proper air circulation. It features a digital backlit LED display to show the set temperature, and it is constructed with a durable ABS plastic casing. It offers auto changeover, dry, and fan only modes. It comes with washable, removable air filter cartridges to capture dust, pollen, and other airborne particles from the indoor air.

The included heat pump has a variable-speed DC inverter and a high-output, variable-speed compressor for efficient use. It comes pre-charged with R-454B refrigerant, and it operates using a permanently lubricated EC-DC outdoor motor. It features a heavy coat of baked enamel paint and is made with anti-discoloration formulated plastic dyes to prevent yellowing, fading, and discoloration. Plus, it has intelligent defrosting to manage when and how it defrosts in cold weather.

This system includes season sensitive operational logic to automatically adjust its operational parameters depending on whether it is heating or cooling season. It is built for use in ambient temperatures as low as -13 degrees Fahrenheit when heating and as high as 131 degree Fahrenheit when cooling. Its auto-restart memory allows the machine to automatically resume operation with the previous settings after a power outage. This unit includes overload protection for the motors and dual drainage ports. It requires a 208-230V electrical connection for operation.

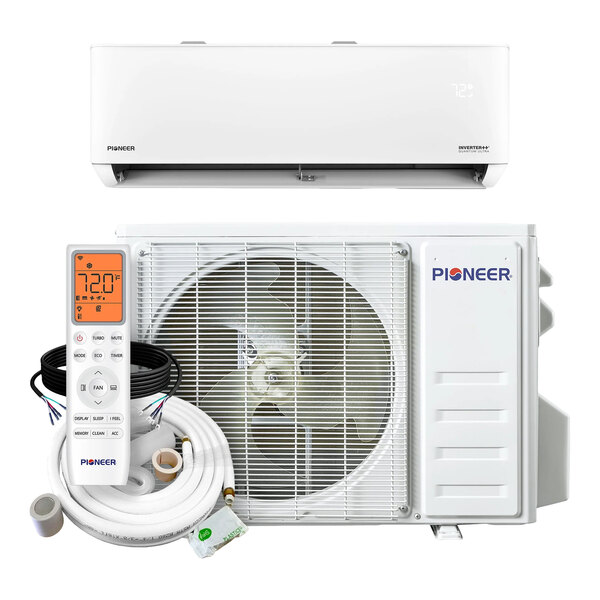

Kit Includes:
- Air handler
- Heat pump
- Wireless remote
- Remote control wall holder
- Remote batteries
- Copper lines
- Electrical wire
- 10' drain
- Wall passage sleeve
- Putty for wall hole
- Leak guard sealer
- Wrapping tape

Air Handler Dimensions:
Width: 32 1/4"
Depth: 7 5/8"
Height: 12"

Heat Pump Dimensions:
Width: 31 7/8"
Depth: 12"
Height: 21 5/8"
