Product Overview

  • Onboard variable speed options can be used with a remote control (sold separately)
  • Durable spun aluminum construction does not chip, rust, or peel
  • 12 1/4" non-overloading wheel provides efficient airflow
  • Can be wall-mounted or installed on your rooftop
  • Energy-saving, 1/2 hp motor produces up to 1,548 CFM; 120/240V, 1 phase
View all Canarm Kitchen Hood Exhaust Fans & Intake Fans

Works With

This is an outlet item

Any warranty information listed in the manual is void unless otherwise stated and we will not be able to accept any returns.

Return Policy

Please note that all items are sold as is, and all sales are final. To ensure that each product in WebstaurantStore Outlet will work correctly upon arrival, it is tested by an experienced technician prior to shipping. We recommend that you carefully read the product description, damage/use description, and other related product literature such as specification sheets and product manuals before placing your order.

Please inspect each item carefully when it arrives at your place of business. If you observe any damage not detailed in the description on this website that may have been caused during shipping, do not sign for the delivery and contact us ASAP.

Cart Policy

Because Outlet items sell quickly on a first-come, first-serve basis, simply placing the item in your shopping cart for checkout at a later time does not guarantee a "hold" on the item.

Warranty Policy

Note that Outlet products are sold without any warranty. If you have any questions or concerns about a product even after reading the description and product literature, please contact us.

Canarm ALX120-UD050EC Specs

Quantity
1/Each
Shipping Weight
35 lb.
Width
25 Inches
Depth
19 Inches
Height
19 Inches
Wheel Diameter
12 1/4 Inches
Hertz
60 Hz
Phase
1 Phase
Voltage
120/240 Volts
Color
Silver
Curb Size
19 Inches
Drive Type
Direct Drive
Horsepower
1/2 hp
Installation Type
Roof Top Mounted Wall Mounted
Material
Aluminum
Max CFM
1,548 CFM
Min CFM
325 CFM
Motor Type
Direct Drive
RPM
1,800 RPM
Speeds
Variable
Style
Fixed Upblast
Type
Upblast Exhausters

Scratch and Dent Canarm ALX120-UD050EC Details

  • New; never used
  • Out of original packaging
  • Scratching on top and on side on unit

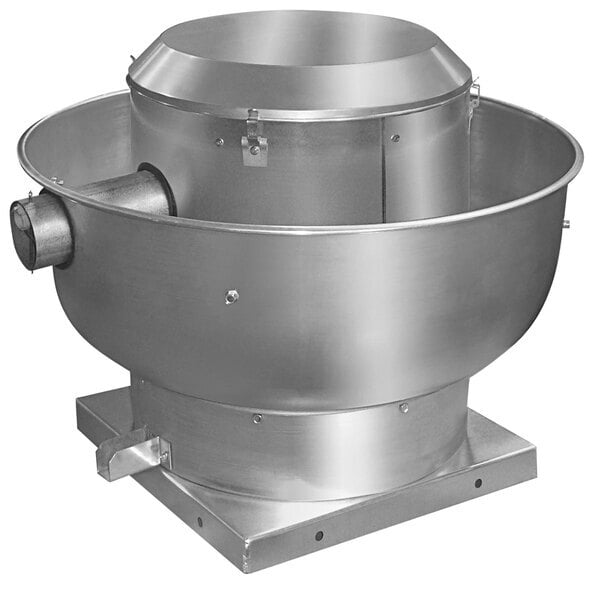

Enhance the air quality in your warehouse, office, factory, kitchen, or commercial facility with this Canarm upblast exhauster! This versatile unit works to exhaust air and provide ventilation in your establishment. Plus, the motor has up to 82" efficiency to reach your ideal speed every time. For energy-efficient use, the EC motor provides 70% energy savings compared to traditional PSC motors. The speed is easily adjustable using the onboard variable speed controls, or it can also be controlled remotely with a 0-10V potentiometer (sold separately). The onboard variable speed controls allow for simple setup and balancing with an LED display. When used with the potentiometer, it can be controlled up to 50' away, providing convenient access even when you are not near the unit.

This rugged unit mounts directly to the wall, or it can be installed on your rooftop. For rooftop applications, a 15" opening is required. This exhauster includes a durable spun aluminum construction that does not chip, rust, or peel for long-lasting use. The 12 1/4" aluminum wheel is inclined backwards to exhaust air efficiently, and it's non-overloading to provide consistent and safe use. It boasts a 1/2 hp direct-drive motor that delivers 325 CFM to 1,548 CFM with a maximum RPM of 1,800.

This unit requires a 120/240V, 1 phase electrical connection for operation. It must be hardwired; the cord and plug are not included. Please be sure to review any relevant fire codes for your area before ordering a ventilation system and understand the requirements for any equipment going under your hood, as this may change from area to area.

Overall Dimensions:
Width: 25"
Depth: 19"
Height: 19"

This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.

Attention CA Residents:
  • ETL, US & Canada

    ETL, US & Canada

    This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.

  • Hardwired

    Hardwired

    This product must be hardwired by a professional; it does not plug into a standard wall outlet.
