Scratch and Dent Amtrol Extrol SX-60V 32 Gallon Vertical Hydronic Expansion Tank
Item number 34a390321MFR number 390321
Quick Shipping
Usually ships in 1 business day
Not eligible for expedited shipping
Product Overview
- Prevents pressure build-up, saves energy, and reduces system maintenance
- Works with closed, non-potable, hydronic heating and chilled water systems
- Durable steel shell with a urethane topcoat for additional strength
- Operates at temperatures up to 260 degrees Fahrenheit
- Vertical, floor-standing design with a sturdy base
Other Products from this Line
$729.00/Each
$799.00/Each
$239.99/Each
$269.99/Each
$189.99/Each
$109.99/Each
$56.99/Each
Amtrol Extrol EX-3000-100 4.4 Gallon In-Line Hydronic Expansion Tank Kit with 1" Air Purger and Vent$116.99/Each
$69.99/Each
$74.99/Each
$37.99/Each
$128.99/Each
$869.00/Each
$899.00/Each
This is an outlet item
Any warranty information listed in the manual is void unless otherwise stated and we will not be able to accept any returns.
Return Policy
Please note that all items are sold as is, and all sales are final. To ensure that each product in WebstaurantStore Outlet will work correctly upon arrival, it is tested by an experienced technician prior to shipping. We recommend that you carefully read the product description, damage/use description, and other related product literature such as specification sheets and product manuals before placing your order.
Please inspect each item carefully when it arrives at your place of business. If you observe any damage not detailed in the description on this website that may have been caused during shipping, do not sign for the delivery and contact us ASAP.
Cart Policy
Because Outlet items sell quickly on a first-come, first-serve basis, simply placing the item in your shopping cart for checkout at a later time does not guarantee a "hold" on the item.
Warranty Policy
Note that Outlet products are sold without any warranty. If you have any questions or concerns about a product even after reading the description and product literature, please contact us.
- Quantity
- 1/Each
- Shipping Weight
- 20.62 lb.
- Height
- 48 Inches
- Diameter
- 15 Inches
- Capacity
- 32 Gallons
- Features
- Made in America
- Material
- Steel
- Maximum Pressure
- 100 PSIG
- Maximum Temperature
- 260 Degrees F
- Type
- Hydronic Expansion Tanks
- Water Inlet Size
- 1 Inch

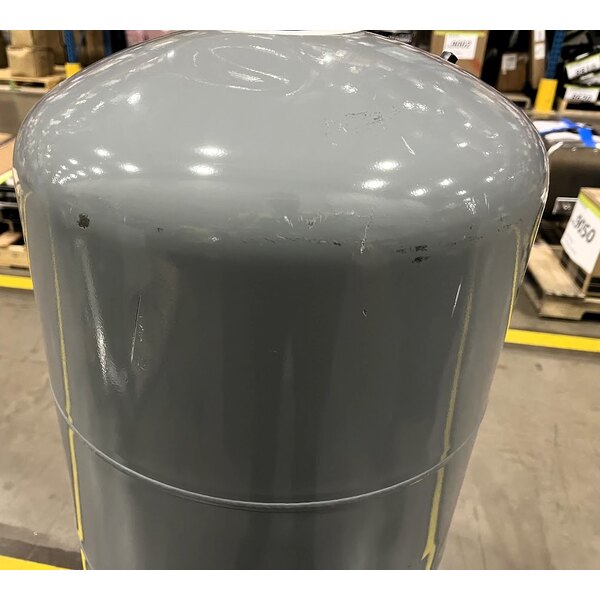

Scratch and Dent Amtrol 390321 Details
- New; never used
- Out of original packaging
- Bottom base is dented and bent
- Dent on the top edge
- Tape residue and scratches on the top panel
- Dent on the backside
- Scratches on the front
Prevent dangerous thermal expansion with this Amtrol Extrol SX-60V 32 gallon vertical hydronic expansion tank. This tank is designed for use in closed, non-potable, hydronic heating and chilled water systems. It accepts expanded water as the system temperature increases, which activates the diaphragm to keep pressure below the valve setting. This diaphragm is made of heavy-duty butyl/EPDM, and it also helps separate the system water from the tank's air charge. This handy tank saves energy, eliminates potential safety hazards, and reduces system maintenance. It can be used for propylene glycol applications with mixtures up to 50%.
This tank has an outer shell made of durable steel with a urethane topcoat for additional strength. It has a maximum operating temperature of 260 degrees Fahrenheit and a maximum working pressure of 100 PSIG. Plus, it has an ample 32 gallon capacity that can handle larger boiler systems. It has a floor-standing, vertical design with a sturdy base. It comes pre-charged with a 12 PSIG air charge, and it has a 1" NPTF water connection.
Overall Dimensions:
Diameter: 15"
Height: 48"
Capacity: 32 gallons
Attention CA Residents:
Made in America
This item was made in the United States of America.
1" Water Connection
This unit comes with a 1" water connection for water supply.
