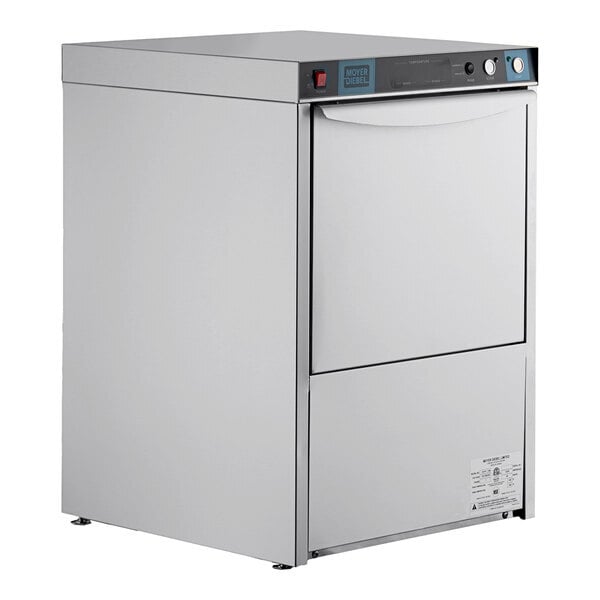

Scratch and Dent Moyer Diebel 201HT Undercounter High Temperature Dishwashing Machine with Booster - 208-240V, 6 kW
Item number 253201htMFR number 0013222
Customers Also Viewed
Quick Shipping
Usually ships in 1 business day
Product Overview
- 141 second cycle hour cleans 25 racks/hr using 1.8 gal/rack
- Built-in booster ensures 180 degree Fahrenheit rinse cycle
- Soft start feature prevents dishes and glassware from breaking
- Heavily soiled wares can be placed on an extended scrub cycle
- Includes self-diagnostic system to cut down on service calls
Shipping Restrictions
Works With
View All Items
$112.99/Case
$84.49/Case
$109.99/Each
$99.99/Case
$138.49/Case
$189.99/Each
$186.99/Case
$68.49/Case
This is an outlet item
Any warranty information listed in the manual is void unless otherwise stated and we will not be able to accept any returns.
Return Policy
Please note that all items are sold as is, and all sales are final. To ensure that each product in WebstaurantStore Outlet will work correctly upon arrival, it is tested by an experienced technician prior to shipping. We recommend that you carefully read the product description, damage/use description, and other related product literature such as specification sheets and product manuals before placing your order.
Please inspect each item carefully when it arrives at your place of business. If you observe any damage not detailed in the description on this website that may have been caused during shipping, do not sign for the delivery and contact us ASAP.
Cart Policy
Because Outlet items sell quickly on a first-come, first-serve basis, simply placing the item in your shopping cart for checkout at a later time does not guarantee a "hold" on the item.
Warranty Policy
Note that Outlet products are sold without any warranty. If you have any questions or concerns about a product even after reading the description and product literature, please contact us.
- Quantity
- 1/Each
- Shipping Weight
- 207 lb.
- Width
- 24 Inches
- Depth
- 25 Inches
- Height
- 33 3/4 Inches
- Amps
- 45 - 50 Amps
- Hertz
- 60 Hz
- Phase
- 1 Phase
- Voltage
- 208/240 Volts
- Booster Wattage
- 6 Kilowatts
- Features
- Booster Heater Included Field-Convertible (Electrical) NSF Listed
- High or Low Temp
- High Temp
- Horsepower
- 1 hp
- Minimum Water Inlet Temperature
- 110 Degrees F
- Number of Wash Cycles
- 1 Wash Cycle
- Plug Type
- Hardwire
- Racks Per Hour
- 25
- Type
- Undercounter Dishwashers
- Wash Cycle Time
- 141 Seconds
- Water Temperature
- 150 - 180 Degrees F
- Water Usage
- 1.8 Gallons Per Rack
Scratch and Dent Moyer Diebel 0013222 Details
- New; never used
- Out of original packaging
- Scratches on the front door handle
- Scratches on the top panel
- Scratches on the right side panel
- Right side panel is dented
When you need clean glasses and dishware but you're low on space, this Champion 201HT high temperature undercounter dishwashing machine is the perfect solution! This high temperature dishwasher is designed to keep your dish room productive and efficient, able to tackle up to 25 racks per hour on a 141 second cycle. A built-in booster raises incoming water temperature 70 degrees Fahrenheit, so a final rinse of 180 degrees Fahrenheit is achieved.
It boasts a 15 3/4" high door opening to allow easy loading and unloading and comes with plenty of smart design features to help you spend more time helping customers and less time doing the dishes. For example, its soft start functionality works to prevent breakage and chipping, while the Rinse Sentry feature extends the rinse cycle to ensure the final rinse is at 180 degrees Fahrenheit to meet health code standards. For extra soiled wares you can place the unit into scrub mode, which will extend the wash cycle for deeper cleaning. A counter-balanced, double skin door makes for an overall quieter operation. A 208-40V electrical connection is required for operation of this unit. It comes standard as a single phase model, but can be field-converted to accommodate a 3 phase setup.
Overall Dimensions:
Width: 24"
Depth: 25"
Height: 33 3/4"
This Item Ships via Common Carrier. For more information and tips to help your delivery go smoothly, click here.
Attention CA Residents:
NSF Listed
This item has been certified by NSF International to meet applicable product standards on public safety, health, and / or the environment.
ETL, US & Canada
This product has been certified by ETL, a division of the Intertek Group, to meet applicable electrical product safety standards required for use in the United States and Canada.
Hardwired
This product must be hardwired by a professional; it does not plug into a standard wall outlet.
Field Convertible (Electrical)
This equipment’s electrical specifications can be modified in the field during installation by a qualified service technician. Be sure to read item content and literature for the specific details of what voltage and phase configurations are possible.
